Starlinger, Complete Bag Production Line, 2020, 4,200,000 Pcs/Month, 150 Tons/Month

Starlinger, Complete Bag Production Line, 2020, 4,200,000 Pcs/Month, 150 Tons/Month

Description

  1. Overview
    1. Complete production line for pp yarn tape extrusion and bag manufacturing.
    2. Extrusion capacity of 250 tons per month, with 100 tons available for extra production originally planned for square big bags with flat weaving picanol machines (not included but available in another offer).
  2. Process Steps
    1. Extrusion of pp yarn tape: tape stretching line starex 1600 es.
    2. Winding: winding machine lintape 200lx.

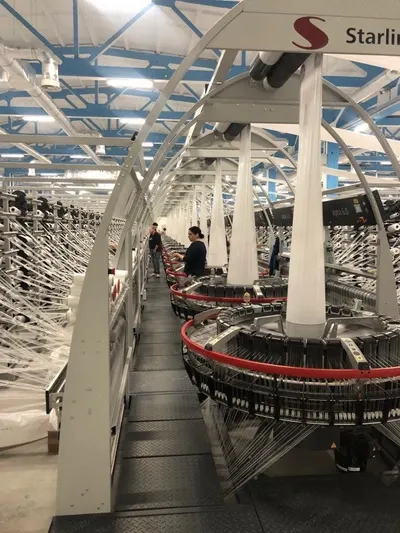

    3. Weaving: circular looms alpha 6.0 for bags production.
    4. Coating: coating line lamitec lx for bag lamination.
    5. Printing: roll to roll printing machine dynaflex dx 6.
    6. Conversion: conversion line ad starkon hx.
    7. Slitting: strip slitting machine slittec 700 ic x star.
    8. Additional machines for sewing, compressors, trolleys, and other needs for complete process.
  3. Included Equipment
    1. 1 tape stretching line starex 1600 es with optional equipment: gravimetric batch blender gravitec 705, extruder e-120 td 33d with melt pump, edge trim recycling with feeding screw, stretching unit with 8 godets (2n 4h 2c) including protecting cover and hot oil system.
    2. 288 winding machines lintape 200lx.
    3. 1 water chilling unit 3hm 280 st.
    4. 25 circular looms alpha 6.0 with optional equipment: 25 additional weaving rings.
    5. 3 circular looms alpha 6.0 with optional equipment: 3 additional weaving rings, 3 second surface winders above the other 576 positions, 3 ultrasonic slitting devices bilateral (decoup).
    6. 5 circular looms alpha 6.0 with optional equipment: 5 two creels 720 positions, 5 grommer band version 720 positions, 5 additional weaving rings, 5 unfolding devices and surface winders, 5 ultrasonic slitting devices center (decoup).
    7. 1 coating line lamitec lx with optional equipment: 1 winding shaft 4", 1 winding shaft 8", 1 spreader roller for flat fabric, 1 d-rsr auto scrap recycling system.
    8. 1 water chilling unit 3hm 230 st.
    9. 1 roll to roll printing machine dynaflex dx 6 ad x stsr with optional equipment: 1 unwinding shaft 4", 1 video inspection system, 1 viscosity control, 1 color quick change.
    10. 1 conversion line as x starkon hx with optional equipment: 1 microstar + bilateral micro perforation (additional).
    11. 1 strip slitting machine slittex 700 ic x star.
    12. 1 air flow tester.
    13. 2 fully automatic air compressor units ga-ff 26+ kw.
    14. 1 conversion line multikon kx with optional equipment: 1 configuration sewing machine, 1 top feed sewing machine, 1 trolleys for quick change.
