NovaStar, CR187, Fiber Mixing Machine, Weighing Feeder and Semi-Worsted Carding Machine, 900mm Working Width (New)

NovaStar, CR187, Fiber Mixing Machine, Weighing Feeder and Semi-Worsted Carding Machine, 900mm Working Width

Description

  1. Overview
    1. Fiber opening machine for wool, velvet, plant fiber, and chemical fiber.
    2. Removes debris and adds emulsified oil (wool oil) to make fiber fluffy and mixed evenly.
    3. Increases softness and lubrication, eliminates and reduces static electricity, ready for dehairing.
  2. Specifications
    1. Machine type: right hand.
    2. Working width: 900 mm.
    3. Dimension (main engine): 2315 mm x 1650 mm x 1250 mm.
    4. Weight: about 2 tons.
    5. Dragging power - main engine: 5.5 kW, 730 r/min.
    6. Dragging power - fan: 4 kW, 1400 r/min.
    7. Dragging power - refueling device: 1.1 kW, 1440 r/min.
    8. Feeding form: feeding flat curtain.
    9. Parts of speed - feed roller: 120 mm, 21 r/min.
    10. Parts of speed - cylinder: 650 mm, 347 r/min.
    11. Parts of speed - doffer: 400 mm, 834 r/min.
    12. Parts of speed - working roller: 158 mm, 18 r/min.
    13. Parts of speed - stripping roller: 120 mm, 22 r/min.
    14. Output: 50 to 400 kg/h.
  3. Control System
    1. Uses complete set of U.S. technology imports, with high anti-jamming capability and stability.
    2. Logic operation and output control using PLC made by Mitsubishi, called "permanent machine".
    3. Suitable for domestic and imported carding machines, easy to operate and learn; general workers with basic electrical knowledge can manage and maintain the equipment.
    4. Cancels original mechanical lever system; wool baffle and storage hopper use pneumatic control, opening and closing accurately; leveling comb and feeding are independent transmission; flexible control; lattice more convenient to change groups; high precision sensor sampling, multistage weighing, multistage feed speed; feed speed adjusts automatically according to wool in storage; pre-feed function for more convenient and faster group changes.
    5. Humanized screen for easy adjustment viewing and checking all processes, statistical data, periodic data; includes wool tips and alarm; allows direct observation of operation of various parts and stages; has manual and automatic function, shunting convenient and instant.
  4. Related Indicator Data
    1. Display interface: dual display (phosphor screen, touch screen).
    2. Display accuracy: 1/10000.
    3. Resolution: ±0.1 to ±1 g.
    4. Feeding accuracy: ±2 g (under normal circumstances).
    5. Range of removing dander: 0 to 45000 g.
    6. Weighing range: 0 to 999 g or more.
    7. Working condition: temperature -10 to 45 °C, humidity 10% to 90%, no condensation, no serious dust.

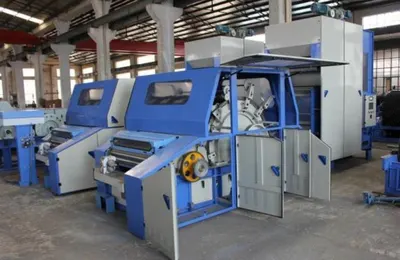

  5. Semi-Worsted Carding Machine Overview

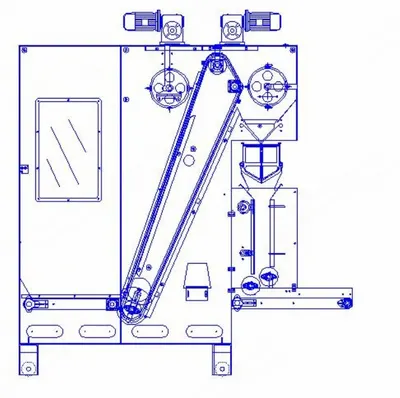

    1. Equipped with a vibratory volumetric and weighing wool feeding machine with two weighing systems.
    2. Can be used for semi-worsted and worsted spinning.
    3. Suitable for any loose fibers such as sheep wool, cashmere, rabbit hair, camel hair, alpaca hair, cotton, silk, chemical fiber, or blended fibers.
    4. Fiber length should be less than 75 mm.
  6. Semi-Worsted Carding Machine Specifications
    1. Machine type: right hand (face the mechanical direction of the net, the main drive is on the right hand).
    2. Cylinder width: 1020 mm.
    3. Dimension - main engine: 3300 mm x 2000 mm x 1800 mm.
    4. Dimension - faucet: 800 mm x 1000 mm x 1500 mm.
    5. Dimension - feeder bucket: 2840 mm x 1500 mm x 3100 mm.
    6. Weight - main engine: about 4 tons.
    7. Weight - feeding machine: about 1.5 tons.
    8. Dragging power - main engine: 3.3 kW.
    9. Dragging power - randolph: 1.5 kW.
    10. Dragging power - hopper feeder: 0.75 kW.
    11. Dragging power - feeder: 1.5 kW and 1.5 kW.
    12. Output: 10 to 25 kg.
