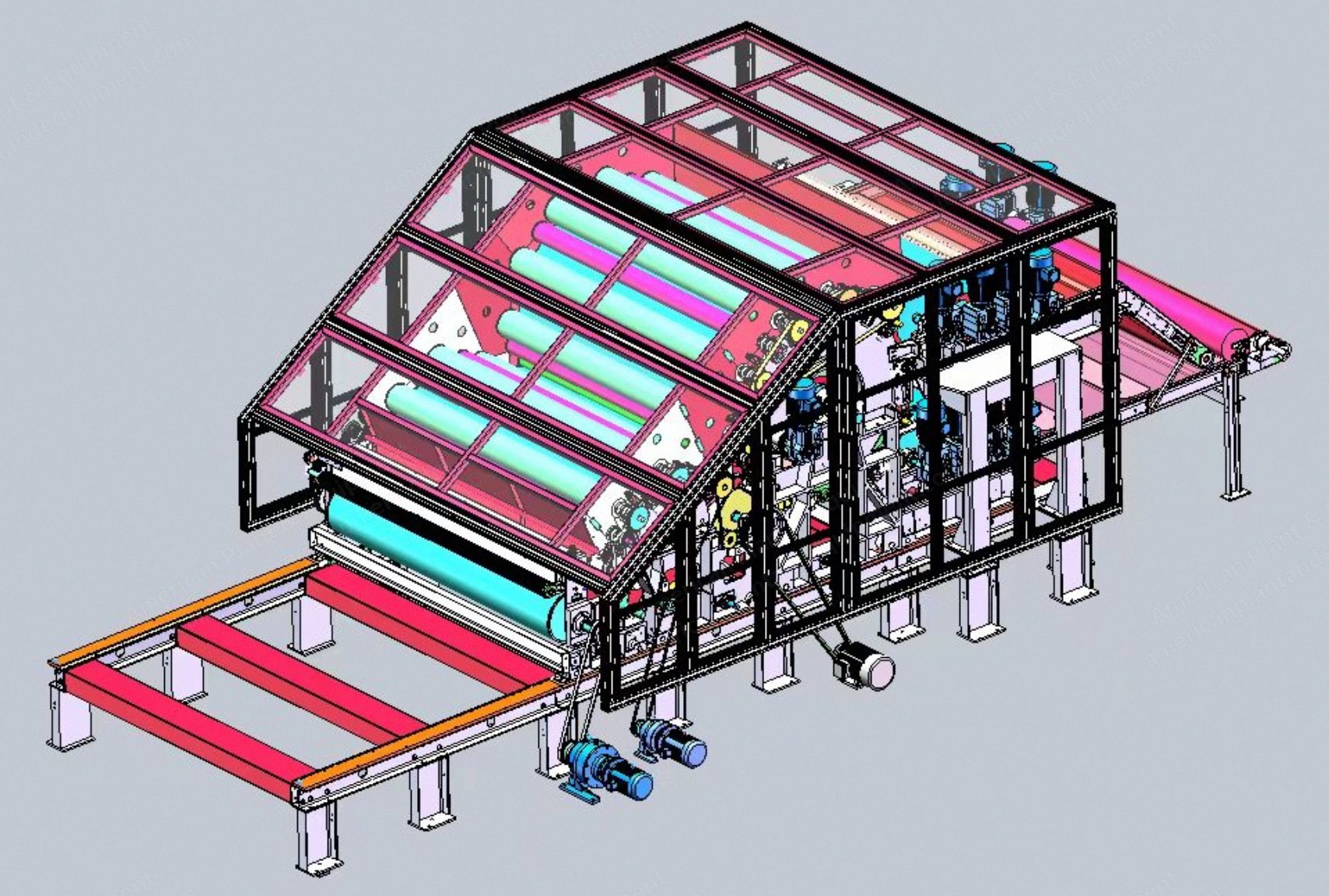

NovaStar, High Speed Carding Machine, 3500mm Working Width, 600 kg/h Capacity (New)

NovaStar, High Speed Carding Machine, 3500mm Working Width, 600 kg/h Capacity

Description

  1. Overview
    1. Fiber is sent from front cylinder to middle doff and main cylinder through rollers, each cylinder has 4 to 5 sets of carding rollers, after many times of carding then feed to the curtain on the cross lapper.
    2. Working principle: even layer through multiple carding, wipe off impurity in the carding process, to be even layer.
    3. This carding machine is fifth carding machine, prototype as CR188 carding machine, omni seal and pressurization system can remove questions of stuck at feeding part, hanging fiber.
  2. Specifications
    1. Working width: 3500 mm
    2. Mechanical type: double cylinder double doffer four clutter
    3. Capacity: 600 kg/h
    4. Output line speed: 90 m/min
    5. Main cylinder diameter 1500 mm with 5 sets working zones
    6. Four rollers feeding with frequency control, installed with anti-metal alarm and auto-reverse function
    7. Installed with 7 sets frequency changer all is individual control, respectively to control the feeding, cylinder, doffer, inner clutter, outer clutter, output lattice
    8. Two layers output, the lattice is PVC lattice
    9. Top cover with PVC material, and lifting with air pressure
    10. 4 kW motor suction edge fan on each side of the machine
    11. Main roller size: input roller 413 mm diameter (1), open roller 413 mm diameter (1), bosom cylinder 820 mm diameter (1), main cylinder 1500 mm diameter (1), up and down doffer 550 mm diameter (2), work roller 219 mm diameter (8), strip roller 158 mm diameter (9), rimq roller 88 mm diameter (4), mix roller 260 mm diameter (4), strip net roller 158 mm diameter (2)
    12. Stand height: 75 cm, step platform width: 1 m
    13. Main components: frame, stand platform, step, roller, grid, housing, suction device
  3. Kinds Of Raw Materials
    1. PET and PP recycled flexi PET
    2. PET - virgin and recycled granules
    3. PP - virgin and recycled granules
