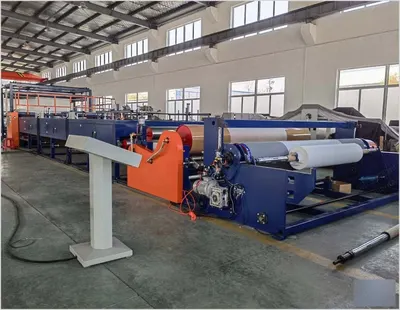

NovaStar, YC115, New, Roller Width 2300mm, Speed 15-35 m/min, Infrared Electric Heating (New)

NovaStar, YC115, New, Roller Width 2300mm, Speed 15-35 m/min, Infrared Electric Heating

Description

  1. Overview
    1. This machine is specially designed for laminating non-woven fabrics or woven fabrics with non-woven fabrics, interlining fabrics, knitted fabrics and other carpet materials by scatter hot melt adhesive powder.
    2. Used for: automotive interiors, carpets, filter materials, clothing, shoes and hats, luggage and other industries.
    3. Speed is 15 to 35 meters per minute depending on the weight added.
  2. Functional Features
    1. Width of the powder need to be within 2300 mm.
    2. Designed linear speed is 2-25 m/min, can adjust the speed according to the actual thickness and fusing point of the cloth, fusing point of the glue powder and the weight of adhesive powder.
  3. Work Process
    1. Unwinding - powder scatter - oven curing - cold calender – edge cut - wind.

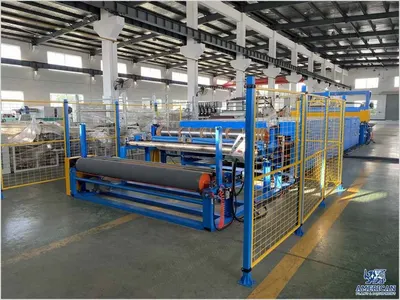

  4. Unwind Unit
    1. Unwind diameter: up to Φ1000 mm.
    2. Two sets of magnetic powder tension controller.
    3. Core diameter: 76 mm (3.).
    4. Roll weight: up to 200 kg.
    5. Roller width: up to 2300 mm.
    6. Substrate: nonwoven (weight 100 to 300 gsm).

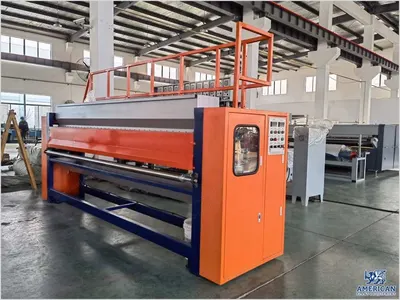

  5. Powder Scatter Unit
    1. Powder adhesive material: EVA hot melt adhesive, PE.
    2. Scattering weight: 20~200 g/m².
    3. Scattering width: 200-2300 mm.
    4. Powder recycling: will connect with bottom of powder hopper, collect extra powder into bag for recycle use. Collect and classify carbon particles and dust.
    5. Size of powder: #40- #100.
    6. Scatter design speed: 5-15 m/min (according to scatter weight and powder melt temperature).

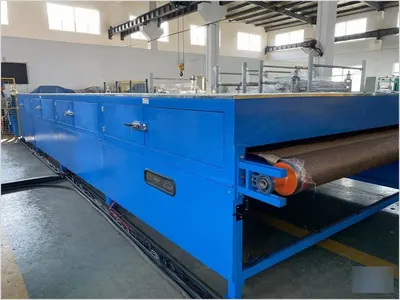

  6. Electric Oven Unit
    1. Oven length: 4 m x 2 sections.
    2. Heating of oven: 2 sections of infrared electric heating.
    3. Oven temperature control: during normal production, the hot air temperature in the oven shall not be higher than 120 °C, the accuracy shall be ± 3 °C, the temperature of two sections shall be controlled independently and can be set and adjusted.
    4. Substrate deviation correction: EPC photoelectric deviation correction is set in the oven.
    5. Temperature control: temperature set through control panel independently for each zone.
    6. Insulation materials: 80 mm thickness aluminum silicate insulation material.
  7. Cutting
    1. Final trimmed width: 2300 mm.
    2. Blade quantity: 3 pcs.
    3. Cutting knife: circular hardened sharp knife (replaceable).
  8. Cold Calender and Wind Unit (Standard Type)
    1. Two cold water roller: chiller supplied by customer.
    2. Cold roller diameter: Ø299 mm.
    3. Cooling capacity: capacity to reduce adhesive temperature below 30 °C, at maximum working speed and weight.
    4. Wind roll weight: up to 200 kg.
    5. Width: up to 2300 mm.
    6. Diameter: up to 800 mm.
    7. Core diameter: 76 mm (3.).
