Description
-Including the lifting of the cars to feed the shredder
-Cannot be fed by conveyor, cars must be lifted by crane
Details:
Part I. Shredder Technical and Features
1. Shredder Description of Technical Parameters
# | Machine Model | Features | Remarks | |
Quantity /Parameter | Unit | |||
1 | Double Shaft Shredder | Number of knife: 20 pcs. | Size Φ750 x 120mm (OD. x T) | 9Cr2Mo-detac hable type |
2 | Number of spacer: 20pcs. | Size Φ450 x 120mm (OD. x T) | Q345 | |
3 | Number of shaft: 2 pcs. | Size Φ320 xx 3600mm (OD. x T) | 40Cr | |
4 | Shredder Chamber Inside Dimension | 2000 x 1500mm (L x W) | ||
5 | Main Shaft Speed | 8 rpm | ||
6 | Out Put Product Size | 100 mm | ||
7 | Motor Power | 55 kW x 2 sets | ||
8 | Reducer | P20 planet model x 2 sets | ||
9 | Out Put Capacity | 12.000 kgs/hour | ||
Voltage 220V/380V/415V/440V or refer client requirement | ||||
Dimensions 550 x 2200 x 3000 L x H x W Weight 30.000 kgs | ||||
2. Main Components Part
# | Item | Origin | Image |

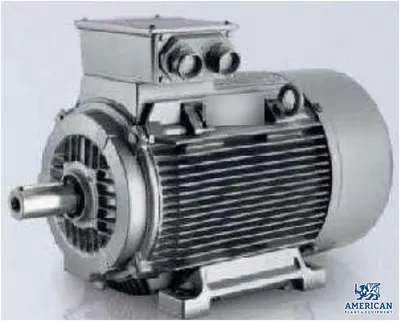

1 | Main Motor | Siemens/Wannan | |
2 | Gear Reducer | Tongli | |

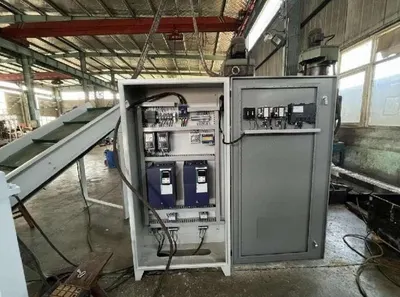

3 | Electric Part | Schneider | |

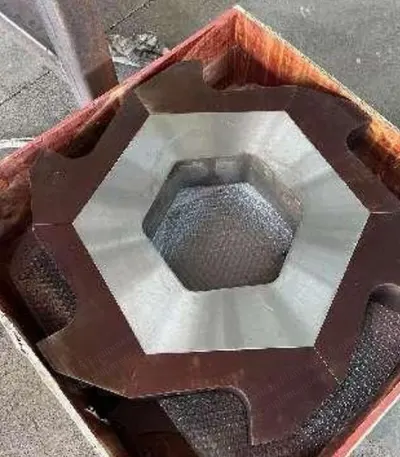

4 | Blade Material | 9Cr2Mo-material with excellent toughness and abrasion resistance. HRC 55-58°C |
|
5 | Shaft Material | 40Cr - material has good comprehensive mechanical properties, good low temperature impact toughness and low notch sensitivity. HB280-320 |
|
7 | Controller | Siemens touch screen control panel PLC - easy to operate (in English). |
|
8 | Bearing/Coupling | Harbin |
|
Optional (Extra Cost) Part
1 | XP Motor | Dust-proof and explosion-proof motor | |
2 | XP Controller | Dust-proof and explosion-proof Electric Cabinet |
|
3 | Input or Putput Conveyor | Customer must request as needed |
3. Machine Mechanical Part
I. Design and Structure
Shredder Main Body View Advantages Heavy moving knife, high crushing efficiency moving knife and fixed knife are cast alloy steel, strong, long service life,iron frame plate thick, high torque resistance, very strong,easy to adjust, low maintenance cost, economical and durable. The production is calculated theoretically, and the specific use should be determined according to the actual density and shape of the crushing material. |
Shredder Chamber Unit 1. Rotary blade Users can customize the shredding machine chambers of different sizes according to the production requirements of different materials. |

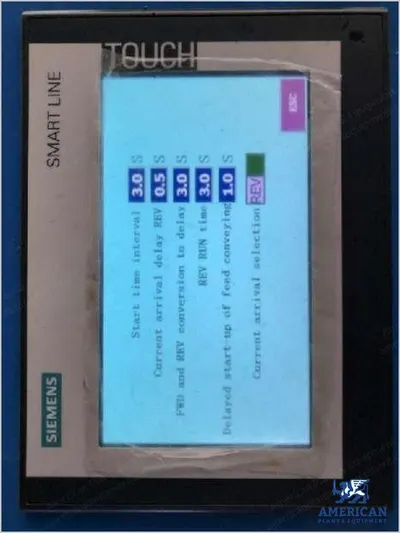

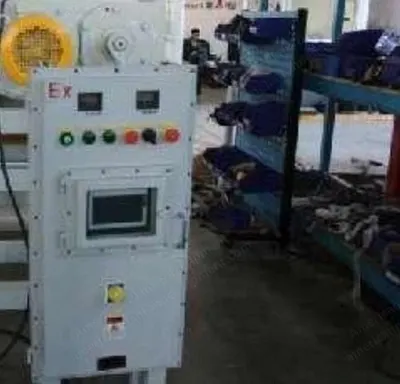

Control Panel Details 1. The display screen is a 7-inch Siemens touch Smartline series, with precise touch and real-time control. 3. The device will automatically reverse when it encounters jammed material during operation, ensuring that the machine will not damage the motor overload. |
Part II. Final Machine Photographs
Shredder Chamber
Intelligent design, saving energy consumption under the premise of reaching the production capacity required by customers.

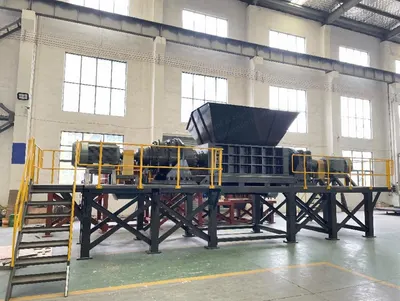

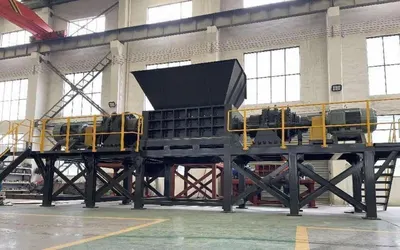

Left Front View
Right Front View

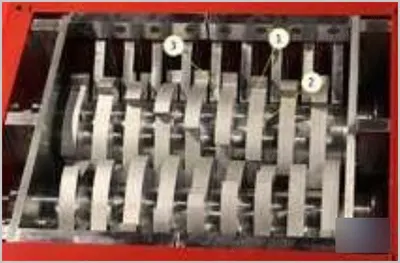

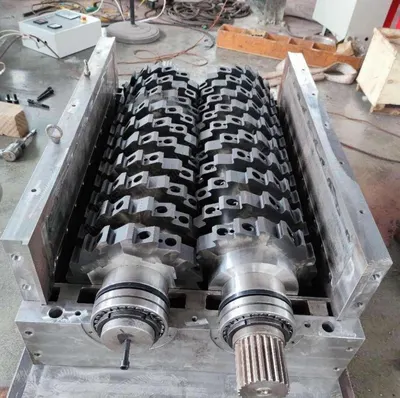

Chamber Inside (Detachable Blade)
Detachable type blade (less labor cost on future blade change, when replacing new blades, just need to change above part by loosening and tightening bolts, saving time)
Blade detail detachable head type: ask for picture.
Shredder Shaft
It is manufactured by a precision machining center to ensure precision, and easily shreds materials with the shredder blade.

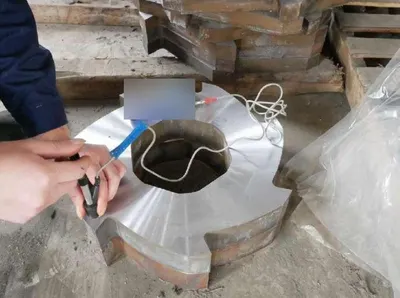

Blade is of high-quality materials, strict processing and testing, to ensure the hardness and accuracy of the blade, extends the blade life and sharpness.

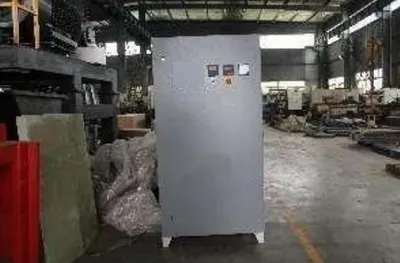

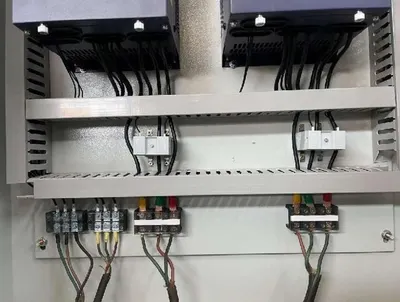

High Quality Electric Cabinet

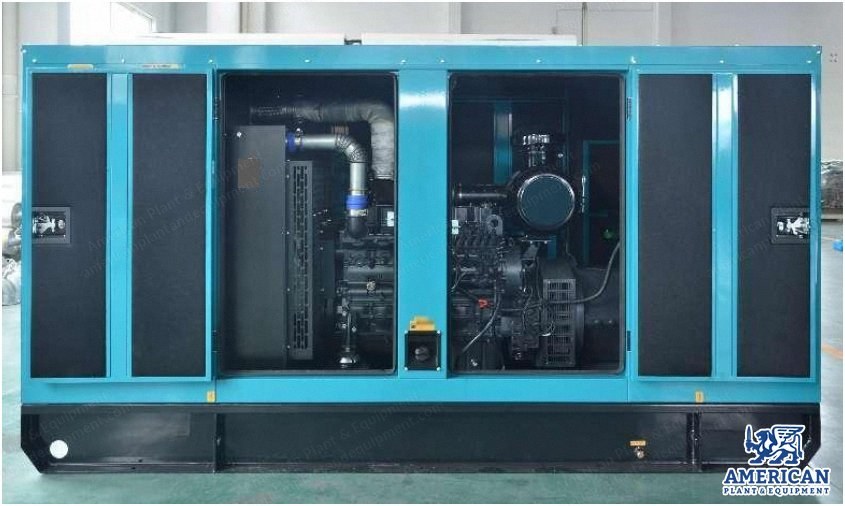

Low noise diesel generator-200kW Weichai 50Hz WP10D238E200 with Hengsheng HSJ274K and Smartgen HGM6110 silent type (pictures available).
Quantity: 1
