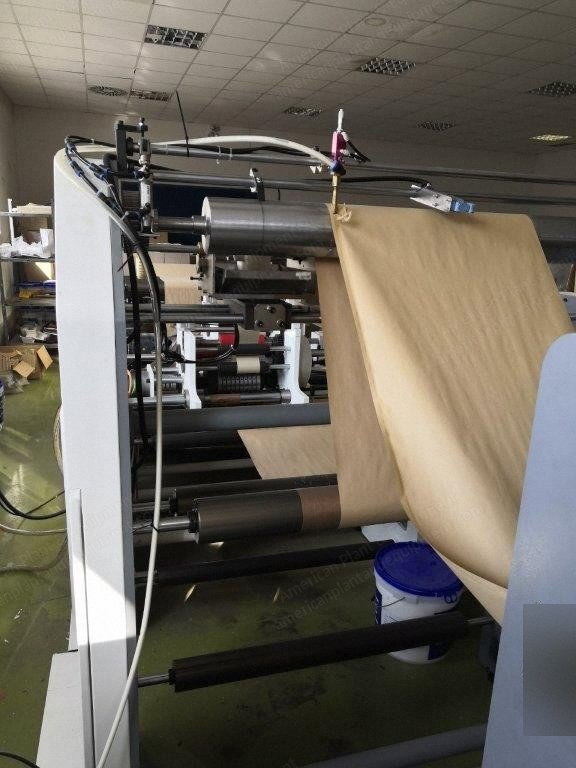

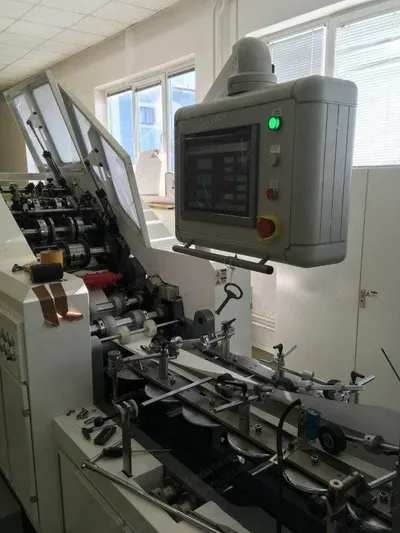

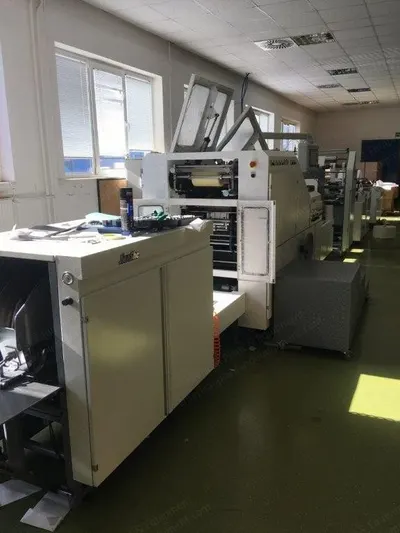

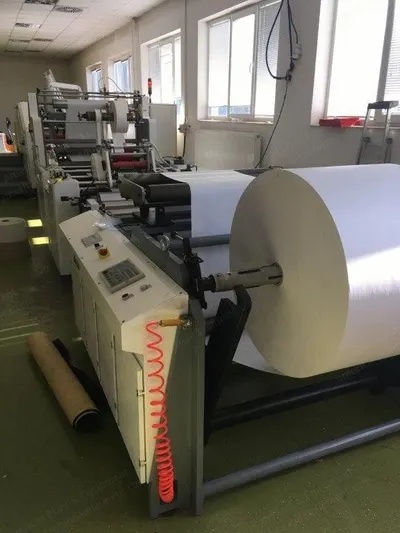

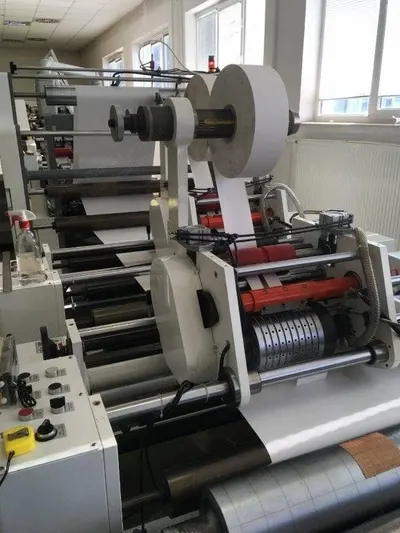

Fangbang, ZD-FJ11-P, Paper Bag Making Machine, 240 bags/min, 110-280mm Bag Width, 60-150mm Bottom

Fangbang, ZD-FJ11-P, Paper Bag Making Machine, 240 bags/min, 110-280mm Bag Width, 60-150mm Bottom

Description

  1. Overview
    1. This machine can produce paper bags of wide-range sizes.
    2. It can produce not only small-size food bags, but also big-size shopping bags.
    3. This machine can make various kinds of paper bags having different bottom styles.
    4. This machine is designed to manufacture square bottom paper bags without handles from paper roll, and it is an ideal equipment for producing various sized paper bags fast.
    5. By implementing steps including paper feeding, tube forming, tube cutting and bottom forming inline, this machine can effectively save labor costs.
    6. The equipped photoelectric detector can correct cutting length, so as to ensure cutting precision.
    7. The equipped Siemens plc system ensures that the machine can perform quickly and stably.
    8. This machine can process very thin paper, as well as produce paper bags very fast, thus this machine is especially suitable for being applied in food industries.
  2. Specifications
    1. Paper width: 370~890 mm
    2. Max roll diameter: 1200 mm
    3. Core inner diameter: 76 mm (3")
    4. Paper weight: 50~150 g/m²
    5. Tube length: 270~530 mm
    6. Bag width: 110~280 mm
    7. Bottom width: 60~150 mm
    8. Speed: 240 bags/min
    9. Power: 18.5 kw
    10. Weight: approx. 8000 kg
    11. Dimensions: L9000 × W3300 × H1900 mm
