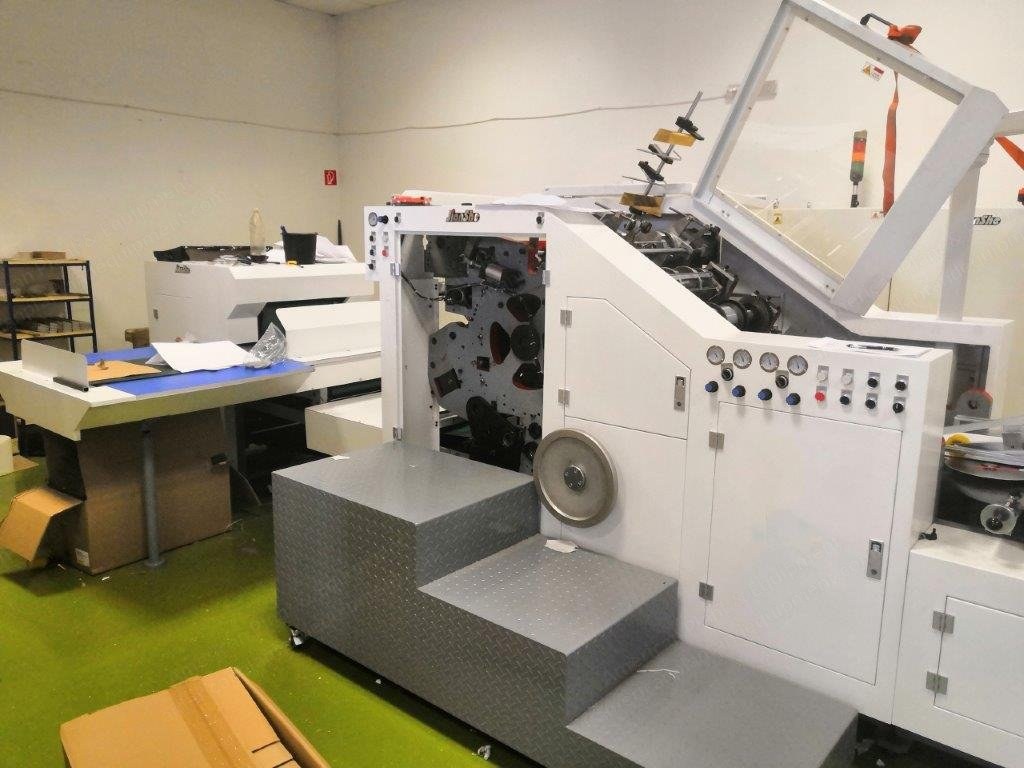

Fangbang, ZD-FJ18-P, Paper Bag Making Machine, Square Bottom, 180 bags/min, 260-450mm Bag Width

Fangbang, ZD-FJ18-P, Paper Bag Making Machine, Square Bottom, 180 bags/min, 260-450mm Bag Width

Description

  1. Overview
    1. This machine can produce paper bags of wide-range sizes.
    2. It can produce not only small-size food bags, but also big-size shopping bags.
    3. This machine can make various kinds of paper bags having different bottom styles.
    4. It is designed to manufacture square bottom paper bags without handles from paper roll, and it is an ideal equipment for producing various sized paper bags fast.
    5. By implementing steps including paper feeding, tube forming, tube cutting and bottom forming inline, this machine can effectively save labor costs.
    6. The equipped photoelectric detector can correct cutting length, so as to ensure cutting precision.
    7. The equipped Siemens PLC system ensures that the machine can perform quickly and stably.
    8. This machine can process very thin paper, as well as produce paper bags very fast, thus this machine is especially suitable for being applied in food industries.
  2. Specifications
    1. Paper width: 660 to 1230 mm
    2. Roll diameter: 1200 mm
    3. Roll core inner diameter: 76 mm (3)
    4. Paper weight: 80 to 170 g/m²
    5. Tube length: 270 to 530 mm
    6. Bag width: 260 to 450 mm
    7. Bottom width: 85 to 180 mm
    8. Production speed: 180 bags per minute
    9. Power: 18.5 kW
    10. Weight: approximately 10000 kg
    11. Dimensions: 9000 mm length x 3500 mm width x 1900 mm height
  3. Operational Details
    1. Paper from 80 to 170 g/m² can be used; the seller operated from 80 to 110 g/m² but notes thicker paper folds better.
    2. The height of the bag is determined by the minimum length of the tube.
    3. Example bag sizes produced: 240 x 100 x 340 mm and 360 x 150 x 420 mm.
    4. Bottom sizes made: 100 mm and 150 mm without any problem.
    5. There are 2 sheets in width: one is 12 cm (for bottom from smallest to 15 cm), the other is 14.5 cm (for bottom up to 18 cm).
    6. The width is given by the width of the sheet x 2; with the first sheet the minimum bag width is 24 cm, with the second sheet the minimum bag width is 30 cm, maximums given by the machine.
  4. Condition
    1. Used industrial machine in working condition.
  5. Included
    1. Machine as described with Siemens PLC system and photoelectric detector.
    1. Not specified.
