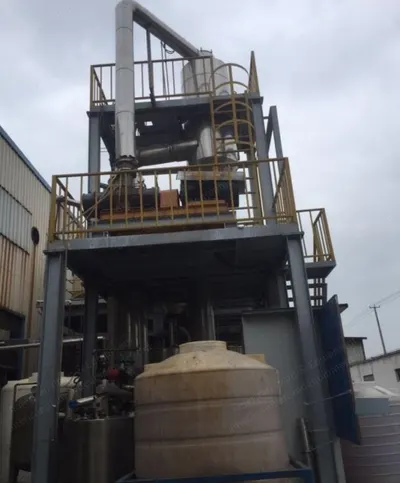

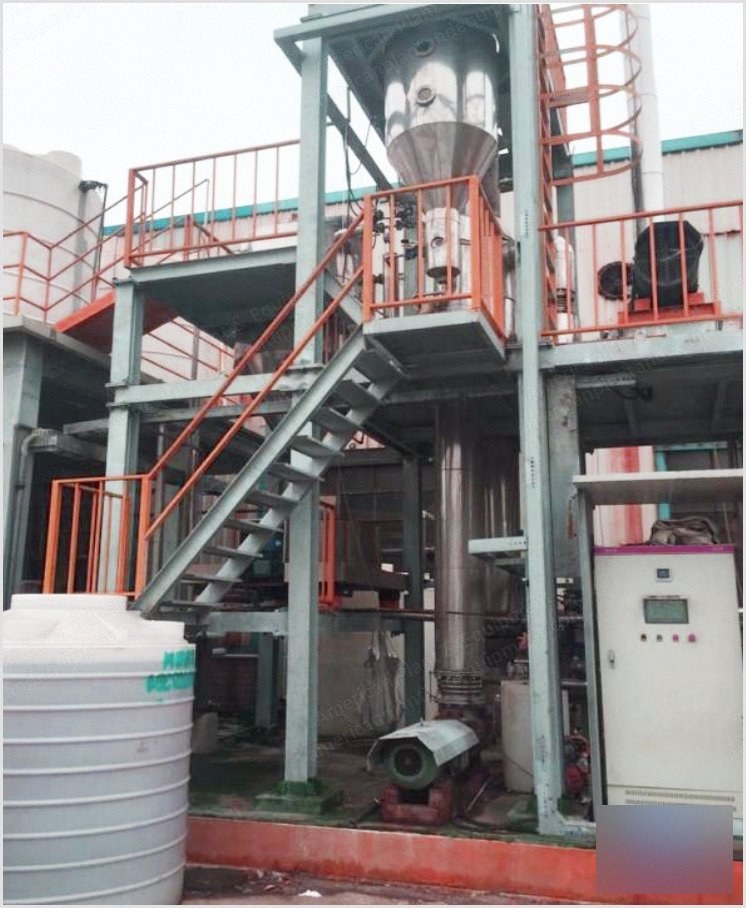

NovaStar, SE148, MVR Forced Circulation Evaporation Crystallization System, 1000 kg/h Evaporation Capacity, 110 kW (New)

NovaStar, SE148, MVR Forced Circulation Evaporation Crystallization System, 1000 kg/h Evaporation Capacity, 110 kW

Description

  1. Overview
    1. Description: Mvr forced circulation evaporation crystallization system.
    2. Evaporation capacity: 1000 kg/h.
    3. Feeding concentration: 3.5 to 25%.
    4. Discharge concentration: 70%.
    5. Heating temperature: 106 °c.
    6. Evaporation temperature: 90 °c.
    7. Power: 110 kw.
    8. Overall dimension: (lwh) ≈ 5000 × 2400 × 3800 mm.
  2. Equipment Main Part
    1. Plate heater, specification 1350 × 900 × 1650, material 2205, quantity 1.
    2. Separation room, specification φ1200 × 2500 × 6, material 2205, quantity 1.
    3. Plate preheater, specification 1145 × 600 × 1350, material 2205, quantity 1.
    4. Steam compressor, screw type, material 316l, quantity 1.
    5. Balance tank, specification φ1000 × 1250, material 2205, quantity 1.
    6. Condensate tank, specification φ1000 × 1500, material 316l, quantity 1.
    7. Centrifuge, flat centrifuge, material 316l, quantity 1.
    8. Platform, specification 4000 × 2000 × 2500, material q235-b, quantity 1.
  3. Pipeline, Valves
    1. Secondary steam pipeline, dn300/250, material 316l, quantity 1.
    2. Circulation pipeline, dn250, material 2205, quantity 1.
    3. Material pipeline, dn25, material 2205, quantity 1.
    4. Cleaning pipeline, dn25, material sus304, quantity 1.
    5. Condensate pipeline, dn25, material sus304, quantity 1.
    6. Valves, 1 set.
  4. Pump List
    1. Feed pump, 3 t/h, 30 m, 1.5 kw, material 2205, quantity 1.
    2. Forced circulation pump, 4803/h, 10 m, 15 kw, material 2205, quantity 1.
    3. Discharge pump, 2 t/h, 30 m, 1.1 kw, material 2205, quantity 1.
    4. Mother liquor return pump, 2 t/h, 30 m, 1.1 kw, material 2205, quantity 1.
    5. Condensate pump, 2 t/h, 30 m, 1.1 kw, material 316l, quantity 1.
  5. Control System
    1. Electric control cabinet, 1800/800/550, material q235/pes, quantity 1.
    2. Touch screen, 10 inch, quantity 1.
    3. Plc, s7, quantity 1.
    4. Meters, 1 set.
