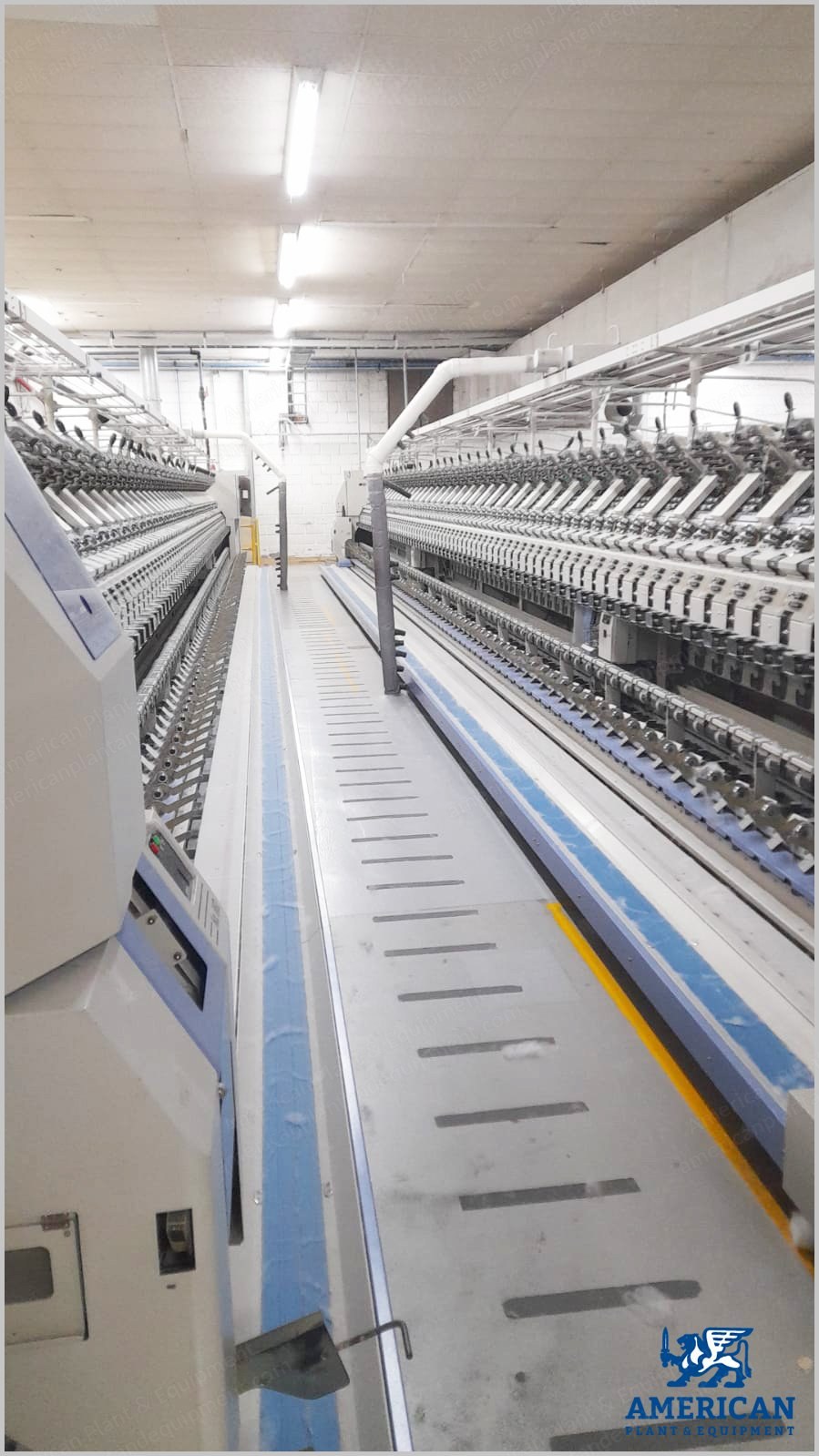

Muratec, Vortex 861 MVS, 2008/2009, 80 Spindles, Left Hand, 380V, 60 Hz

Muratec, Vortex 861 MVS, 2008/2009, 80 Spindles, Left Hand, 380V, 60 Hz

Description

  1. Overview
    1. Make: Muratec
    2. Model: Vortex 861 MVS
    3. Year: 1 x 2008 and 5 x 2009
    4. Machine hand: left hand
    5. Material process: viscose
  2. Spindle Specifications
    1. Number of spindles: 80
    2. Spindle type: super fat
    3. Spindle size: SF1.2 and SF1.3 mm, SF1.1 and SF1.2 mm, SF1.1 and SF1.2 mm
    4. Conicity: 4 °20
    5. Traverse: 6 in
  3. Feed and Doffer
    1. Feed can size: 18–20 in (4 lines)
    2. Doffers: 86D (1 set)
  4. Yarn Joining and Clearing
    1. Yarn joining: air splicer
    2. Number of splicers: 3 CRGs
    3. Clearer type: MSC (basic)
    4. Splicer nozzle prism: G2Z
    5. Nozzle type: eco NZL
  5. Attachments and Components
    1. Crown attachment: no
    2. Needle holder type: 2PZ L8-8.8
    3. Break draft wheel: 30T
    4. Waxing: with
  6. Control and Exhaust
    1. Control panel: VOS2
    2. Hot air exhaust: from mac to ceiling
    3. Waste fibre extractor: individual
    4. OHTC: individual
    5. OHTC make: Muratec
  7. Electrical
    1. Voltage: 380 V
    2. Frequency: 60 Hz
