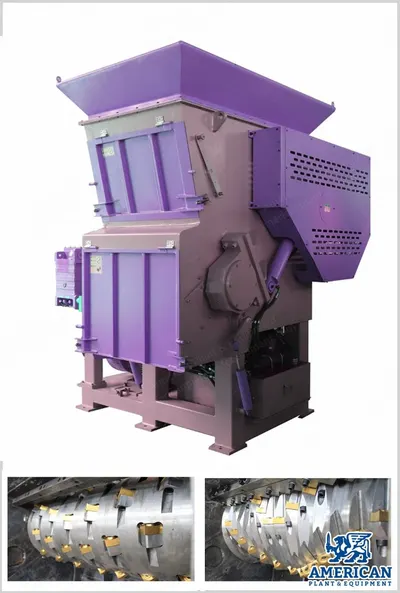

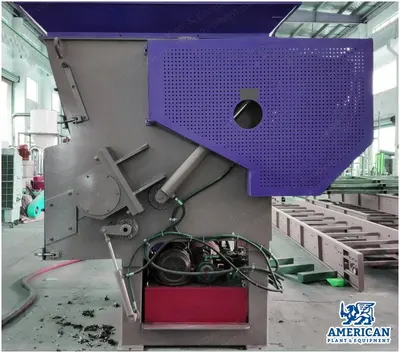

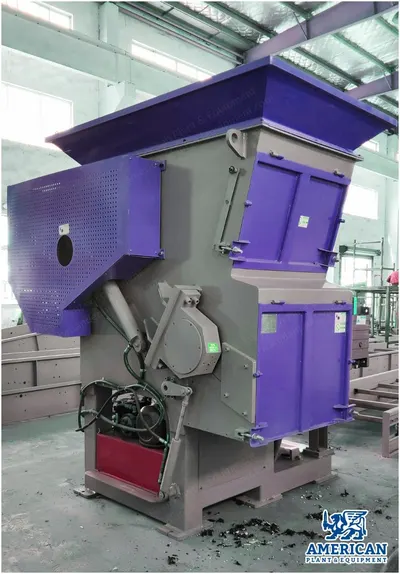

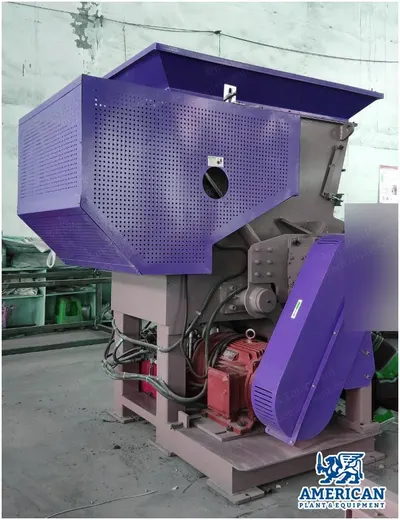

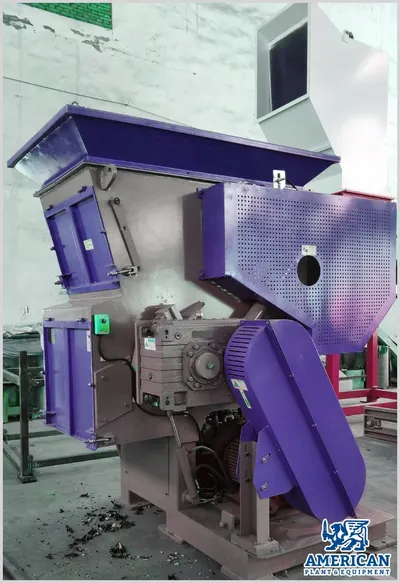

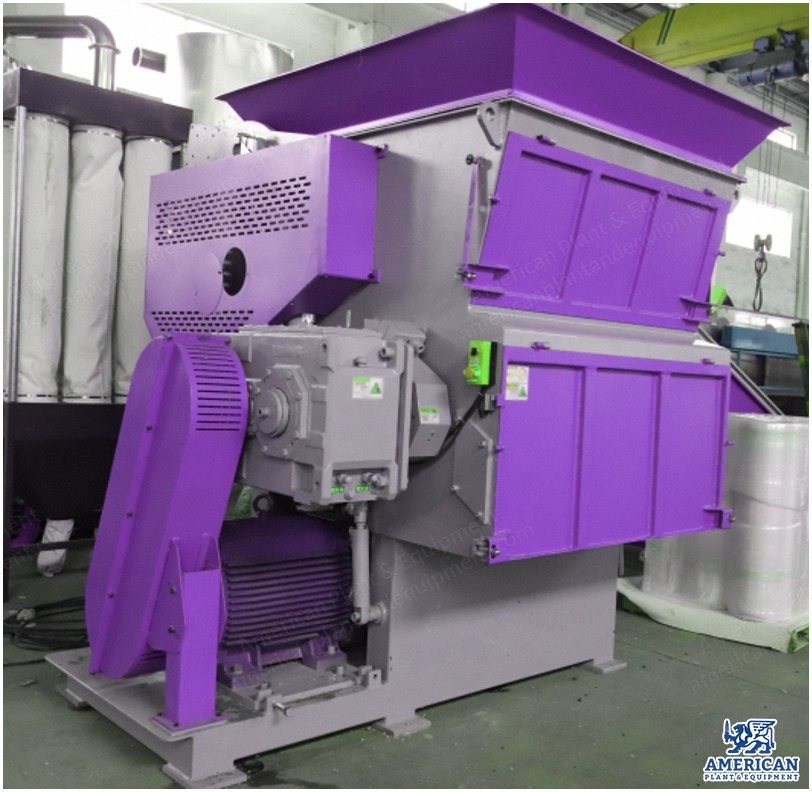

NovaStar, SG287, Single-Shaft Shredder, 1500mm Working Width, 2000 kg/h Capacity, 90 kW (New)

NovaStar, SG287, Single-Shaft Shredder, 1500mm Working Width, 2000 kg/h Capacity, 90 kW

Description

  1. Overview
    1. Swing arm single-shaft shredder with 1500 mm working width (60 inches).
    2. Output capacity: 2000 kg/h (2 metric tons / 4400 lbs per hour).
    3. Finished product size: approximately 25 x 25 mm clean pieces (1" x 1").
    4. Power supply: 480 V, three-phase, 60 Hz (or as per customer).
    5. Personnel needed: about 1 to 2 people per shift.
    6. Installed power: 1500 type, 97.5 kW; actual power consumption 60%.
    7. Water consumption: none.
  2. Application Scope
    1. Plastics – general plastics such as injection molding, extrusion, blown film, etc.
    2. Waste household appliances – TVs, washing machines, refrigerators, etc.
    3. Wire and cable.
    4. Aluminum – cans, aluminum shavings.
    5. Chemical fibers – carpets, fiberglass products.
    6. Paper, household waste, industrial waste.
    7. Secure destruction – imitations (counterfeits).
  3. Key Components
    1. Rotor blades – alloy titanium-plated movable knife head, very strong and wear-resistant.
    2. Hydraulic system – adjustable pressure and flow rate for different materials.
    3. Reducer – incorporates hard-tooth surface reduction gearbox, safe and stable, equipped with water cooling function.
    4. Screen – different screen mesh sizes meet customers' different discharge size requirements.
  4. Technical Specifications
    1. Motor power: 90 kW.
    2. Blade width: 1500 mm.
    3. Sieve plate hole diameter: 25 mm.
    4. Moving blades: 108 pieces.
    5. Inlet size: 1500 x 1800 mm.
    6. Output capacity: 2000 kg/h (2 t/h).
    7. Reducer: P2HH7-20-B (Guomao).
    8. Hydraulic power: 7.5 kW.
    9. Fixed blades: 8 pieces.
    10. Plate thickness: 30 mm.
    11. Rotation diameter: 457 mm.
    12. Rotating speed: 80 rpm.
    13. Blade raw material: D2.
    14. Electrical control: PLC.
    15. Total equipment weight: 8.5 tons.
    16. Dimensions: 3250 x 1950 x 2800 mm.
  5. Specifications
    1. Weight: 8500
