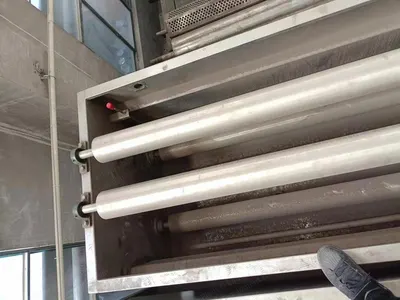

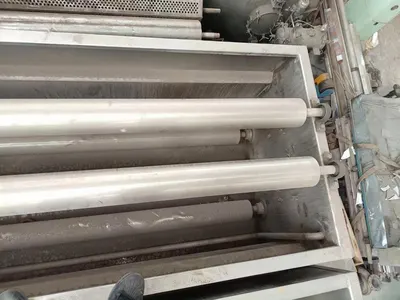

Dipping rolls in each wash box: 3 rolls above, 4 rolls below, roll diameter is 100 mm (3.93 inches)
Wash box length 1100 mm (same length for the vibrating wash box)
Every wash box with water spray nozzles (single pipe); wash box is stainless steel 316 construction; each box with direct steam injection pipe
Four nips, air pressure regulated from 3 to 5 tons, the last nip is 10 tons pressure; each wash box with individual pressure control; bottom nip roll is stainless, top nip roll is hard rubber, 75 to 80 shore hardness, thickness is 18 mm (0.70 inch), rubber is nitrile rubber; nip roll stand is made of stainless steel 201 construction
Each wash box with individual water fill valve (supplied by customer – see note)
The first three pads are 3 kW gearmotor, the last pad is 5.5 kW gearmotor controlled by compensator (dancer roll)
Washing chamber is made of stainless steel and thickness is 2.5 mm

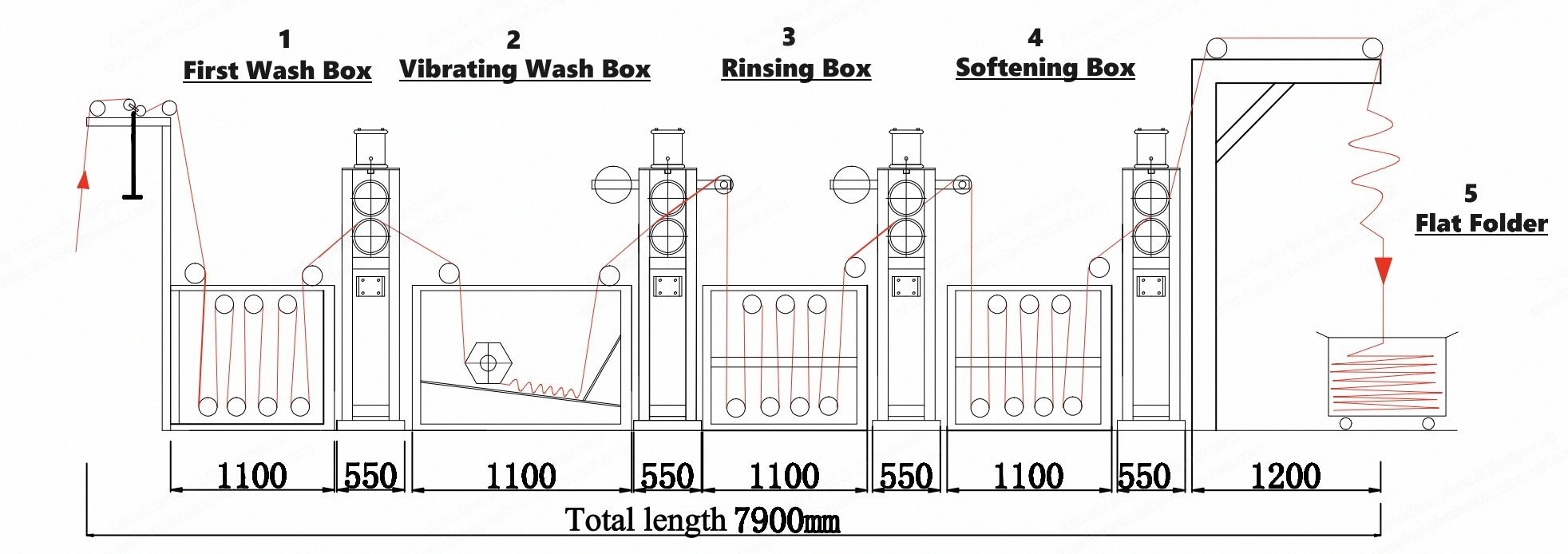

Each box is with in-feed and exit stainless roller as depicted in the diagram
Hexagonal beating (vibrating) roller is diameter 380 mm (15 inches); with inverter drive (2 kW inverter), 0 to 80 meters per minute
Constant tension
Flat folder, speed is inverter driven
Manual ball valve drain off
Overall wash range length: 7900 mm (26 feet)
Control panel with all motors protections; includes unitary speed ramp-up and slowdown of all motors simultaneously (acceleration/deceleration controls with electrical loop feedback)
Multiple emergency stops throughout the machine
Voltage: 220 V, 60 Hz
The control nomenclature and safety signage is in English
Condition
New construction
Included
Edge guiders at entrance (not including the frame to mount them)
Control panel with all motors protections
Multiple emergency stops throughout the machine
Not specified
Notes
Customer to supply main water feed line (main header) and main water shutoff valve
The wash line can be connected in counterflow arrangement, but customer must set the cascading base levels and counterflow pipe connections
Customer supplies individual water fill valve for each wash box and manual water feed valve for each spray pipe both to be connected from the main water header
Customer to indicate if he/she wants any spare parts or components and request specific items they wish to add to the shipment (spare motor, gearbox, nip pressure control, etc, or any other optionals to be added at a separate price)
We are not including the temperature controls (temperature sensor) or the automatic steam valve for each box; let us know if you need it and if you want us to quote that for you or if you want to get that locally and get your plumber to install it because it has to go on your line; we would have to tell the manufacturer to add a nipple to the side of the box to insert the temperature sensor
Customer must supply: air compressor, water, steam pipe, electrical and piping to the machine
