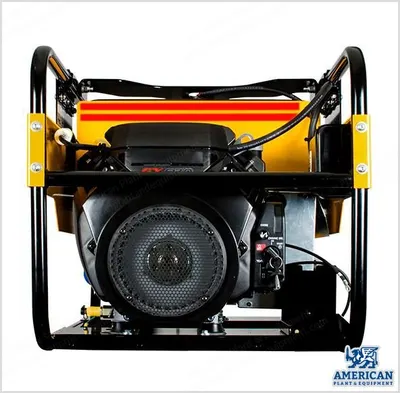

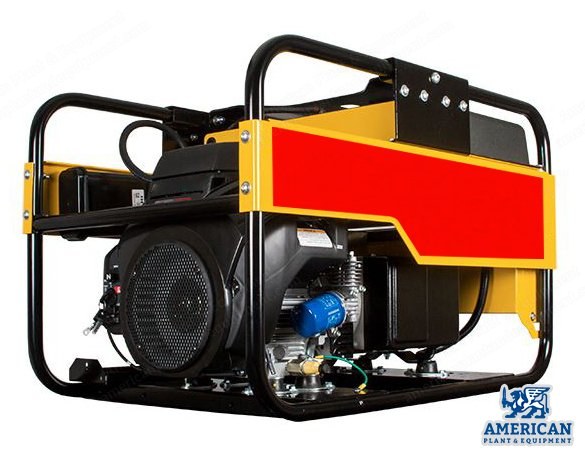

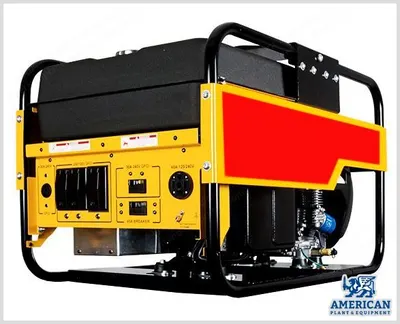

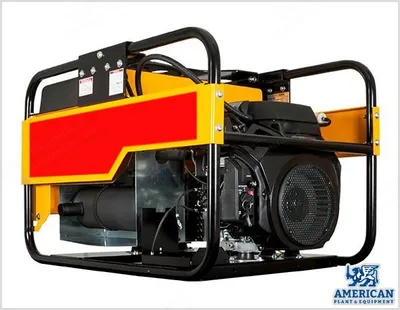

Winco, WL12000HE-03/D, Portable Generator, 120/240V, 15 Gallon Fuel Tank (New)

Winco, WL12000HE-03/D, Portable Generator, 120/240V, 15 Gallon Fuel Tank

Description

  1. Overview
    1. The WL12000HE is the workhorse of Winco’s Big Dog portable generator series.
    2. It will save you time and money giving your company a competitive advantage over crews using other portable generators.
    3. The 15 gallon fuel tank provides 9 hours of run time at full load so you won’t have to take unscheduled breaks to refuel.
    4. The WL12000HE is the preferred portable generator in the flat top roofing industry.
    5. It is durable enough to handle the hours while providing clean power for sensitive equipment.
    6. This model comes with the NEMA 14-60R 60A 120/240 volt receptacle.
    7. The WL12000HE comes standard with the CS6365 50A T-L 120/240 volt receptacle.
  2. Generator Specifications
    1. Starting watts: 12,000
    2. Running watts: 10,800
    3. Running amps @ 120 VAC: 90
    4. Running amps @ 240 VAC: 45
    5. Voltage regulation: capacitor +/- 5%
    6. Main circuit breaker: 45 amp, 240V (GFCI)
    7. Bonded neutral: yes
    8. 120 volt receptacles: (3) NEMA 5-20 20A (GFCI)
    9. 120/240 volt receptacles: (1) NEMA 14-60R 60 A
    10. 240 volt receptacles: (1) NEMA L6-30R 30A (GFCI)
    11. YourGen meter: standard
    12. Motor starting (code G): 5 HP
    13. dBA @ 7 meters: 77
    14. Total harmonic distortion: < 6%
    15. Lifting eye: standard
    16. Insulation: class H
    17. Protective roll frame: 1.2 dia 14 gauge steel
    18. Assembled in: USA
    19. EPA approved: yes
    20. CARB approved: yes
    21. CSA approved: yes
    22. Unit warranty: 2 years commercial
    23. Shipping dimensions: 50" x 32" x 31"
    24. Ship weight: 412 lbs
    25. Freight class: 70
  3. Engine Specifications
    1. Engine brand: Honda
    2. Engine model: GX630
    3. Engine starter: electric
    4. Engine speed: 3600 RPM
    5. Engine cylinders: V-twin
    6. Displacement/type: 688 cc / OVH
    7. Frequency regulation: +/- 3%
    8. Low oil protection: standard
    9. Recommended oil: 10W-30
    10. Oil capacity: 2.1 qt
    11. Fuel tank: 15 gal
    12. Fuel gauge: yes
    13. Full load run time: 9.4 hours
    14. Fuel consumption gal/hr @ 100%: 1.59
    15. Fuel consumption gal/hr @ 75%: 1.19
    16. Fuel consumption gal/hr @ 50%: 0.79
    17. Fuel consumption gal/hr @ 25%: 0.40
  4. Features
    1. Honda GX630 engine - you expect the best, you get the best. The Honda GX630 is better than ever, including improved adaptability, quieter operation, and greater fuel efficiency.
    2. YourGen meter - LED meter displaying house, RPMs, voltage, and frequency readings. Verifies the load balance with a load bar display. Warnings when a parameter is outside of normal range and when an oil change is needed.
    3. Low oil protection - in the event there is a low oil level, the engine will shut down to protect the engine from damage.
    4. Powder coat paint - for an incredibly durable finish.
    5. Sturdy wrap-around cradle - 14 gauge, welded, tubular steel provides industrial strength support.
    6. 15 gallon fuel tank - EPA approved steel fuel tank designed to eliminate hydrocarbon emissions.
    7. Premium breakers - provides a clear and instant indication of a tripped circuit.
    8. 100% load tested - you won’t find statistical sampling here. Every generator is fully tested prior to leaving Winco's facility.
  5. Included Accessories
    1. Dolly kit - Winco all-terrain 4-wheel dolly kit is designed for use with generator models WL12000HE-03/A, WL12000HE-03/B, WL18000VE-03/A. Ships ready to assemble. Four wheel dolly kit accessory has the same rugged durability as our 2-wheel kit, but with the easy mobility of 4 wheels. (16199-043 WL series 4-wheel dolly kit)
    2. Generator cover - large sized generator cover. (64444-013 large sized generator cover)
    3. Plug-in line voltage monitor - a compact voltmeter that can be plugged into the 120-volt receptacle on any Winco generator to assure you that your generator is functioning properly. (24743-003 plug-in line voltage monitor)
    4. Plugs - NEMA L6-30 30 amp plug (64697-000) and CS6365 50 amp plug (64493-000)
    5. Battery trickle charger - to ensure the battery is fully charged when you need it most. (72036-022 battery trickle charger)
    6. Maintenance kit - every kit includes a NAPA air filter, a Bosch spark plug (some kits include 2), NAPA 10W-30 motor oil, and a mechanic’s cloth. Oil filter and STA-BIL included in certain kits. (16200-005 GX630 & GX690 maintenance kit)
    7. Battery - 12V U1 300 CCA battery (80765-012 12V U1 300 CCA battery)
  6. Dimensions and Weight
    1. Weight: 412 lbs
    2. Dimensions: 50 x 32 x 31 in
