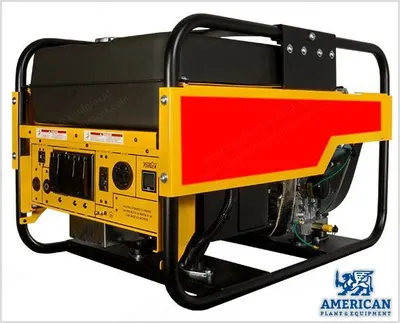

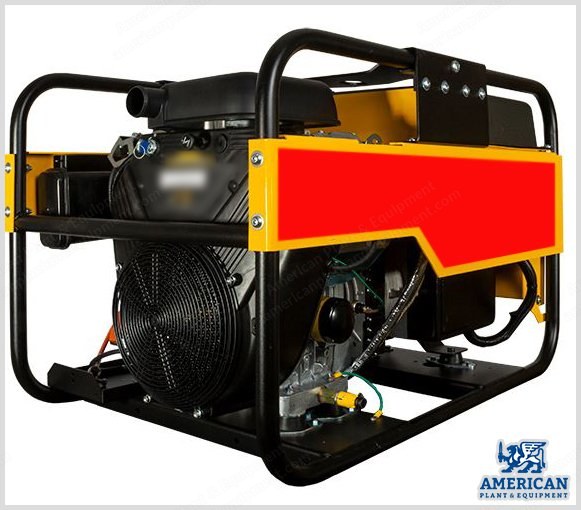

Winco, WL18000VE-03/A, 18000W Starting, 15000W Running, Briggs & Stratton Vanguard 35 HP Engine, Portable Generator (New)

Winco, WL18000VE-03/A, 18000W Starting, 15000W Running, Briggs & Stratton Vanguard 35 HP Engine, Portable Generator

Description

  1. Overview
    1. Second largest portable generator available in the WL series.
    2. Proven as a strong and dependable portable for roofing and sprayfoam applications.
  2. Included Accessories
    1. Dolly kit: WL series 4-wheel dolly kit (part 16199-040).
    2. Generator cover: Large sized generator cover (part 64444-03).
    3. Plug-in line voltage monitor: For verifying voltage output (part 24743-003).
    4. Plugs: NEMA L6-30 30 amp plug (part 64697-000) and NEMA 14-60 60 amp plug (part 300137).
    5. Battery trickle charger (part 72036-022).
    6. Maintenance kit: Includes air filter, spark plug, oil, Sta-Bil fuel stabilizer, and oil filter (part 16200-011 Vanguard 35 hp maintenance kit).
    7. Battery: 12V group 26, 500 CCA battery (part 80765-013).
  3. Generator Specifications
    1. Starting watts: 18,000.
    2. Running watts: 15,000.
    3. Running amps at 120 VAC: 125.
    4. Running amps at 240 VAC: 62.5.
    5. Voltage regulation: Capacitor +/- 5%.
    6. Main circuit breaker: 60 amp, 240V VAC.
    7. Bonded neutral: Yes.
    8. 120 volt receptacles: (3) NEMA 5-20 20A (GFCI), (1) NEMA L5-20 20A (GFCI).
    9. 120/240 volt receptacles: (1) 14-60R 60A.
    10. 240 volt receptacles: (1) NEMA L6-30 30A (GFCI).
    11. YourGen meter: Standard.
    12. Motor starting (code G): 6 hp.
    13. dBA at 7 meters: 79.
    14. Total harmonic distortion: <6%.
    15. Lifting eye: Standard.
    16. Insulation: Class H.
    17. Protective roll frame: 1.25" dia 14 gauge steel.
    18. Assembled in: USA.
    19. EPA approved: Yes.
    20. CARB approved: No.
    21. CSA approved: Yes.
    22. Unit warranty: 3 years commercial.
    23. Shipping dimensions: 43.5" x 31" x 37".
    24. Ship weight: 504 lbs.
    25. Freight class: 70.
  4. Engine Specifications
    1. Engine brand: Briggs & Stratton.
    2. Engine model: Vanguard.
    3. Engine starter: Electric.
    4. Engine speed: 3600 rpm.
    5. Engine cylinders: V-twin.
    6. Displacement/type: 895 cc / OVH.
    7. Frequency regulation: +/- 3%.
    8. Low oil protection: Standard.
    9. Recommended oil: 10W-30.
    10. Oil capacity: 2.1 qt.
    11. Fuel tank: 15 gal.
    12. Fuel gauge: Yes.
    13. Full load run time: 7 hours.
    14. Fuel consumption gal/hr at 100%: 2.14.
    15. Fuel consumption gal/hr at 75%: 1.30.
    16. Fuel consumption gal/hr at 50%: 0.82.
    17. Fuel consumption gal/hr at 25%: 0.59.
    18. Fuel consumption gal/hr at 0%: 0.47.
  5. Features
    1. Briggs & Stratton Vanguard engine: Premium grade Vanguard engines are application engineered to power equipment that works for a living.
    2. Low oil protection: In the event there is a low oil level, the engine will shut down to protect the engine from damage.
    3. YourGen meter: LED meter displaying hours, rpms, voltage, and frequency readings. Verifies the load balance with a load bar display. Warnings when a parameter is outside of normal range and when an oil change is needed.
    4. Powder coat paint: For an incredibly durable finish.
    5. Sturdy wrap-around cradle: 14 gauge, welded, tubular steel provides industrial strength support.
    6. 15 gallon fuel tank: The EPA-approved steel fuel tank design eliminates hydrocarbon emissions.
    7. Premium circuit breakers: Provides a clear and instant indication of a tripped circuit.
    8. 100% load tested: Every generator is fully load tested prior to leaving Winco's facility.
  6. Condition
    1. Used industrial generator in working condition.
    1. Free freight to a business address; the customer is responsible for unloading merchandise upon delivery.
