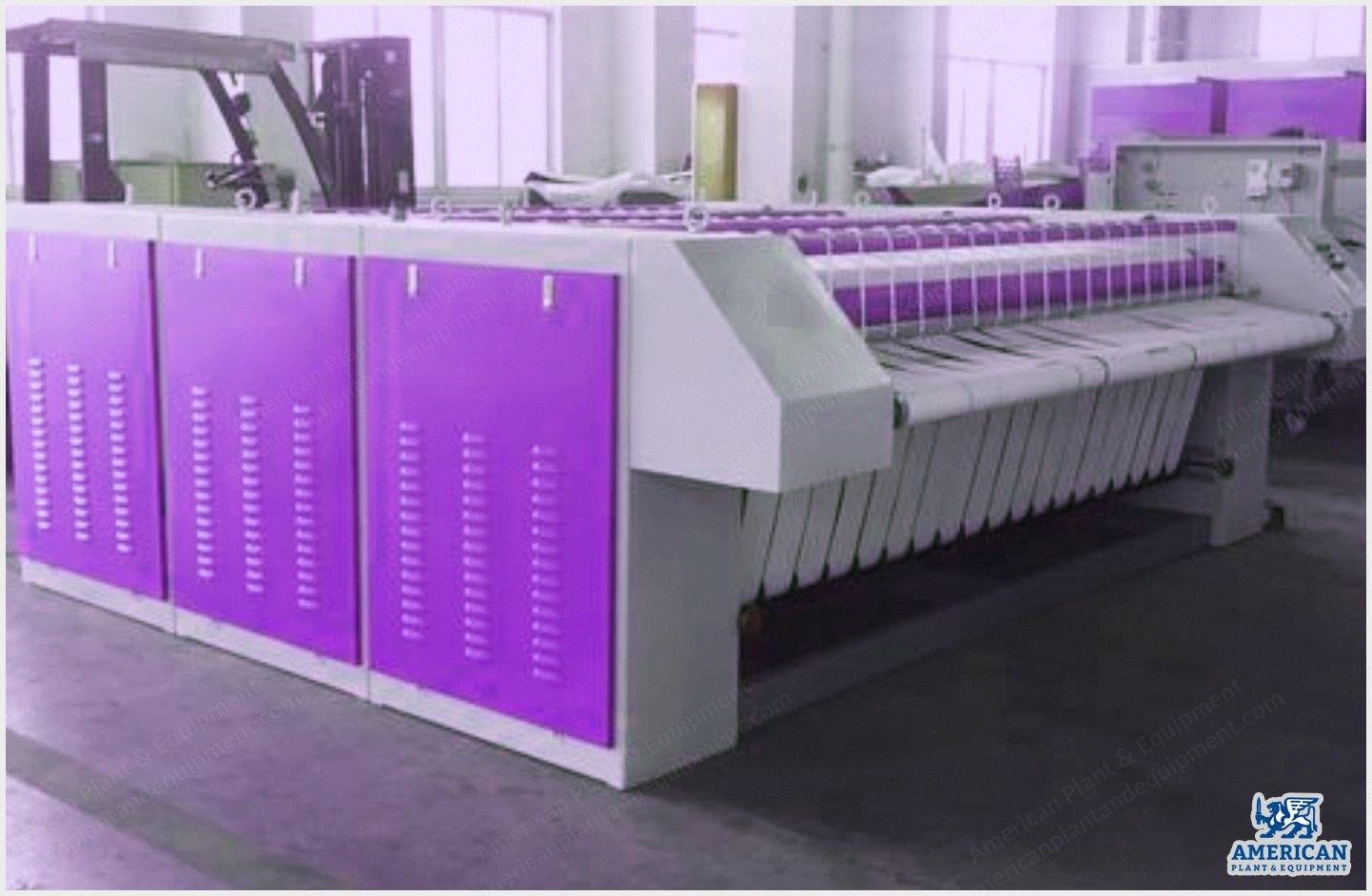

NovaStar, DG583, Flatwork Ironer and Folding Machine, 3000mm Working Width, 3 Rollers, Steam Heated (New)

NovaStar, DG583, Flatwork Ironer and Folding Machine, 3000mm Working Width, 3 Rollers, Steam Heated

Description

  1. Item 001: Flatwork Ironer
    1. Roller dimension: Φ800 x 3000 mm
    2. Rotate speed: 0 to 28 m/min
    3. Roller quantity: 3
    4. Motor: 2.2 kW, with 3.7 kW inverter
    5. Voltage: 220 V, 3-phase, 60 Hz
    6. Steam heating, pressure 0.4-0.6 MPa
    7. Dimension (L x W x H): 4000 x 3400 x 1330 mm
    8. Net weight: 3600 kg
  2. Item 002: Folding Machine
    1. Maximum folding width: 3000 mm
    2. Maximum folding hierarchy: 5 times/32
    3. Maximum folding speed: 50 m/min
    4. Rated voltage: 220 V, 3-phase, 60 Hz
    5. Motor power: 1.87 kW
    6. Inlet diameter: Φ12 mm
    7. Minimum inlet pressure: 0.7 MPa
    8. Air consumption: 1.2 m³/min
    9. Outline size: 4160 x 2930 x 1750 mm
    10. Weight: 1430 kg
