GE, LM6000 PC SPRINT, 2019, 47,300 kW, 60 Hz, 13.8 kV, Gas Fuel

GE, LM6000 PC SPRINT, 2019, 47,300 kW, 60 Hz, 13.8 kV, Gas Fuel

Description

  1. Overview
    1. Two each rebuilt GE LM6000 PC Sprint gas turbine generator sets
    2. Year: 2019

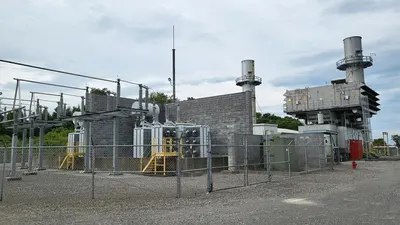

    3. Complete plant
    4. Transformers not included
    5. Gas turbine with Sprint power boost
    6. Fuel: gas fuel
    7. Power output: 47,300 kW @ ISO
    8. Manufacturer's guaranteed heat rate of 8,200 Btu/kWh
    9. Emissions guarantee with water injection: NOx 25 ppmvd @ 15% O2
  2. Generator Specifications
    1. Brush 71.2 MVA, 60 Hz, 13.8 kV
    2. 13,800 volt, 60 Hz, 3,600 rpm
    3. Low maintenance brushless excitation system suitable for Class I, Group D, Div 2 areas
    4. Neutral and line cubicles with CTs, surge protectors and lightning arrestors
  3. Basic Scope Of Supply

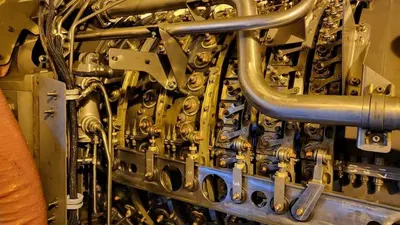

    1. LM6000 gas turbine engine equipped with inlet bell mouth and screen
    2. Gas fuel, water injected combustion system, complete and self-contained on the unit, with connection on the baseplate for customer's filtered, regulated fuel supply at 625 psig ± 20 psig
    3. Sprint (spray intercooling) power augmentation option
    4. I-beam baseplates for turbine, generator and unit mounted accessories
    5. Acoustic enclosure for gas turbine and generator
    6. Redundant ventilation systems and AC internal lighting

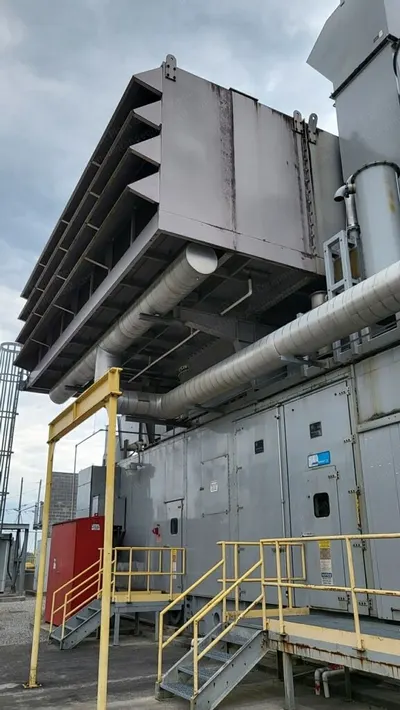

    7. Multistage air inlet filtration system for both gas turbine and generator, including weather hoods, inlet screen, pre-filter, final barrier filter, intake silencer, and standard ducting to plenum chamber; filter house ladders and platforms are included
    8. Electro-hydraulic start system
    9. Separate oil systems for gas turbine and generator, including duplex filters, duplex water/oil coolers, stainless steel piping, and stainless-steel reservoirs

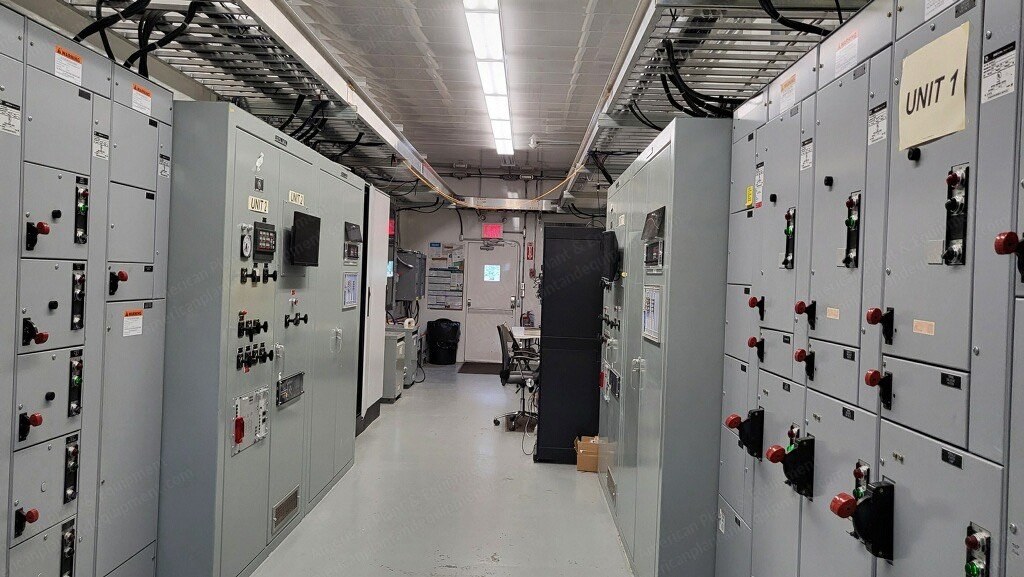

    10. Unit control panel for indoor mounting in a controlled environment, including microprocessor fuel management and sequencing system, generator metering, Bentley Nevada vibration monitoring, CRT annunciation of alarms and shutdowns, and Ethernet/Modbus interface to customer's DCS
    11. I/O cubicle mounted on gas turbine enclosure
    12. 24V DC control system battery with dual battery chargers
    13. Fire and gas detection and extinguishing system, serving both turbine and generator compartments
    14. "Soak wash" system for simple cycle service
    15. Generator factory testing to IEEE or IEC standards; gas turbine performance test by G.E.; full load string test and performance verification of turbine generator set at S&S factory (Houston); load string tested
    16. Six sets of drawing and data packages, O & M manuals
  4. Optional Equipment Included In Base Price
    1. Option I - water injection metering system (NOx control with gaseous, liquid, or dual fuel systems)
    2. Option X - Sprint (spray intercooling) power augmentation
    3. Exhaust stack
  5. Exclusions
    1. Fuel, fluids and chemicals
    2. Fuel storage tanks and forwarding equipment
    3. Water treatment and purification equipment
    4. Deaeration and chemical injection equipment
    5. Heat recovery boiler
    6. Boiler feed pump and auto level control assembly
    7. Automatic blowdown controls
    8. Absorption chiller and chilled water supply system
    9. Buildings, foundations and foundation embedments
    10. Filter house support structure other than standard
    11. High voltage transformer(s), switchgear and associated equipment
    12. Distributed plant control or remote-control panels
    13. Balance of plant and energy optimization controls
    14. Desuperheater equipment
    15. Steam turbine generator set
    16. Steam turbine condenser and condensate pumping equipment
    17. Cooling tower and circulating water system
    18. Interconnecting piping, conduit, and wiring between equipment modules
    19. Power plant calibration tools and ordinary hand tools
    20. Off loading of equipment at jobsite
    21. Yard light and fences
    22. Spare parts other than start-up spares
    23. Supervision or technical direction at jobsite
