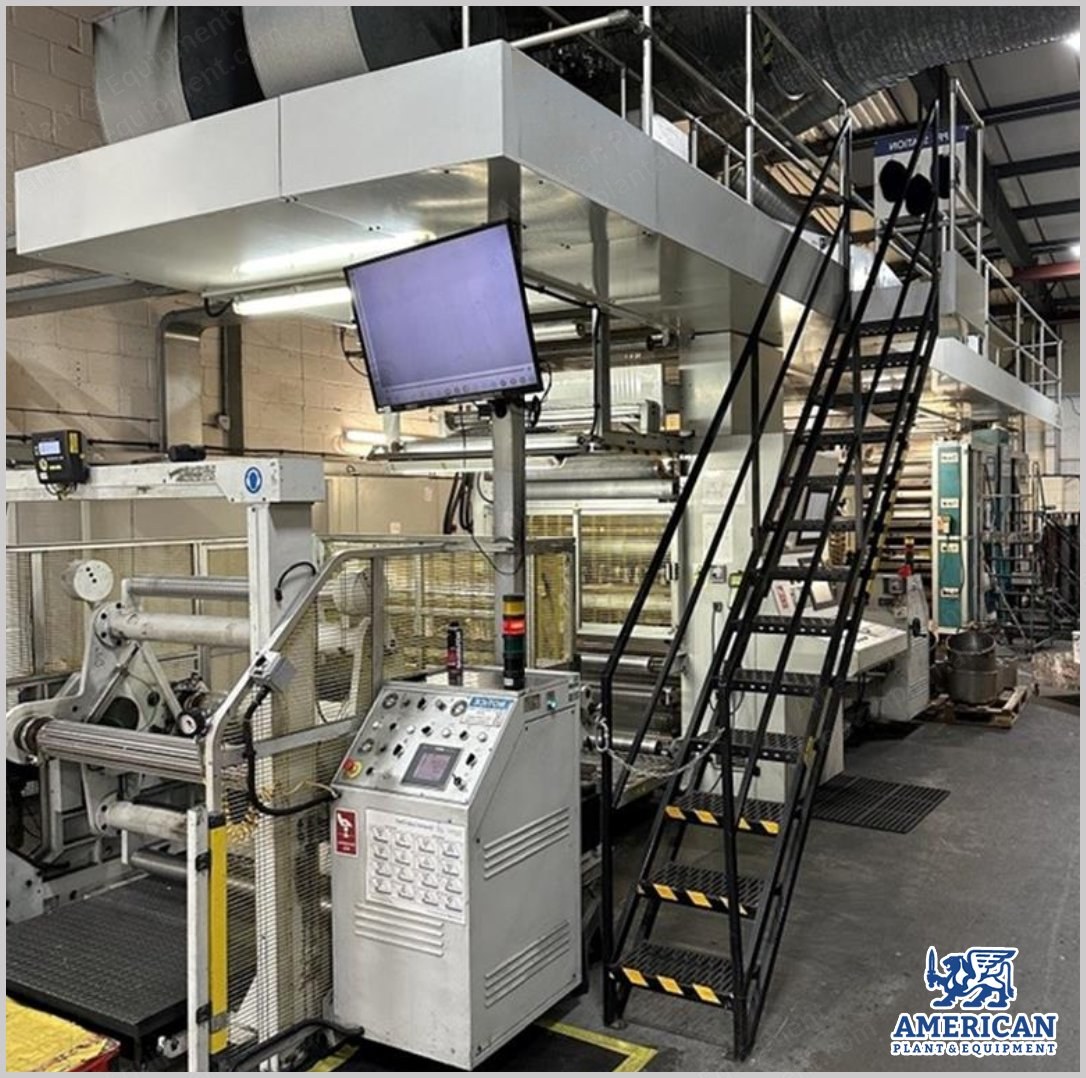

Uteco, Onyx 876, 2010, 8 Colours, 1200mm Printing Width, Gearless

Uteco, Onyx 876, 2010, 8 Colours, 1200mm Printing Width, Gearless

Description

  1. Overview
    1. Year of production: 2010
    2. Brand and model: Uteco Onyx 876
    3. Geared/gearless: Gearless
    4. Number of colours: 8
    5. Material to print: PE, PP, OPP, PET, paper
  2. Specifications
    1. Printing width: 1200 mm
    2. Material width: 1250 mm
    3. Print repeat: 330 mm to 800 mm
    4. Mechanical speed: up to 365 m/min
  3. Un-winder and winder
    1. Un-winder: turret un-winder, non-stop
    2. Maximum roll diameter: 800 mm
    3. Expanding shafts: 3 in
    4. Rewinder type: turret
    5. Maximum roll diameter: 800 mm
    6. Expanding shafts: 3 in
  4. Drying system
    1. 2 zones (print unit and tunnel), 4 fans, 2 gas burners
    2. Drying tunnel with 2 hoods
  5. Accessories
    1. Videocamera: BST
    2. Web guides: BST EKR 500
    3. Inking system: close chamber doctor blades
    4. Anilox: 31
    5. Print sleeves: approximately 150
    6. Frigosystem
    7. Chiller
    8. Operational LEL
  6. Condition
    1. In good working condition
    2. Can be seen in production
    3. Machine specifications according to manufacturer and previous owner’s information
