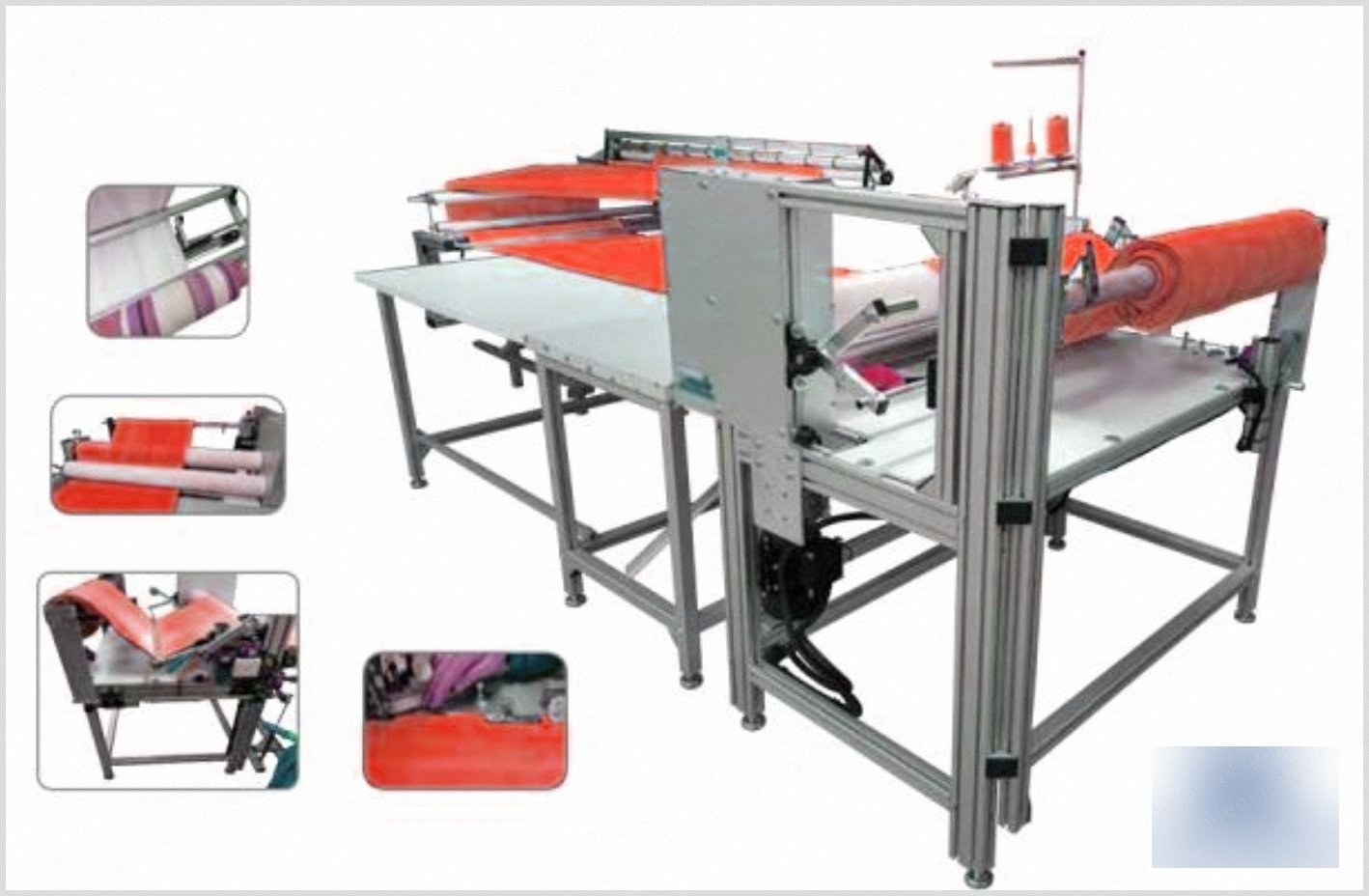

NovaStar, SR303, Bias Binding Cutting System, 200cm Max Width (New)

NovaStar, SR303, Bias Binding Cutting System, 200cm Max Width

Description

  1. Overview
    1. Three-stage bias binding production line consisting of a tube sewing unit, bias cutter rewinder, and fully automatic roll slitter.
  2. Item 001: Tube Sewing Unit
    1. Maximum material width: 200 cm ~78 in
    2. Floor space required: 380 x 165 cm ~12.5 ft x 5.5 ft
    3. Maximum roll diameter: 300 mm ~12 in
    4. Maximum roll weight: 50 kg ~110 lb
    5. Voltage: 220 V, 1 phase
    6. 6 bar air supply required
    7. Preset stitch counter for lock stitch to eliminate the risk of bobbin thread running out (includes Pfaff 1183 lockstitch sewing head)
    8. Thread break detector
    9. Vacuum unit to remove excess trimmed material
    10. Electronic machine speed regulator
    11. Automatic photocell edge alignment
    12. Variable stitch length
    13. Machine can re-roll or flat-fold (festoon) – must be configured when placing order
    14. Folded edges are automatically aligned prior to seaming
  3. Item 002: Bias Cutter Rewinder
    1. Maximum material width: 200 cm ~78 in
    2. Maximum width of tube material: 120-155 cm ~47-61 in
    3. Floor space required: 235 x 150 cm ~93 in x 59 in
    4. Maximum roll diameter: 280 mm ~11 in
    5. Re-roll shaft diameter: 48 mm ~1 7/8 in
    6. Cardboard core inside diameter: 50 mm ~2 in
    7. Bias cutting blade: 150 mm ~6 in
    8. Bias angle: 38-52 degrees
    9. Running speed: infinitely variable up to 30 m/min, 33 yd/min
    10. Voltage: 220 V, 1 phase
    11. One arm is free-floating on roller bearings which self-adjusts the tension of tube material, compensating for irregularities in width of tube material
    12. Equipped with semi-automatic blade sharpening device
    13. All rollers have sealed bearings
    14. Electronically controlled speed regulation allowing stepless speed control up to 33 yd/min, keeping the rotating speed of the basket (for folded material) or the tube feed unit (for rolled material) true to the speed of the bias cutter
    15. Out of fabric auto-stop
    16. Electronic meter/yardage counter for accurate control of rolled length (or pre-setting of required length)
  4. Item 003: Fully Automatic Roll Slitter
    1. Maximum material width: 200 cm ~78 in
    2. Maximum roll diameter: 400 mm ~15.75 in
    3. Diameter of cutting blade: 500 mm ~20 in
    4. Roll shaft diameter: 48 mm ~1 7/8 in
    5. Cardboard core inside diameter: 50 mm ~2 in
    6. Cutting accuracy: +/- 0.01 mm
    7. Air pressure required: 6 bar min
    8. Floor space required: 325 x 150 cm ~130 in x 59 in
    9. Net weight: 890 kg ~1962 lb
    10. Voltage: 220 V, 1 phase
    11. Automatic knife size detection
    12. Automatic and programmable sharpening system
    13. Automatic detection of roll size
    14. Counter for total number of cuts
    15. Touch-screen control for setting knife position to shaft/cardboard core
    16. Optional wrap mode and rewinder mode
    17. Automatically calculates possible cuts to help reduce waste
    18. Pneumatic auto-chuck
    19. Blade cooling system available as an option
