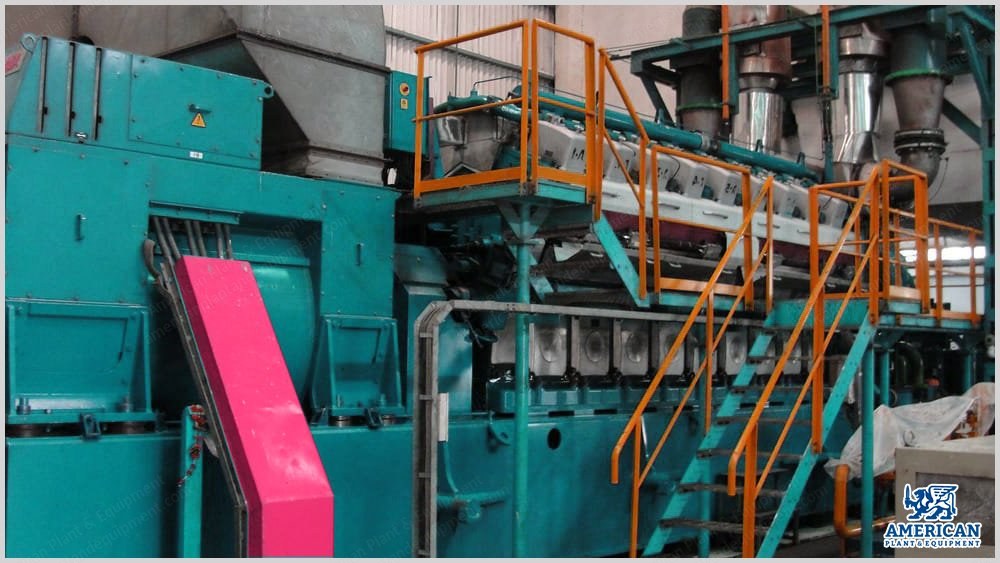

Wartsila, 18V34SG, 2006, 6210 kW, 7491 kVA, 11000 V, 50 Hz

Wartsila, 18V34SG, 2006, 6210 kW, 7491 kVA, 11000 V, 50 Hz Sold

Description

  1. Engine Specifications
    1. Manufacturer: Wartsila Finland
    2. Type: 18V34SG
    3. Spec no: 174462
    4. Engine no: PAAE015558
    5. Power: 6210 kW
    6. R/S: 12.5
    7. R/min: 750
    8. Manufactured: March 2006
  2. Generator Specifications
    1. Manufacturer: ABB synchronous generator
    2. Type: AMG0900LR08 DSE
    3. Year: 2006
    4. Phase: 3~
    5. Duty: S1
    6. Connection: Y
    7. Insulation class: F (temp. cl. F)
    8. Weight: 21600
    9. IP: 23
    10. IC: 0A1
    11. IM: 1101
    12. No: 4583908
    13. Output: 7491 kVA
    14. Voltage: 11000 V
    15. Frequency: 50 Hz
    16. Speed: 750 (NR900) rpm
    17. Current: 393
    18. Power factor: 0.8
    19. Ambient: +50 °C
    20. Excitation: 88 VDC, 8.7 ADC
