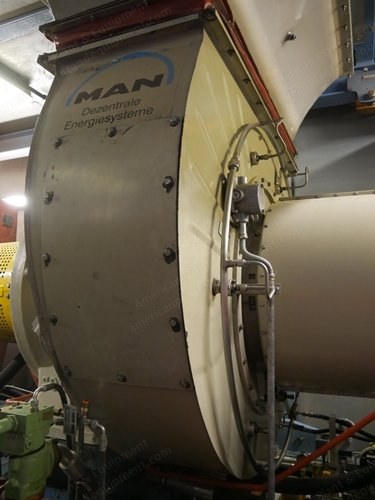

Solar, Taurus 60 S, 1996, 5200 kW, 50 Hz, Gas Fired, 2 Units

Solar, Taurus 60 S, 1996, 5200 kW, 50 Hz, Gas Fired, 2 Units

Description

  1. Overview
    1. Two turbine packages
    2. Manufacturer: Solar Turbines Inc, San Diego USA
    3. Model: Taurus 60 with Solonox combustion
    4. Packager: Turbomach
    5. Year package: 1996
    6. Operating hours package: about 182,000 each

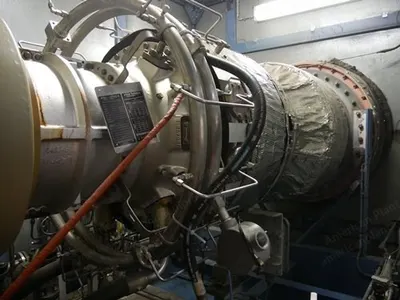

  2. Turbine Engines
    1. New engines installed in 2016
    2. Version: T 7801
    3. 17,000 hours each since installation
    4. Capacity: 5200 kW
    5. Speed: 14,950 u/min continual
    6. Fuel: natural gas
    7. Fuel consumption: 122,469 kJ/kWh
    8. Burners: 12
    9. Start system: electro-hydraulic, 90 kW
    10. Outlet temperature: 486°C
    11. Exhaust gas: 21,244 kg/s
    12. Dimensions: longitudinal- and transverse-force bases
    13. Turbine: 9 m x 2.2 m x 2.8 m = 33 tons
    14. Strainer: 4 m x 2.9 m x 3.8 m = 4.8 tons
    15. Insulating dome: 9 m x 2.2 m x 3.25 m = 7 tons

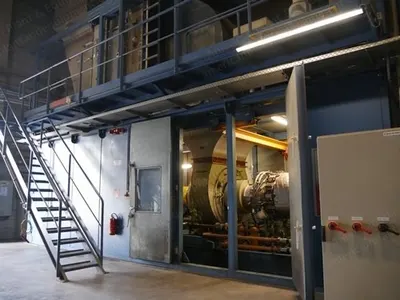

    16. Mounting: on steel skid (with acoustic enclosure)
    17. Last service / borescope: 06 2018 by Turbomach

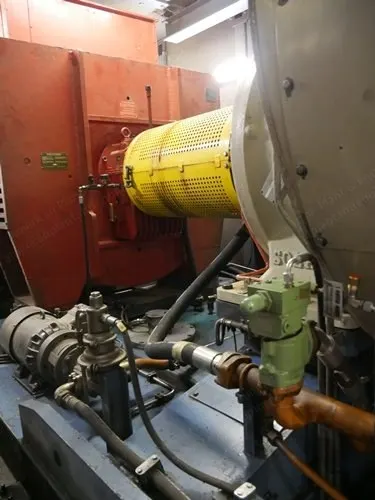

  3. Reduction Gearboxes
    1. Type: Solar epicyclic reduction gearbox
    2. Output rpm: 1500
    3. Year manufactured: 2016 (exchange together with turbine exchange)
    4. TSN (total since new): 17,000 hours each
  4. Generators
    1. Manufacturer: Leroy Somer
    2. Type / model: LSA 56 BWL 85 - 4P, 6 wire, wye connected, synchronous, with brushless exciter
    3. Frequency: 50 Hz
    4. Voltage: 6,300 volt
    5. Power: 6500 kW, PF = 0.8
    6. Generator rpm: 1500
    7. Year manufactured: 06-1996
    8. Last service: 06 2016
  5. Fire Protection Systems
    1. Hekatron, BLZ Ointegral C

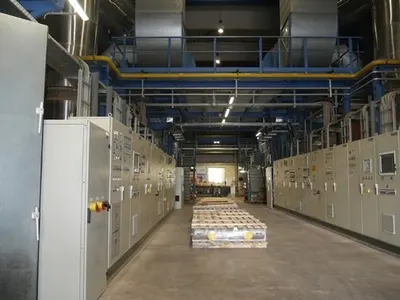

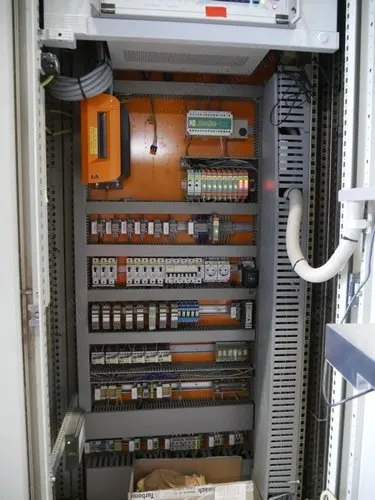

  6. Control Systems Turbines
    1. Siemens S5, upgraded to S7 in 2013
  7. Auxiliaries
    1. Lubrication systems
    2. Fuel systems
    3. Start systems electro-hydraulic 90 kW
    4. Air inlet systems, 1 stage air filter system
    5. Exhaust systems complete with silencer
  8. Waste Heat Recovery Boiler
    1. Manufacturer: Bertsch
    2. Type: waste heat boiler
    3. Year: 1996
    4. Max. heating power: 13,024 kW
    5. Max. steam production: 20 t/h
    6. Max. working pressure: 15 bar
    7. Max. operating temp.: 201°C
    8. Normal operating temp.: 191°C
    9. Additional firing
  9. Additional Information
    1. In one line, it is possible to burn biogas in the surface burner
    2. Both systems are equipped with a 72-hour BOSB
    3. Double gas control line was retrofitted
    4. Continuous emission measurement with evaluation computer is installed
    5. Air cooling of gas turbines has been retrofitted in 2012
    6. A new oil cooler is part of the system
    7. Natural gas heater is installed for the gas turbines
    8. CO2 extinguishing system is installed in the container
    9. Maintenances were carried out consistently by Turbomach
    10. All recurring TÜV checks performed - without complaints
  10. Condition
    1. Fully serviced by Turbomach and stopped operation in 08 2018
    1. Siedelsbrunn, in 2024
  12. Specifications
    1. Weight: 33000
