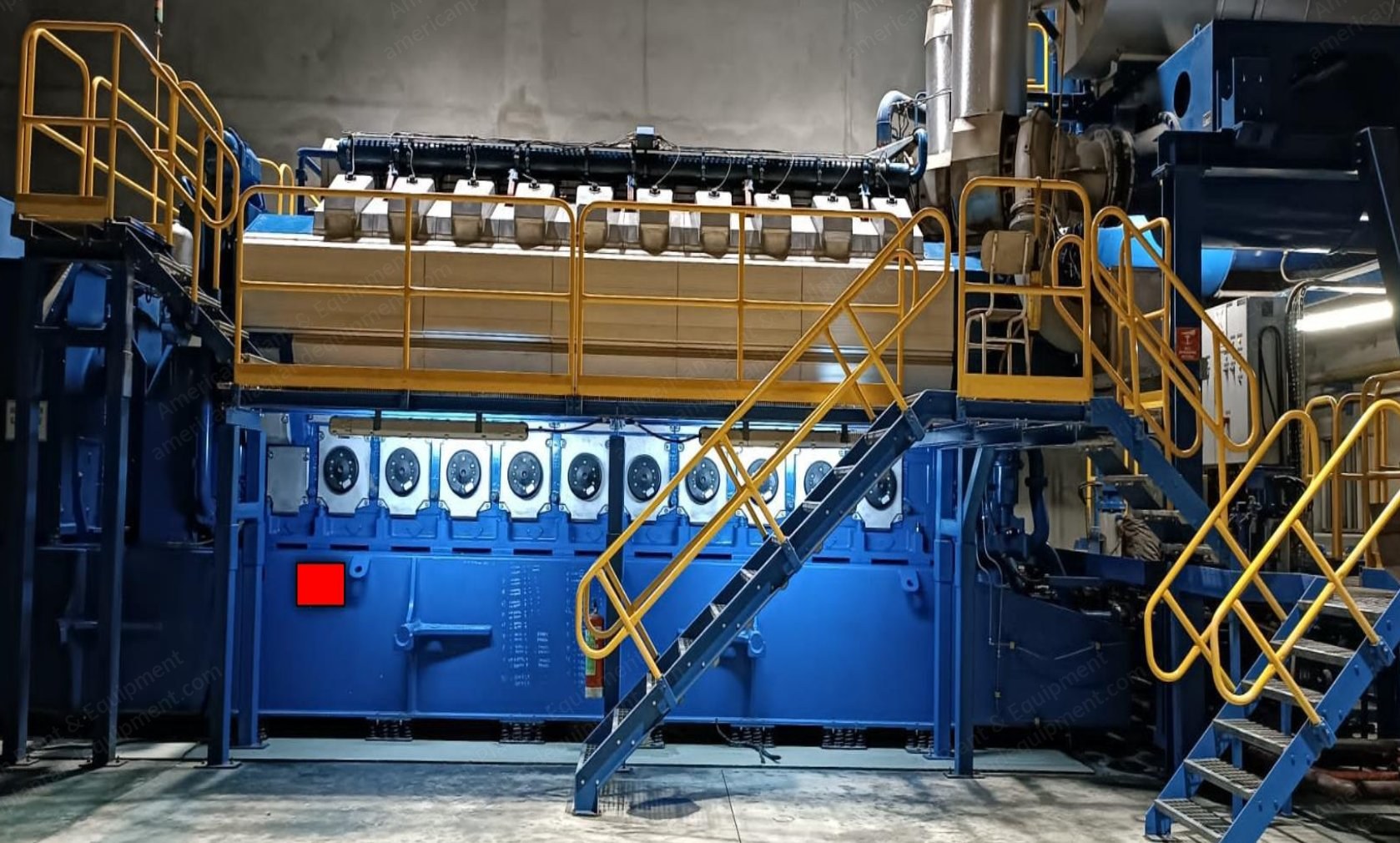

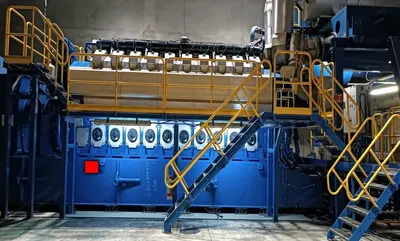

Description Overview Year: 2011 Condition: Used Operating hours: ⁓ 46,000 Status: Installed Fuel: Natural gas Design fuel: Natural gas Engine Manufacturer: Wartsila Model: 20V34SG Rated output: 9,730 kW Configuration: V Number of cylinders: 20 Speed: 750 rpm Alternator Manufacturer: ABB Apparent power: 12,163 kVA Operating power factor: 0.80 Nominal voltage: 11,000 V Frequency: 50 Hz Speed: 750 rpm Scope of Supply 1 x Wartsila 20V34SG engine and alternator Air compressors Air bottles for start-up All auxiliaries LV and MV system and cubicles Transformer (11 kV to 33 kV) Cooling set (radiator) Stack All pipes and steel structure for engine All pumps related with engine Engine has UNIC system and manufactured in 2011 Last Maintenance All maintenance done within manufacturer schedule Last maintenance done at 44,000 running hours Charge air cooler was dismounted, water spaces were cleaned, and spare cooler was mounted Prechambers and prechamber control valves were dismounted and dismantled, cleaned and checked, then mounted back with new sealing sets Gas filters were renewed Centrifugal lubricating oil filter was cleaned, paper insert was renewed Camshaft contact faces of tappet roller and the cams were checked and found in good condition All spark plugs were renewed, ignition coils condition was checked and found in good condition Valve clearances were checked and adjusted according to instruction manual Engine was started and loaded
