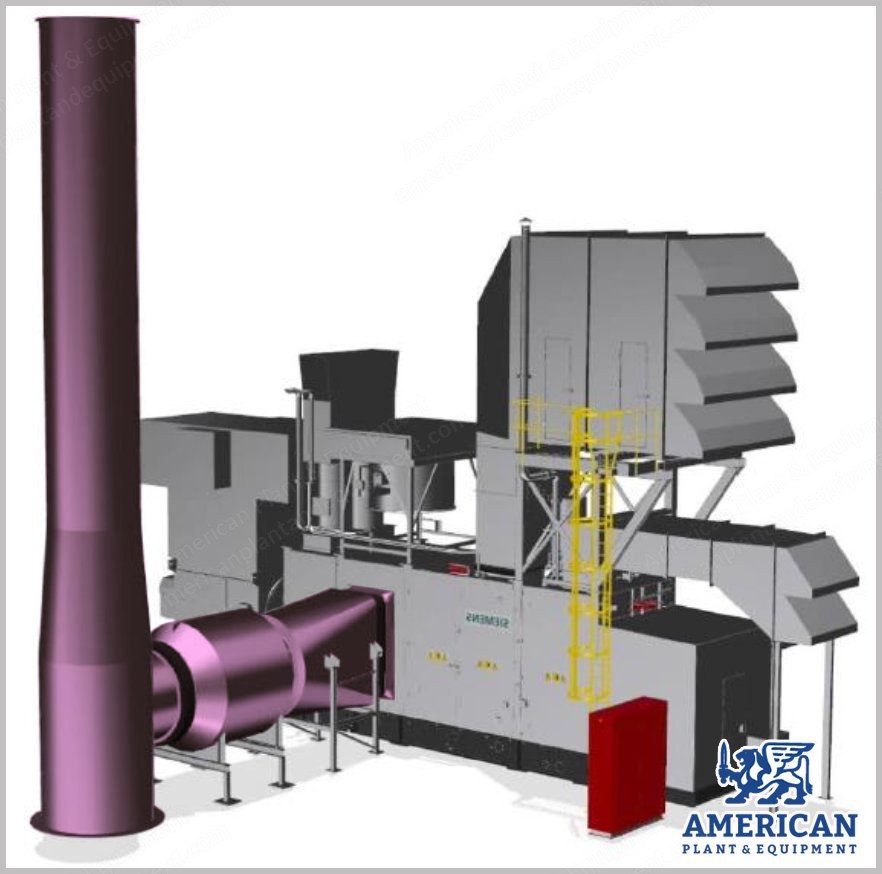

Siemens, SGT-400, 2022, 13 MW, Natural Gas Turbine Genset, 50Hz, 11 kV (New)

Siemens, SGT-400, 2022, 13 MW, Natural Gas Turbine Genset, 50Hz, 11 kV

Description

  1. Overview
    1. Manufacturer: Siemens
    2. Model: SGT-400
    3. Year: 2022
    4. Category: Natural gas turbines
    5. Subcategories: 10 - 99 MW
    6. Units available: 4 x 13 MW units, 50 Hz
    7. Presentation: Of one SGT 400 S 50 Hz gas turbine power plant
    8. Brand new 2022 Siemens SGT-400 natural gas turbine genset, high performance up to 12.9 MW power output, 50 Hz frequency, and 11 kV voltage – this unit has zero hours
    9. Optimal fuel flexibility, low emissions, and extended service intervals – suitable for power generation and mechanical drive applications
  2. General Description
    1. The Siemens SGT-400 is a high-performance, robust twin-shaft gas turbine, suitable for both power generation and mechanical drive applications.
    2. These gas turbines are brand new, manufactured in 2022 and have never been used before.
    3. This turbine is known for its operational and fuel flexibility, low emissions, and overall efficiency.
    4. It can burn a wide range of fuel compositions and run efficiently at all loads, including loads as low as 30%.
    5. The SGT-400 offers seamless, true dual-fuel capability.
  3. Unit Specifications
    1. Power output: 12.9 MW(e)
    2. Fuel: Natural gas
    3. Frequency: 50 Hz
    4. Gross efficiency: 35.00%
    5. Heat rate: 10,294 kJ/kWh (9,756 Btu/kWh)
    6. Turbine speed: 9,500 rpm
    7. Pressure ratio: 16.9:1
    8. Exhaust mass flow: 40.0 kg/s (88.2 lb/s)
    9. Exhaust temperature: 555 °C (1,031 °F)
    10. NOₓ emissions: ≤ 15 ppmvd (NOₓ emissions at 15% O₂ on fuel gas with DLE)
    11. Voltage: 11 kV
  4. Key Features
    1. Extended service intervals of 32,000 hours for the hot gas path, with 64,000 hours before the first major overhaul. This unit has zero hours.
    2. Fuel flexibility allows the turbine to burn many fuel types and qualities, including liquid fuels and gases with high inerts. It can burn up to 10 vol% of hydrogen (H₂) when equipped with DLE burners and up to 65 vol% of hydrogen (H₂) when equipped with diffusion burners.
    3. Twin-shaft design enables efficient operation across a broader range of power – from 10 to 15 MW.
    4. The turbine has intelligent automatic adjustment of fuel split during starting and during operation to compensate for load, ambient, and fuel composition changes, thereby minimizing emissions.
  5. Applications
    1. Ideal for onshore or offshore oil and gas industry applications due to its compact dimensions, on-site or off-site maintainability, and high reliability. It can be used as a direct drive for compressors or pumps, or for power generation. Suitable for onshore use in oil fields or refinery applications and offshore on platforms and FPSO vessels.
    2. It is also ideal for industrial power generation in simple cycle or combined cycle applications and combined heat and power (CHP) uses.
  6. Design Details

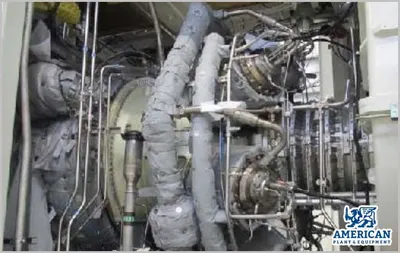

    1. The SGT-400 features a two-bearing gas generator rotor with an 11-stage axial flow transonic compressor and a two-stage, overhung compressor turbine. The SGT-400 free power turbine also has a robust two-stage, overhung design.
    2. The rotors are contained in heavy-duty casings that are horizontally and vertically split, so maintenance can be carried out on-site as needed.
    3. The compressor uses variable guide vanes for robust operability and optimized performance across a range of operating conditions.
    4. The gas turbine is equipped with a DLE combustion system to achieve low NOₓ emissions with both gaseous and liquid fuels.
  7. Packaging

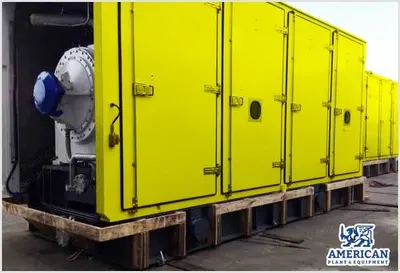

    1. The SGT-400 gas turbine packages for both power generation and mechanical drive applications are compact and designed to be easily transported, installed, and maintained. They are equipped with factory-tested modules and offer a high power-to-weight ratio.
    2. These packages consist of the gas turbine, gearbox (if necessary), driven unit, and all factory-tested fluid modules, mounted on an underbase.

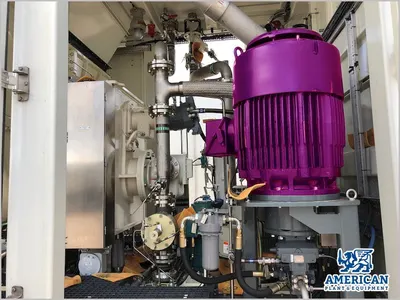

    3. The fluid system modules, which are shop-tested and certified, are common for all SGT-400 gas turbine packages and come fully wired into the control systems. These modules include an auto drains module, a gas fuel module, a lube oil module, and an optional liquid fuel module.
  8. Power Generation Package
    1. The SGT-400 package for power generation is suited for simple cycle, combined cycle, and cogeneration. Its high steam-raising capability, compact arrangement, robustness, and reliability, and ease of maintenance make it an ideal choice for many applications.
  9. Mechanical Drive Package
    1. The mechanical drive package is very compact, providing a small footprint and a high power-to-weight ratio.
  10. Condition
    1. Condition: New
    2. Hours: Zero
