NovaStar, CR189, Fiber Opening, Weighing Feeder and Semi Worsted Carding Line, 900mm Working Width, 50-400 kg/h (New)

NovaStar, CR189, Fiber Opening, Weighing Feeder and Semi Worsted Carding Line, 900mm Working Width, 50-400 kg/h

Description

  1. Overview
    1. Wool fiber opening machine: opens all kinds of wool and removes debris.
    2. Adds proper amount of emulsified oil (wool oil) to make the fiber fluffy and evenly mixed.
    3. Increases softness and lubrication, eliminates and reduces static electricity, ready for drafting.
    4. Semi worsted carding machine: equipped with a vibratory volumetric and weighing wool feeding machine with two weighing systems.
    5. Can be used for semi-worsted and worsted spinning, suitable for any loose fibers such as sheep wool, cashmere, rabbit hair, camel hair, alpaca hair, with fiber length less than 75 mm.
  2. Wool Fiber Opening Machine Specifications
    1. Machine type: right hand.
    2. Working width: 900 mm.
    3. Dimension (main machine): 2315 mm x 1650 mm x 1250 mm.
    4. Weight: about 2 tons.
    5. Dragging power – main motor: 5.5 kW, 730 r/min.
    6. Dragging power – fan: 4 kW, 1400 r/min.
    7. Dragging power – refilling device: 1.1 kW, 1440 r/min.
    8. Feeding method: feeding flat conveyor.
    9. Parts of speed – feed roller: 120 mm, 21 r/min.
    10. Parts of speed – cylinder: 650 mm, 347 r/min.
    11. Parts of speed – doffer: 400 mm, 834 r/min.
    12. Parts of speed – working roller: 158 mm, 18 r/min.
    13. Parts of speed – stripping roller: 120 mm, 22 r/min.
    14. Output: 50 to 400 kg/h.

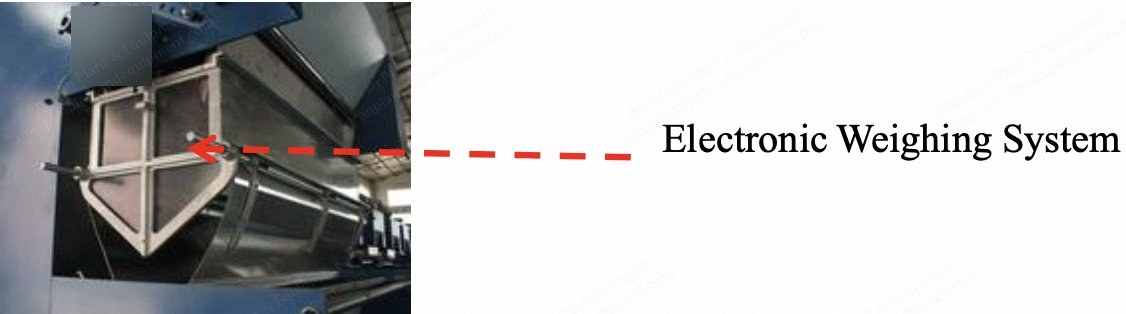

  3. Weighing Feeder (Hopper With Weigh Pans) Control System
    1. Control system description: machine uses complete set of American technology import controls with high anti-jamming capability and stability.
    2. Logic operation and output control by Mitsubishi PLC.
    3. Original mechanical lever system no longer used; raw wool feed and storage hopper all use pneumatic controls, opening and closing accurately.
    4. Levelling comb and feeding have independent transmission, easy to control; lattice is more convenient to change.
    5. High precision sensor sampling, multistage weighing, multistage feed speed; feed speed can be adjusted automatically based on wool in storage, with pre-feed function.
    6. Human screen and whole touch screen (HMI) adjustments easily seen; check all processes, statistical data, periodic data; alarm function; observe operation of various parts and stages directly; manual and automatic function.
  4. Weighing Feeder Indicator Data
    1. Display interface: dual display (phosphor screen, touch screen).
    2. Display accuracy: 1/10000.
    3. Resolution: ±0.1 to ±1 g.
    4. Feeding accuracy: ±2 g (under normal circumstances).
    5. Range of removing waste: 0 to 45000 g.
    6. Weighing range: 0 to 999 g.
    7. Working condition requirements: temperature -10 to 45 °C, humidity 10% to 90%, no condensation, no heavy dust.
  5. Semi Worsted Carding Machine Specifications
    1. Machine type: right hand (face the mechanical direction of the feed, the main drive is on the right hand).
    2. Cylinder width: 1020 mm.
    3. Dimension – main machine: 3300 mm x 2000 mm x 1800 mm.
    4. Dimension – feed entry: 800 mm x 1000 mm x 1500 mm.
    5. Dimension – feeder bucket: 2840 mm x 1500 mm x 3100 mm.
    6. Weight – main machine: about 4 tons.
    7. Weight – feed machine (hopper): about 1.5 tons.
    8. Electrical power – main motor: 3.3 kW.
    9. Electrical power – Randolph: 1.5 kW.
    10. Electrical power – hopper feeder: 0.75 kW.
    11. Electrical power – feeder: 1.5 kW and 1.5 kW.
    12. Output: 10 to 25 kg per hour.
