Description
Details:
Shredder Machine Multi-Application:
Use for plastic, wood, metal, rubber, glass etc recycling pre-shredder process.
1. Shredder Description of Technical Parameters
# | Item | Features | Remarks | |
1 | Double Shaft Shredder | Number of knife: 24pcs | Size Φ450 x 50mm (OD. x T) | 9CrSi |
Number of spacer: 24 pcs. | Size Φ240 x 50mm (OD. x T) | 45 # steel | ||
Number of shaft: 2 pcs. | Size Φ190 x 1950mm (OD.) | 42Cr | ||
Chamber Dimension | 1200 x 800mm (L x W) | |||
Motor Power | 37kW x 2 sets （49.6 HP x 2） | |||
Reducer | P12 model x 2 sets | Palent model | ||
Voltage 220V/380V/415V/440V or refer client requirement. Dimensions main bod 4000x 1400x2200mm mm (L x W x H) hopper 2000x1700x1100mm (hopper can disassemble). Electric controller 2380x1300x750mm (L x W x H). | ||||
Weight: 8.000 kgs | ||||
2. Main Components Part
# | Item | Origin | Image |
1 | Main Motor | Wananmotor | |
2 | Gear Reducer | Tongli | |
3 | Electric Part | Schneider |
|
4 | Blade/Spacer Material | 9CrSi-material with excellent toughness and abrasion resistance. HRC 55-58 °. |
|

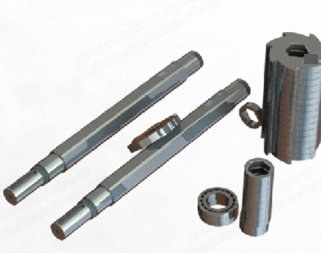

5 | Shaft Material | 40Cr -material it has good comprehensive mechanical properties, good low temperature impact toughness and low notch sensitivity. HB280-320. |
|
6 | Chamber Box Material | Q345 steel | |
7 | Control System | Siemens touch screen control panel PLC - easy to operate and responsive (English language) | |

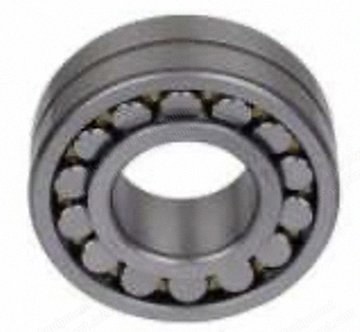

8 | Bearing/Coupling | Harbin |
|
Optional (Extra Cost)
1 | XP Motor | Dust-proof and explosion-proof motor | |
2 | XP Controller | Dust-proof and explosion-proof electric cabinet |
|
3 | Blade Material | 55SiCr/9CrSi /D2/SUS304 /Hardrox 500 /550/650 /9Cr2Mo (for detachable type blade). | Different material application different shred material. |

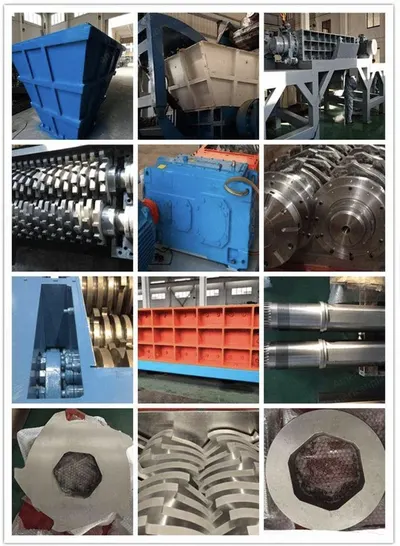

3. Machine Mechanical Part
Design and Structure:

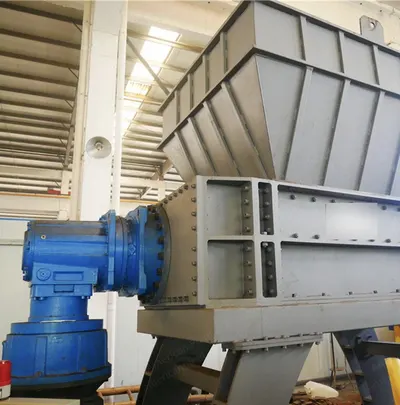

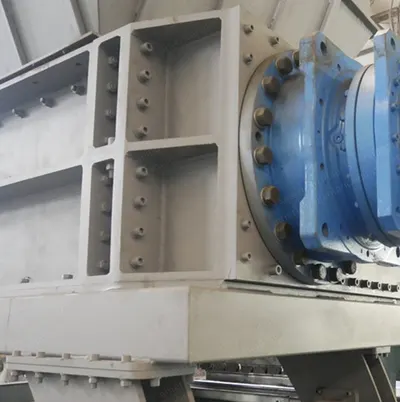

Main Body View Advantages Heavy moving knife, high crushing efficiency moving knife and fixed knife are cast with alloy steel, strong, long service life, iron frame plate thick, high torque resistance, very strong, easy to adjust, low maintenance cost, economical and durable. The unit yield is the passing quantity calculated theoretically, and the specific use should be determined according to the actual density and shape of the crushing material. | |

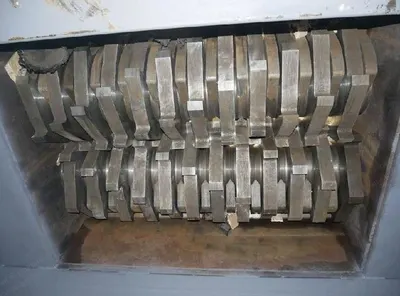

Chamber Part
The case of the twin-shaft shredder is an important part of the shredder unit, which includes the blade, the spacer, the shaft and the shredder chamber. Users can customize the shredding machine cases of different sizes according to the production requirements of different materials in time. |
|
Control Panel Details 1. The display screen is a 7-inch display of Siemens touch Smartline series, with precise touch and real-time control. 2. Can control the machine's forward rotation, reverse rotation, and the conveyor belt (optional configuration, according to customer needs configuration) transmission. And time can be programmed. 3. The device will automatically reverse when it encounters jammed material during operation, ensuring that the machine will not damage the motor due to load. 4. The operation screen is easy to learn and practical. |
|
Conveyor Belt Transmission Part: Optional
Quantity: 1
