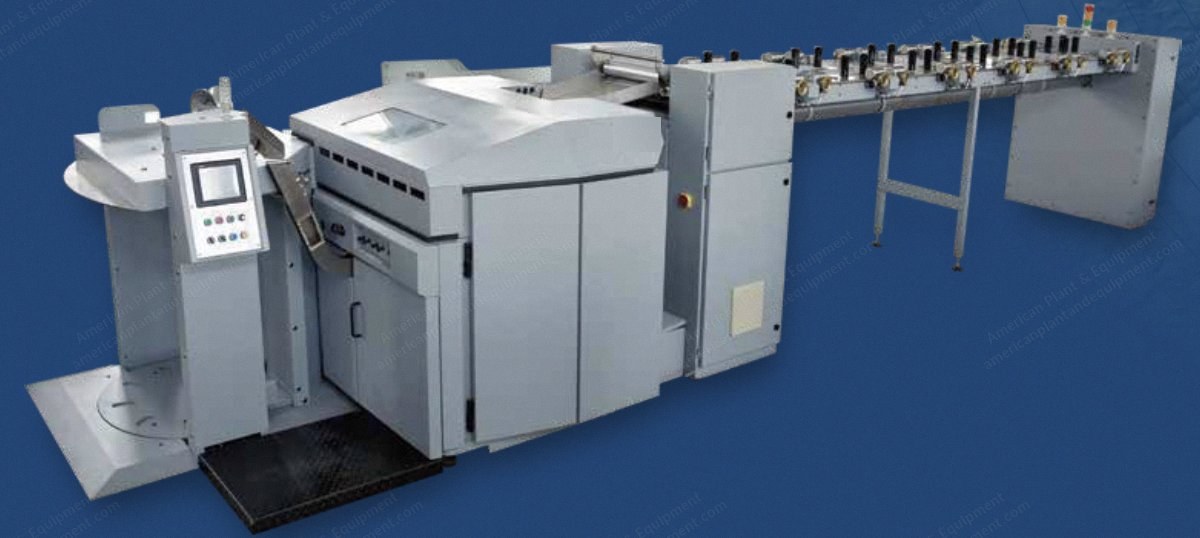

Description Overview Industrial machine for textile processing Specifications Speed: 30~260 cycles/min, controlled by inverter Main motor: 4 kW, 1500 rpm (adjustable-speed) Suction motor power: 2.2 kW, 3000 rpm Total power: 7.4 kW Feed load: 320~450 g/m Number of tops for cans or balls: 16~24 strip Feed grid internal width: 400 mm Feed comb pinned width: 410 mm Feed grid number: 9 row Feed length: 4.5~8.8 mm Nipper pinned width: 516 mm Circular comb: 152 Φ/mm Pinned width: 440 mm Front comb pinned width: 470 mm Drawing off cylinders: 25/28 Φ/mm, 33/33 (DB151(M)) Φ/mm Circular brush: 160 Φ/mm Circular brush with automatic forward motion: 430 mm Clothed doffer: 138 Φ/mm Apron: 580×540×3.5 mm Feeding can: 700×1000/1200 Φ/mm × W/mm, 800×1000/1200 Φ/mm × W/mm Ball creels: 550×550 Φ/mm × W/mm
