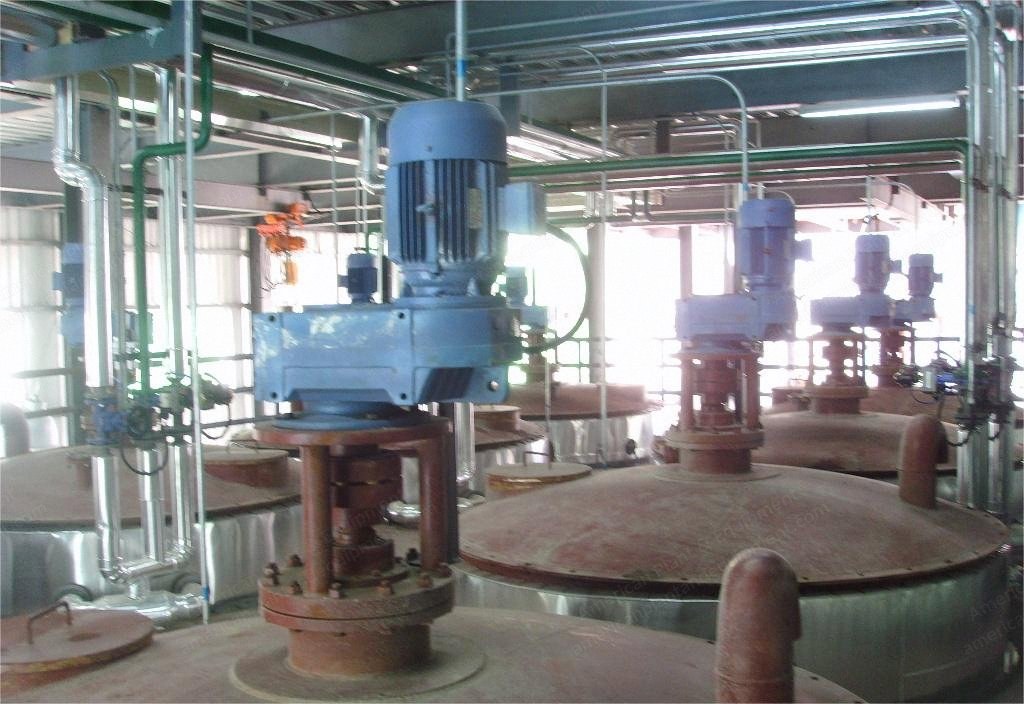

NovaStar, OF123, 120 Tons Per Day Capacity, Vacuum Freezing System, Stainless Steel 304 (New)

NovaStar, OF123, 120 Tons Per Day Capacity, Vacuum Freezing System, Stainless Steel 304

Description

  1. Overview
    1. 120 tons per day palm oil refining plant.
    2. Vacuum freezing system included.
  2. Equipment List
    1. Gross oil flowmeter, item Me101, 1 unit, 0 kW, with remote transmission, 0-5 tons/hour, stainless steel 304.
    2. Crude oil storage tank, item Tk101, 1 unit, 0 kW, Φ1200 x 3000, material Q235.
    3. Crude oil pump, item Pu101, 1 unit, 2.2 kW, working temperature normal temperature, Q 6.3 m³/h, H 32 m, pump head overall stainless steel 304.
    4. Crude oil filter, item Fl101, 2 units, 0 kW, working temperature normal temperature, stainless steel shell, internal stainless steel filter.
    5. Oil-oil heater exchanger, item Ex101, 1 unit, 0 kW, flow 5 tons/hour, plate, plate material 304, hot side 120-90°C, cold side 30-60°C, gasket NBR.
    6. Oil heater, item Ex102, 1 unit, 0 kW, medium vegetable oil and steam, flow 5 tons/hour, plate, plate material 304, 0.3 MPa saturated steam, hot side 130-130°C, cold side 30-90°C, gasket HNBR.
    7. Phosphoric acid tank, item Tk102, 1 unit, 0 kW, Φ500 x 800, material 316L.
    8. Phosphoric acid metering pump, item Pu102, 1 unit, 0.25 kW, 316L material, flow rate 26 L/h, including damper, back pressure valve.
    9. Multi-effect mixer, item M101, 1 unit, 3 kW, 304 material, adjustable speed motor.
    10. Acid oil reaction tank, item Tk103, 1 unit, 0 kW, Φ1200 x 3000, material 304.
    11. Multi-effect mixer, item M102, 1 unit, 3 kW, 304 material, adjustable speed motor.
    12. Neutralization reactor, item Tk104, 1 unit, 2.2 kW, Φ1200 x 2500, material 304, mechanical seal.
    13. Alkali refining oil supply pump, item Pu104, 1 unit, 2.2 kW, medium vegetable oil, working temperature 80°C, Q 6.3 m³/h, H 32 m, pump head overall stainless steel 304.
    14. Centrifuge heater, item Ex103, 1 unit, 0 kW, medium vegetable oil and steam, flow 5 tons/hour, plate, plate material 304, hot side 0.3 MPa saturated steam 130-130°C, cold side 80-95°C, gasket HNBR.
    15. Self-cleaning centrifuge, item F101, 1 unit, 15 kW, disc self-cleaning, medium sunflower oil, automatic slag discharge, capacity 100 tons/24 hours, supporting operation of water inlet Y filter, alkali refining use.
    16. Multi-effect mixer, item M103, 1 unit, 3 kW, 304 material, adjustable speed motor.
    17. Hold-up tank, item Tk105, 1 unit, 2.2 kW, Φ1200 x 2500, material Q235, mechanical seal.
    18. Wash oil output pump, item Pu105, 1 unit, 2.2 kW, medium vegetable oil, working temperature 80°C, Q 6.3 m³/h, H 32 m, pump head overall stainless steel 304.
    19. Self-cleaning centrifuge, item F102, 1 unit, 15 kW, disc self-cleaning, medium sunflower oil, automatic slag discharge, capacity 100 tons/24 hours, supporting operation water Y filter, washing use.
    20. Oil drying heater, item Ex104, 1 unit, 0 kW, medium vegetable oil and steam, flow 5 tons/hour, plate, plate material 304, hot side 130-130°C, cold side 85-105°C, gasket HNBR.
    21. Alkali mixing tank, item Tk106, 1 unit, 0 kW, 1200 x 1500 x 1200, working temperature 80°C, alkaline material, 304 material.
    22. NaOH solution circulating pump, item Pu106, 1 unit, 1.5 kW, medium NaOH solution, working temperature 80°C, Q 6.3 m³/h, H 20 m, pump head overall stainless steel 304.
    23. Lye tank, item Tk107, 1 unit, 0 kW, Φ1200 x 2000, material 304, with coil and direct steam.
    24. Lye dosing pump, item Pu107, 1 unit, 0.37 kW, 316L material, flow rate 460 L/h, including damper, back pressure valve.
    25. Soap tank, item Tk108, 1 unit, 0 kW, Φ1200 x 2000, material Q235, equipped with high and low level tuning fork switch, sight mirror.
    26. Soap output pump, item Pu108, 1 unit, 4 kW, gear pump, Q 12 m³/h.
    27. Water divide tank, item Tk109, 1 unit, 0 kW, Φ1200 x 2000, material Q235, equipped with high and low level tuning fork switch, sight mirror.
    28. Wash water pump, item Pu109, 1 unit, 2.2 kW, medium water, working temperature normal temperature, Q 6.3 m³/h, H 32 m, pump head overall stainless steel 304.
    29. Vacuum drying tank, item Tk110, 1 unit, 0 kW, Φ1200 x 2500, material Q235, with steam coil.
    30. Vacuum pump, item Pu110, 1 unit, 5.5 kW, water ring vacuum pump, pumping rate 1.5 m³/min.
    31. Polishing filter, item Fl102, 1 unit, 0 kW, working temperature 80°C, stainless steel shell, internal stainless steel filter.
    32. Refined oil cooler, item Ex105, 1 unit, 0 kW, medium vegetable oil and water, flow 5 tons/hour, plate, plate material 304, hot side 60-40°C, cold side 30-45°C, gasket NBR.
    33. Refined oil flowmeter, item Me102, 1 unit, 0 kW, with remote transmission, 0-5 tons/hour, stainless steel 304.
    34. Refined oil storage tank, item Tk111, 1 unit, 0 kW, Φ2000 x 4000, material Q235.
    35. Refined oil output pump, item Pu111, 1 unit, 2.2 kW, medium vegetable oil, working temperature normal temperature, Q 6.3 m³/h, H 32 m, pump head overall stainless steel 304.
    36. Steam trap, item St101, 1 unit, 0 kW, float type, DN25.
    37. Steam trap, item St102, 1 unit, 0 kW, float type, DN25.
    38. Steam trap, item St103, 1 unit, 0 kW, float type, DN25.
    39. Steam trap, item St104, 1 unit, 0 kW, float type, DN25.
    40. Steam trap, item St105, 1 unit, 0 kW, float type, DN25.
    41. Steam trap, item St106, 1 unit, 0 kW, float type, DN25.
    42. Steam trap, item St107, 1 unit, 0 kW, float type, DN25.
    43. Steam trap, item St108, 1 unit, 0 kW, float type, DN25.
    44. Steam trap, item St109, 1 unit, 0 kW, float type, DN25.
    45. Steam trap, item St110, 1 unit, 0 kW, float type, DN25.
    46. Steam trap, item St111, 1 unit, 0 kW, float type, DN25.
    47. Steam trap, item St112, 1 unit, 0 kW, float type, DN25.
    48. Steam trap, item St113, 1 unit, 0 kW, float type, DN25.
    49. Steam trap, item St114, 1 unit, 0 kW, float type, DN25.
    50. Steam trap, item St115, 1 unit, 0 kW, float type, DN25.
    51. Steam trap, item St116, 1 unit, 0 kW, float type, DN25.
    52. Steam trap, item St117, 1 unit, 0 kW, float type, DN25.
    53. Steam trap, item St118, 1 unit, 0 kW, float type, DN25.
    54. Steam trap, item St119, 1 unit, 0 kW, float type, DN25.
    55. Steam trap, item St120, 1 unit, 0 kW, float type, DN25.
    56. Steam trap, item St121, 1 unit, 0 kW, float type, DN25.
    57. Steam trap, item St122, 1 unit, 0 kW, float type, DN25.
    58. Steam trap, item St123, 1 unit, 0 kW, float type, DN25.
    59. Steam trap, item St124, 1 unit, 0 kW, float type, DN25.
    60. Steam trap, item St125, 1 unit, 0 kW, float type, DN25.
    61. Steam trap, item St126, 1 unit, 0 kW, float type, DN25.
    62. Steam trap, item St127, 1 unit, 0 kW, float type, DN25.
    63. Steam trap, item St128, 1 unit, 0 kW, float type, DN25.
    64. Steam trap, item St129, 1 unit, 0 kW, float type, DN25.
    65. Steam trap, item St130, 1 unit, 0 kW, float type, DN25.
    66. Steam trap, item St131, 1 unit, 0 kW, float type, DN25.
    67. Steam trap, item St132, 1 unit, 0 kW, float type, DN25.
    68. Steam trap, item St133, 1 unit, 0 kW, float type, DN25.
    69. Steam trap, item St134, 1 unit, 0 kW, float type, DN25.
    70. Steam trap, item St135, 1 unit, 0 kW, float type, DN25.
    71. Steam trap, item St136, 1 unit, 0 kW, float type, DN25.
    72. Steam trap, item St137, 1 unit, 0 kW, float type, DN25.
    73. Steam trap, item St138, 1 unit, 0 kW, float type, DN25.
    74. Steam trap, item St139, 1 unit, 0 kW, float type, DN25.
    75. Steam trap, item St140, 1 unit, 0 kW, float type, DN25.
    76. Steam trap, item St141, 1 unit, 0 kW, float type, DN25.
    77. Steam trap, item St142, 1 unit, 0 kW, float type, DN25.
    78. Steam trap, item St143, 1 unit, 0 kW, float type, DN25.
    79. Steam trap, item St144, 1 unit, 0 kW, float type, DN25.
    80. Steam trap, item St145, 1 unit, 0 kW, float type, DN25.
    81. Steam trap, item St146, 1 unit, 0 kW,
