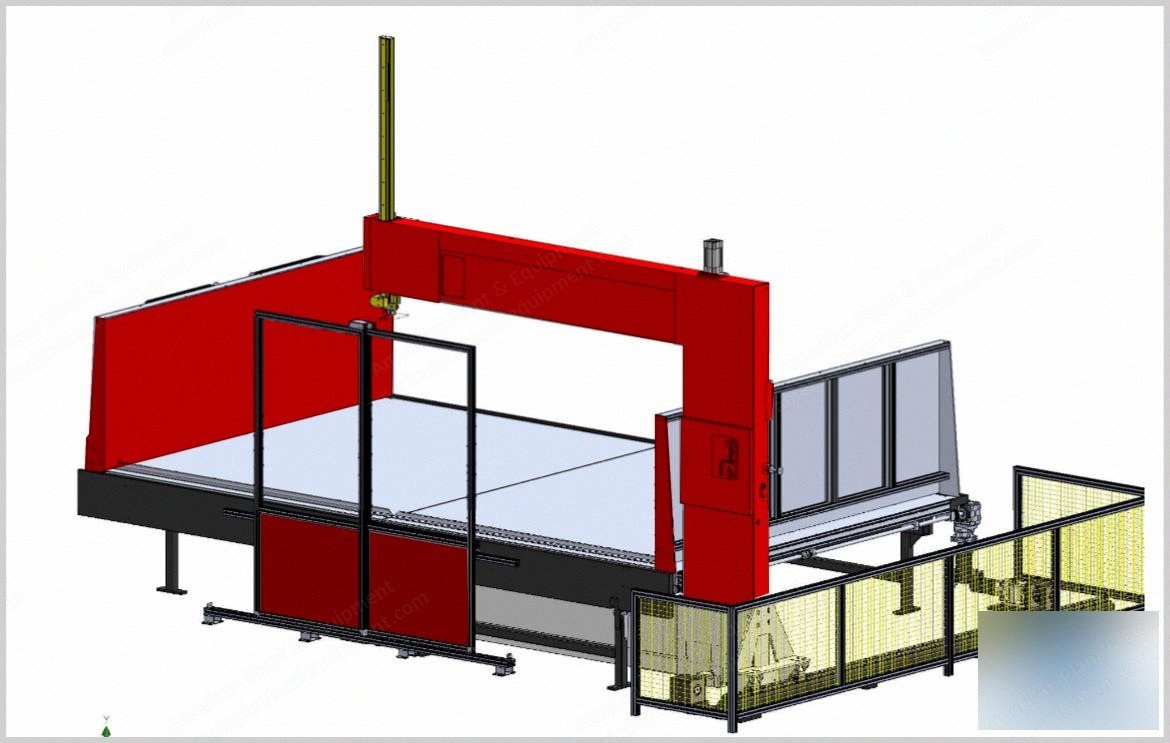

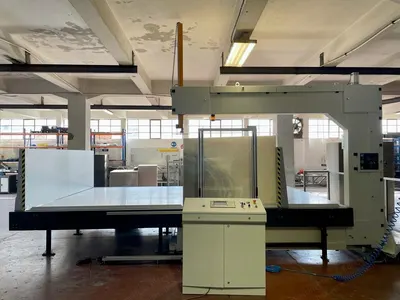

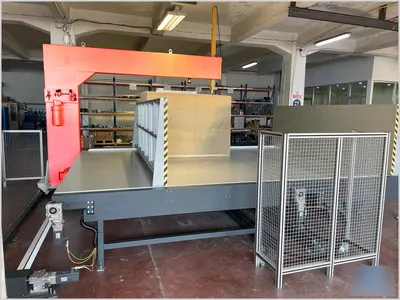

NovaStar, FN539, Vertical Foam Cutting Machine, 2025, Max Cutting Height 1275mm, Cutting Length 2225mm, 15.5kW (New)

NovaStar, FN539, Vertical Foam Cutting Machine, 2025, Max Cutting Height 1275mm, Cutting Length 2225mm, 15.5kW

Description

  1. Overview
    1. Machine type: Foam vertical cutting machine, automatic
    2. Model similar to: Fecken & Kirfel
    3. Year of construction: 2025

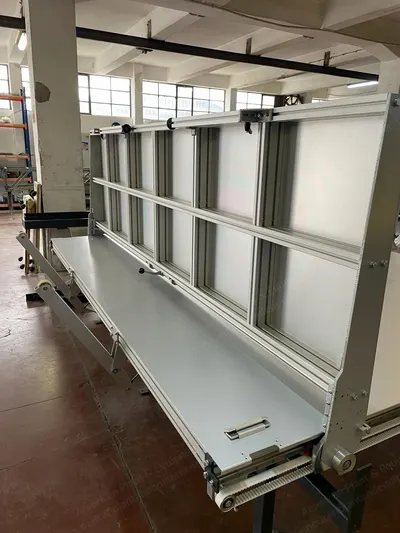

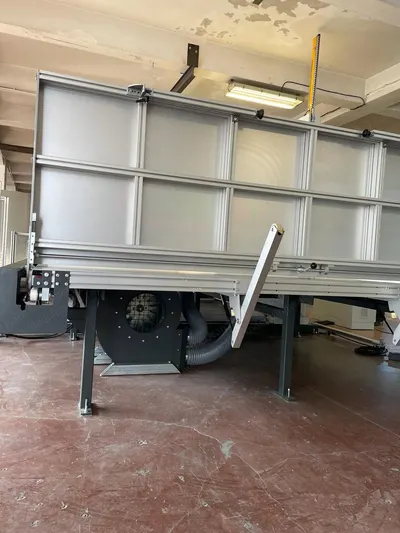

    4. Automatic vertical foam cutting machine with 2 side fences
    5. State-of-the-art technology
  2. Control and Drive
    1. Including Siemens Simatic control
    2. Siemens servo motors

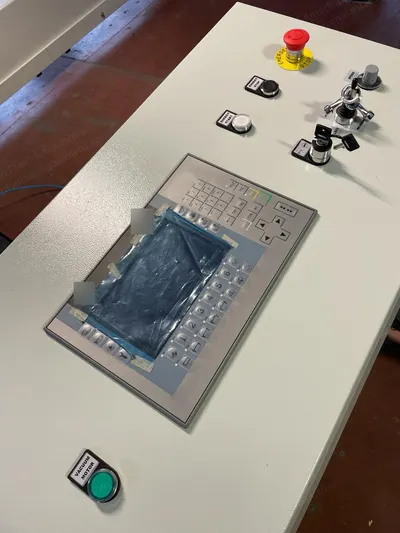

    3. Siemens touchscreen control panel mounted in a standing desk
  3. Warranty
    1. 2 years warranty
  4. Applications
    1. Suitable for trimming foam blocks, cutting of sheet material and rectangular cuts from a wide variety of materials such as PU soft and rigid foam, PE, EPDM, nonwoven material, Basotect, rock and glass wool
  5. Specifications
    1. Voltage: 400 V 3 PHASES, N / PE / 50/60 Hz
    2. Dimensions: Total machine height 2950mm
    3. Cutting length: 2225mm
    4. Max cutting height: 1275mm
