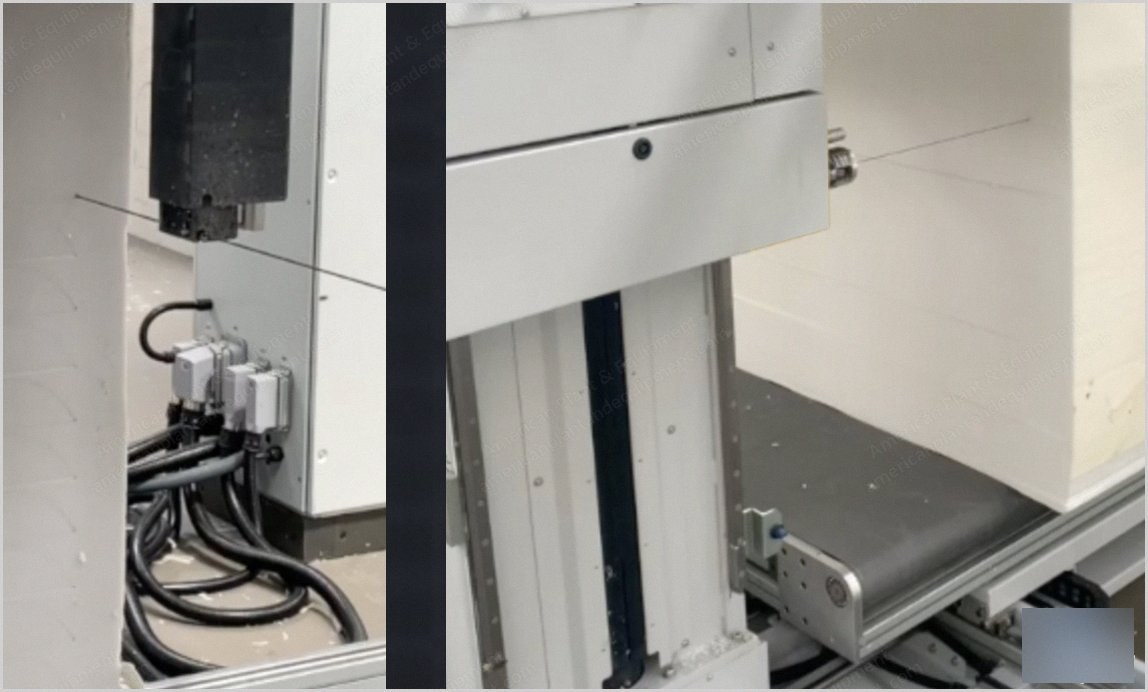

NovaStar, FN540, CNC Foam Cutting Machine, Width 2300-2600mm, Siemens Servo Motors (New)

NovaStar, FN540, CNC Foam Cutting Machine, Width 2300-2600mm, Siemens Servo Motors

Description

  1. Overview
    1. Equivalent to Baumer FS 222 with an improved central arm.
    2. Manufactured according to European standards and has CE certification.
  2. Cutting Dimensions
    1. Standard width: 2300 mm; optional width: 2600 mm.
    2. Standard length: 2300 mm; optional length: 2600 mm.
    3. Standard height: 1300 mm; optional height: 1500 mm.
  3. Cutting Properties
    1. Cutting speed: 0 to 40 m/min.

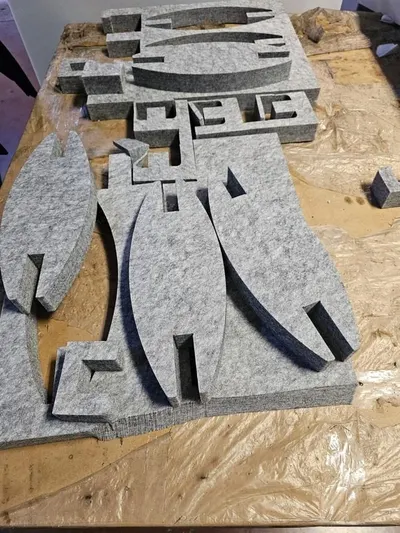

    2. Flexible PU foam in different densities (polyester and polyether).
  4. Standard Properties

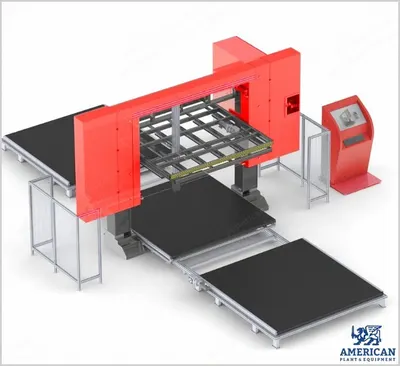

    1. Automatic turntable system: a table system with a conveyor whose table can automatically rotate 90° for products that will be cut with two axes, and which is also suitable for product loading and unloading system.

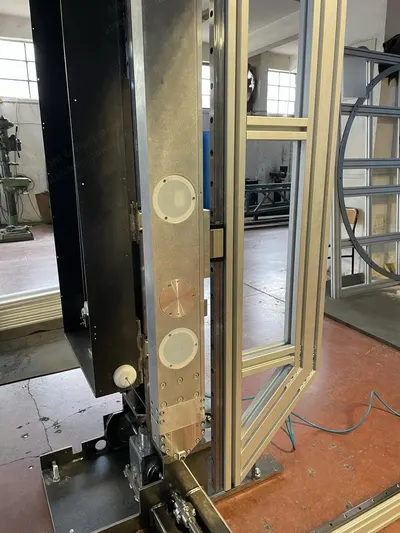

  5. Moveable Blade Guide System
    1. A guiding system with automatic servo system for precise cutting of wide products and two separate products at the same time.
  6. Sharpening Unit
    1. Automatic time defined grinding system with stable and powerful motor driven grinding unit.
  7. Optional Properties
    1. Loading and unloading conveyor system: a transfer system installed at the entrance and exit of the table so that the cutting process can continue uninterrupted, providing continuous product flow and convenience to the cutting line.
  8. Key Details
    1. Siemens servo motor controlled axes.
    2. Frequency controlled asynchronous motors.
    3. Safety gate and security barriers that can be opened.
    4. English and German interfaces available.
    5. Automatic block size detection system.
    6. Equivalent to Baumer FS 222.
    7. With an improved central arm.
