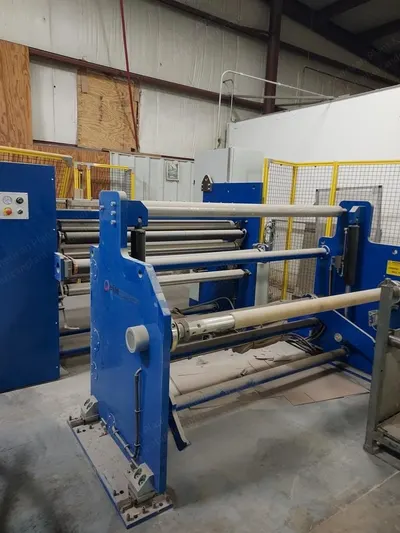

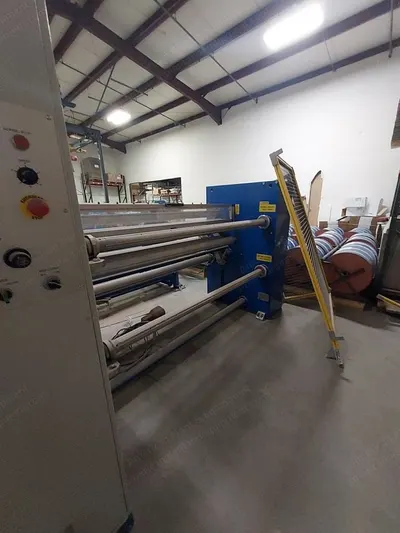

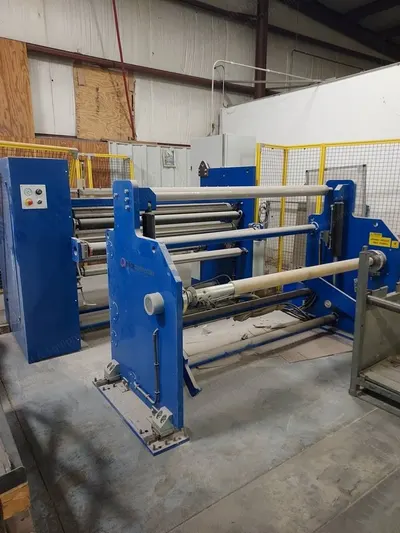

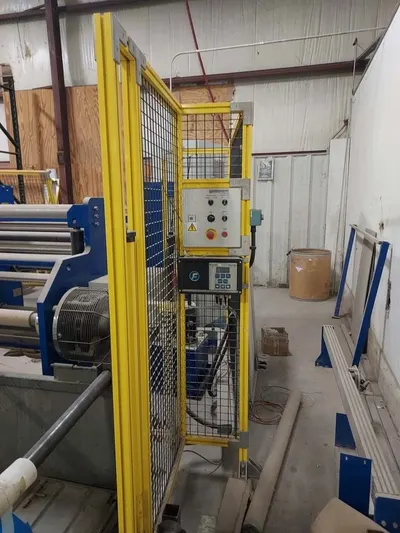

Elite Cameron, CW800, 2017, Duplex Slitter Rewinder, 86 inch Max Web Width, Score Cut

Elite Cameron, CW800, 2017, Duplex Slitter Rewinder, 86 inch Max Web Width, Score Cut

Description

  1. Overview
    1. Elite Cameron CW800 slitter rewinder
    2. Score cut (crush cut) slitting method
    3. Machine type: duplex slitter rewinder
    4. Machine model: CW800
    5. Manufactured: February 2017
  2. Materials
    1. Materials to be run: rubber (cured/uncured)
    2. Material thickness: 0.007 in to 0.500 in (0.020 in to 0.110 in most common)
  3. Web and Width Specifications
    1. Maximum material width: 86 in / 2185 mm
    2. Maximum web width: 86 in (2185 mm)
    3. Minimum slit width: 1 in / 25 mm
  4. Unwind Specifications
    1. Type of unwind: shafted with pick-up
    2. Maximum unwind diameter: 48 in / 1220 mm
    3. Maximum unwind weight: 1600 lbs / 730 kg
    4. Unwind tension control: automatic
    5. Unwind core sizes: 3 in / 76 mm
    6. Core material: cardboard
  5. Rewind Specifications
    1. Maximum rewind diameter: 32 in / 800 mm
    2. Rewind tension control: automatic
    3. Maximum rewind weight: 1400 lbs / 640 kg (bottom shaft), 660 lbs / 300 kg (top shaft)
    4. Rewind core sizes: 3 in / 76 mm
    5. Type of rewind: differential lift out

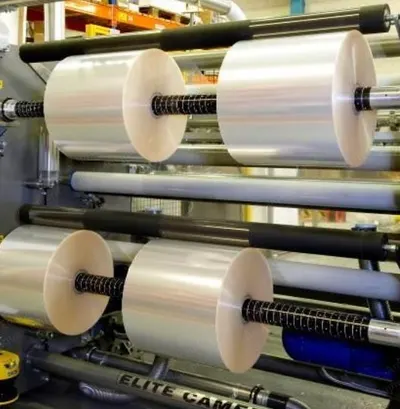

    6. Duplex rewinds
    7. Finished roll weight (bottom rewind shaft): 1400 lb
    8. Weight rating on bottom rewind shaft: 1400 lb (635 kg)
  6. Slitting
    1. Slitting method: score/crush (12 knives)
    2. Score slitting section with 12 knives
  7. Speed and Drives
    1. Maximum machine speed: 1000 ft/min / 300 m/min (to be confirmed)

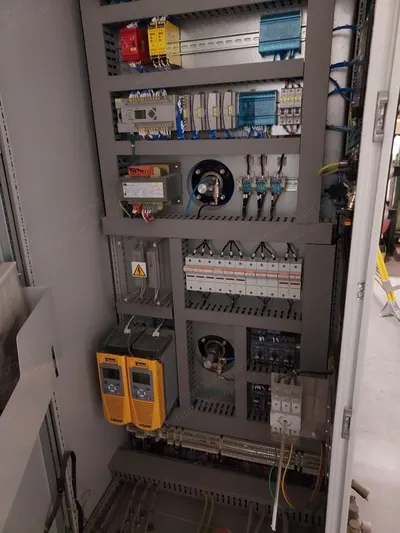

    2. Latest AC vector drives
    3. Two motor heavy duty AC drive
    4. Two motor drives
  8. Controls and Features
    1. Automatic tension control
    2. Automatic unwind tension control
    3. Automatic rewind tension control (taper control)
    4. Edge guiding
    5. Automatic edge guide
    6. Slack edge adjustment
    7. Laser core and knife setting
    8. Laser core and knife positioning
    9. Length counter and controls
    10. Digital length and diameter counter

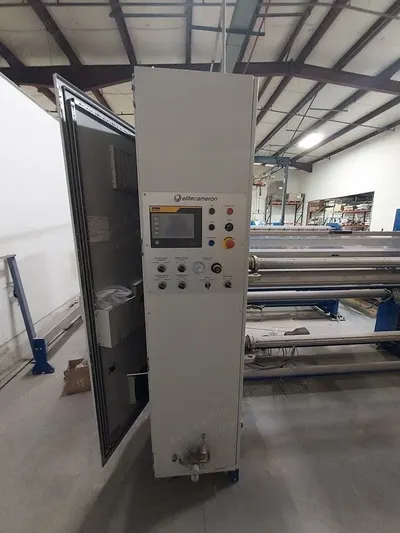

    11. Color touch screen controls
    12. Allen Bradley PLC
    13. Bowed roll
  9. Shafts and Configuration
    1. Lift out differential shaft
    2. Two lift out 3 in differential rewind shafts
    3. Shafted unwind with pick up
    4. One shafted pickup unwind
  10. Construction
    1. Jig bored, plough ground plate side frames
  11. Included Documentation
    1. All manuals and layout diagrams included for physical, hydraulic and electrical systems
