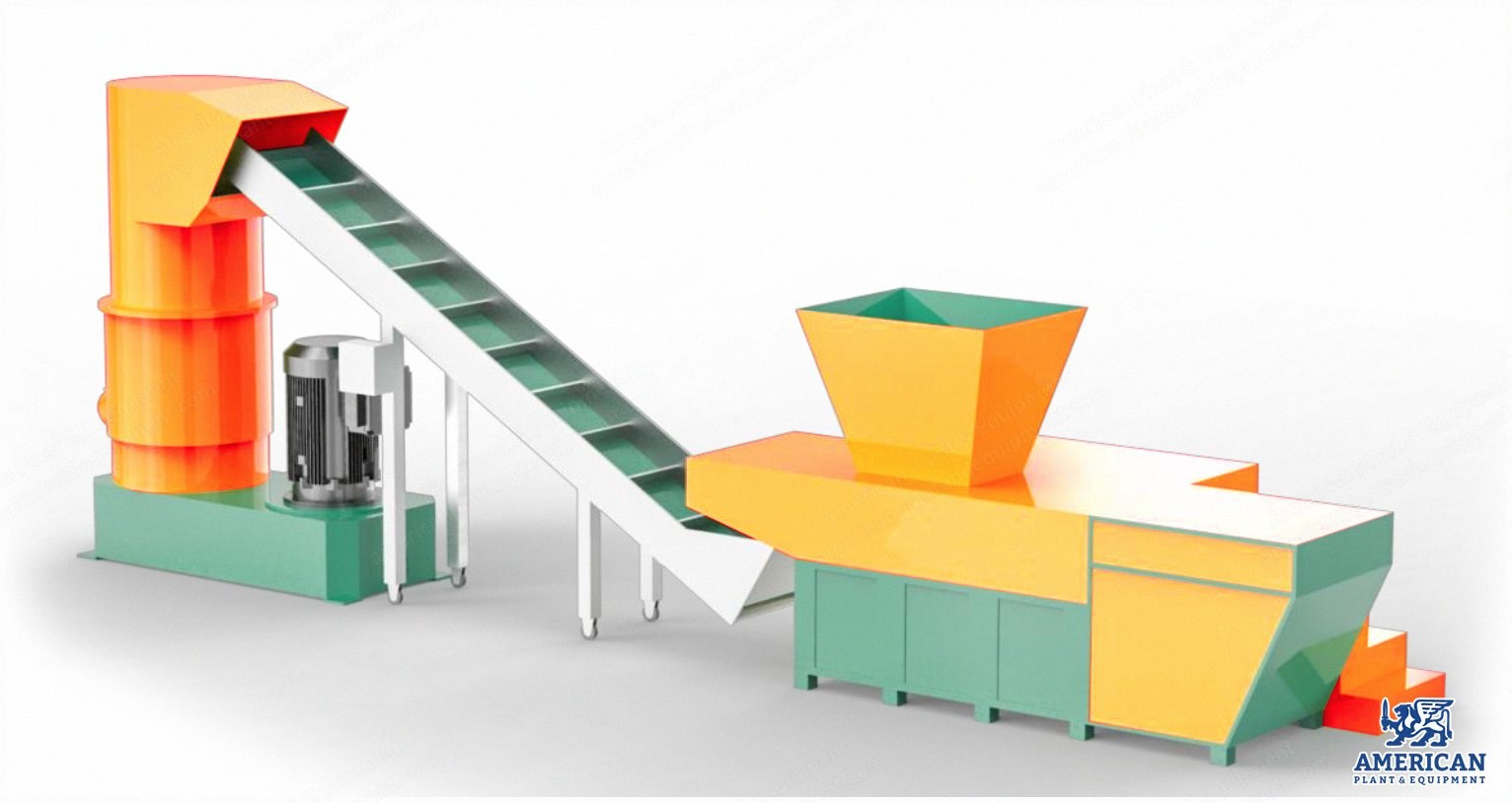

NovaStar, SG293, Plastic Agglomerator with Shredder, 400 to 500 kg/h, 132kW (New)

NovaStar, SG293, Plastic Agglomerator with Shredder, 400 to 500 kg/h, 132kW

Description

  1. Overview
    1. Function: Densify the film for better regranulation.
    2. Solution for plastic agglomeration.
  2. Advantages
    1. Widely applicable to multiple types of plastic.
    2. Equipped with low-temperature granulation without any damage to the physical properties of materials.
    3. Simple structure which is capable of fulfilling crushing and mixing simultaneously.
    4. Brilliant exhaust effect without bubbles.
    5. High production efficiency and low energy consumption.
    6. Low space requirements with an exquisite footprint.
  3. Applicable Materials
    1. PP film materials.
    2. PVC film materials.
    3. LDPE film materials.
    4. HDPE film materials.
    5. Recycled film.
  4. Plastic Agglomerator Specifications
    1. Motor power: 132 kW.
    2. Production capacity: 400 to 500 kg/h.
    3. Fixed knife: 10.
    4. Rotary knife: 4.
    5. Weight: 5,500 kg.
    6. Output mode: pneumatic.
  5. Shredder Specifications
    1. Rotary shaft diameter: 350 mm.
    2. Cutter shaft length: 850 mm.
    3. Rotary knives: 39.
    4. Cutter shaft speed: 60 rpm.
    5. Fixed knives: 2.
    6. Motor power: 45 kW.
    7. Weight: 6,000 kg.
    8. Dimension: 4150 L x 1900 W x 2450 H mm.
  6. Conveyor Specifications
    1. Motor power: 2.2 kW.
    2. Material: PVC.
    3. Width: 900 mm.
  7. Specifications
    1. Weight: 11500
