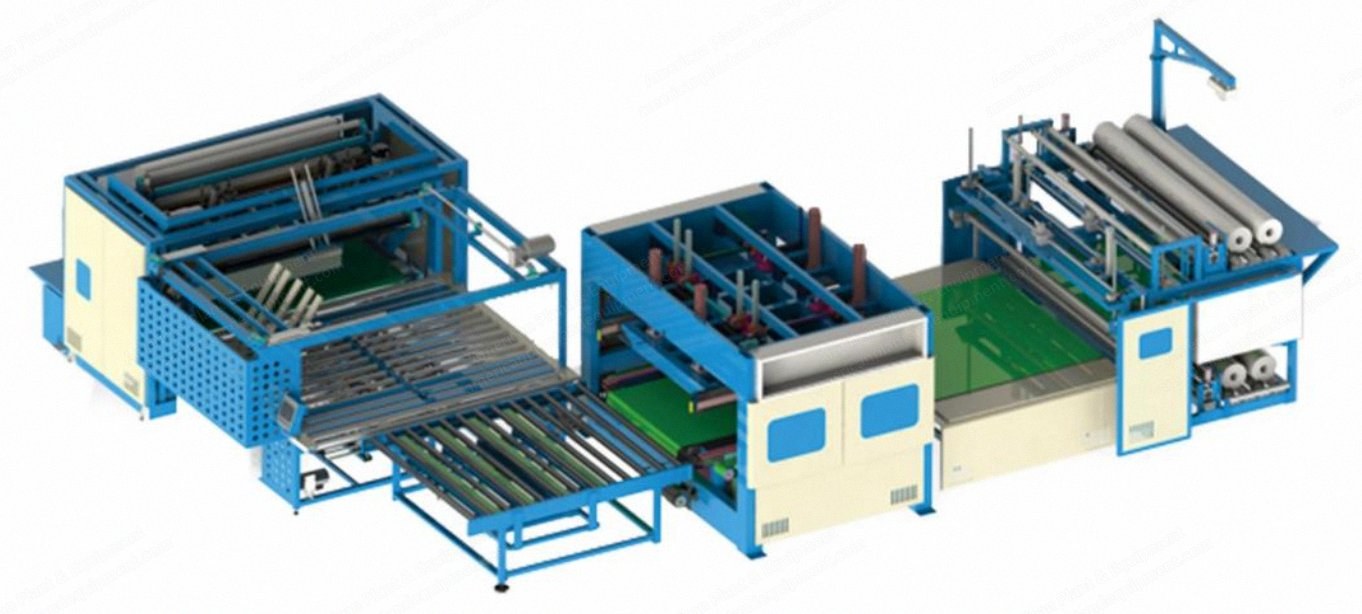

NovaStar, MP209, Auto Mattress Compression Folding and Roll Packing Production Line, 100T Pressure, 38 kW (New)

NovaStar, MP209, Auto Mattress Compression Folding and Roll Packing Production Line, 100T Pressure, 38 kW

Description

  1. Overview
    1. This packing line is suitable for mattress compressing, folding and roll packing process in a flow line production.
    2. The mattress starts from film feeding, compressing, folding and then roll packing, all controlled by computer and completely automatic until finish, high efficiency.
    3. The whole set of packing line includes below equipments.
    4. Automatic mattress compressing machine: 1 set (two kinds of packing way could be optional).
    5. Automatic mattress folding machine: 1 set (could be optional).
    6. Automatic mattress roll packing machine: 1 set.
    7. Two packing ways: compress rollpack / pack only.
  2. Specifications
    1. Apply for mattress type: pocketed spring mattress / spring mattress / foam mattress / latex mattress.
    2. Use of packing material: PE film.
    3. Thickness range for packaging film: 0.06 ⁓ 0.15 mm.
    4. Maximum packaging film width for compress machine: 2650 mm (2800 mm is for two packaging way).
    5. Packaging film width for roll pack machine: plus 100 mm on mattress width.
    6. Mattress length range: 1900 to 2200 mm.
    7. Mattress width range: 800 to 2200 mm.
    8. Mattress height range: 50 to 500 mm.
    9. Outlet diameter range (adjustable): 200 mm to 550 mm.
    10. Production efficiency: 30 s/1 pc.
    11. Air consumption: >= 0.43 m³/min, 12 mm weasand.
    12. Air supply: 0.6 to 0.8 MPa.
    13. Total power: 38 kW (40 kW is for two packaging way).
    14. Breaker: 100 A, 4P.
    15. Pressure: 100 T.
    16. Total machine weight: 17000 kg.
