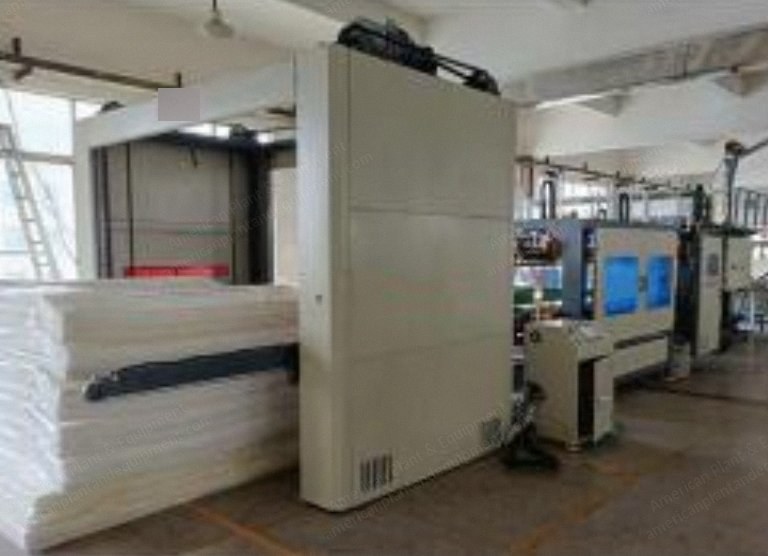

NovaStar, MA261, Mattress Stacking Machine, Max Mattress Size 2200x2200mm, 30s/pcs (New)

NovaStar, MA261, Mattress Stacking Machine, Max Mattress Size 2200x2200mm, 30s/pcs

Description

  1. Overview
    1. Two stacking machines available: one standard stacking machine and one both-sides stacker.
    2. Working principle: the mattress is fed into the equipment by the roller line and accurately positioned by photoelectricity; the motor pulls the entire tooling up and down for stacking and positioning, and the whole chopped mattresses are stacked through the synchronous belt and the roller line relative reverse conveying.
  2. Specifications
    1. Standard stacking machine equipment floor space: 4900 mm x 3412 mm.
    2. Both-sides stacker equipment floor space: 3270 mm x 3212 mm.
    3. Maximum mattress size: 2200 x 2200 mm.
    4. Maximum height: 2200 mm.
    5. Production efficiency: 30 s per piece.
  3. Product Features
    1. Ring from power conveying structure, stable power transmission, smooth up and down lifting movement, synchronous action.
    2. Linear guide for guidance, stable movement, long service life.
    3. There is a pallet limit on the bottom and a rear limit on the tooling, which makes the stack more neat and easy to operate and place.
    4. PLC intelligent control can achieve a variety of intelligent distribution of multiple units.
    5. The mattress stacking machine can be equipped with a production line, for example configured on the back side of the gluing machine line, the back side of the automatic edge tape machine, the back side of the automatic packing machine, or the back side of the automatic foam trimming machine to achieve automatic stack.
