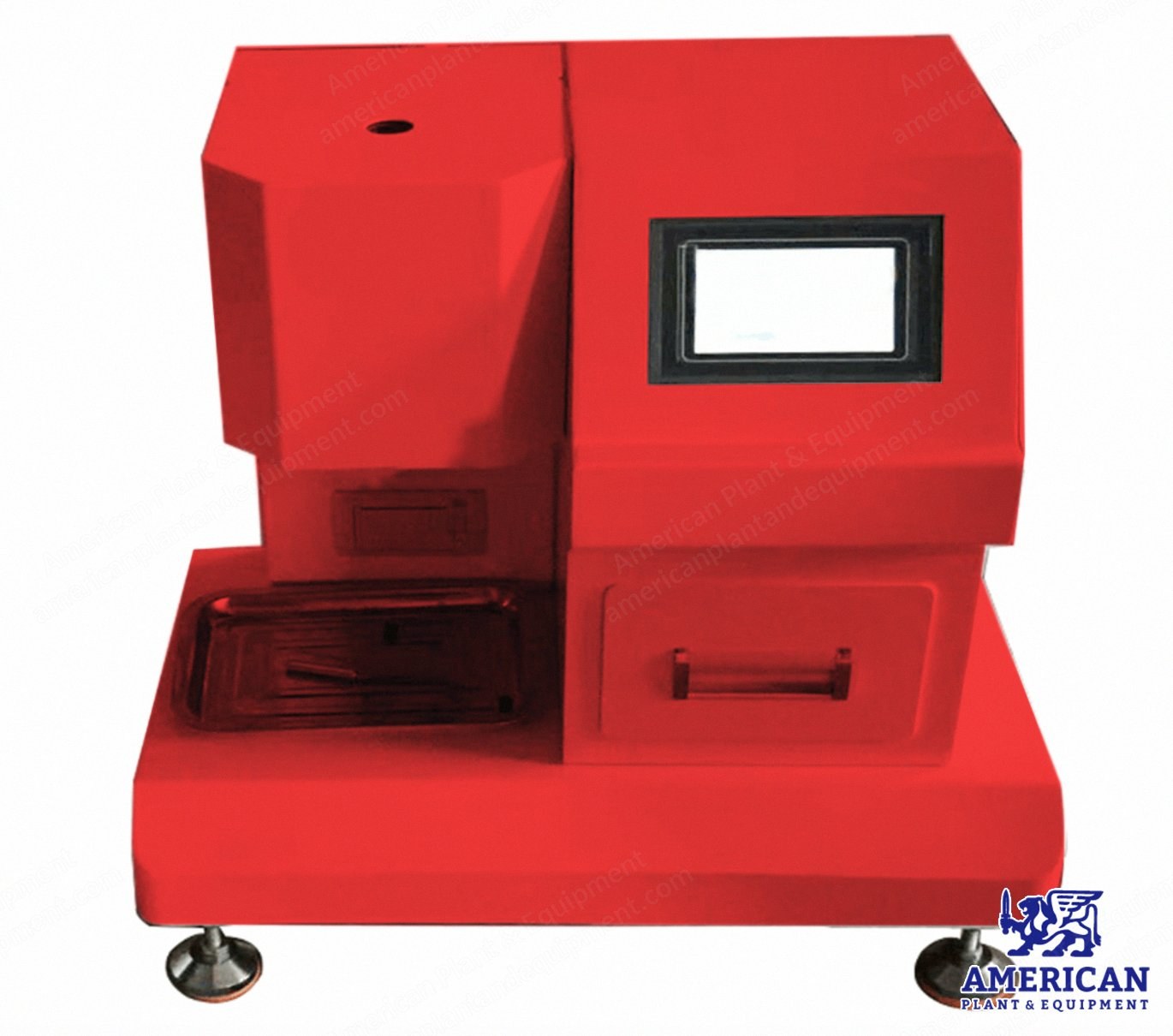

NovaStar, MC322, Melt Flow Rate Tester, RT to 400 °C, 8 Level Test Load, 370x600x580mm (New)

Description

Overview
1. Used to measure the MFR value of various polymers such as polycarbonate, polysulfonate, nylon, resin, etc.
Specifications
1. Temperature range: RT ~ 400 °C
2. Temperature accuracy: ± 0.5 °C
3. Standard test load: 8 level
4. Temperature display resolution: 0.1 °C
5. Temperature recovery time: < 4 mins
6. Outlet diameter: 2.095 mm ± 0.005 mm
7. Length of discharge port: 8 mm ± 0.025 mm
8. Loading cartridge diameter: 9.550 mm ± 0.025 mm
9. Loading tube length: 152 mm ± 0.1 mm
10. Piston rod diameter: 9.475 mm ± 0.015 mm
11. Piston rod length: 6.350 mm ± 0.100 mm
12. Dimensions: 370 × 600 × 580 mm
13. Weight: 26 kgs
Features
1. Digital LCD screen for visual monitoring of data.
2. Quick isothermal state restoration.
3. Easy calibration and correction of test parameters.
4. Printing adaptation provides long-lasting data collection.

HS code	9027.89

Capacity	RT ~ 400 °C
Length of Discharge Port	8 mm
Loading Cartridge Diameter	9.55 mm
Loading Tube Length	152 mm
Piston Rod Diameter	9.475 mm
Piston Rod Length	6.35 mm
Standard Test Load	8
Temperature Display Resolution	0.1 °C
Temperature Recovery Time	< 4 mins
