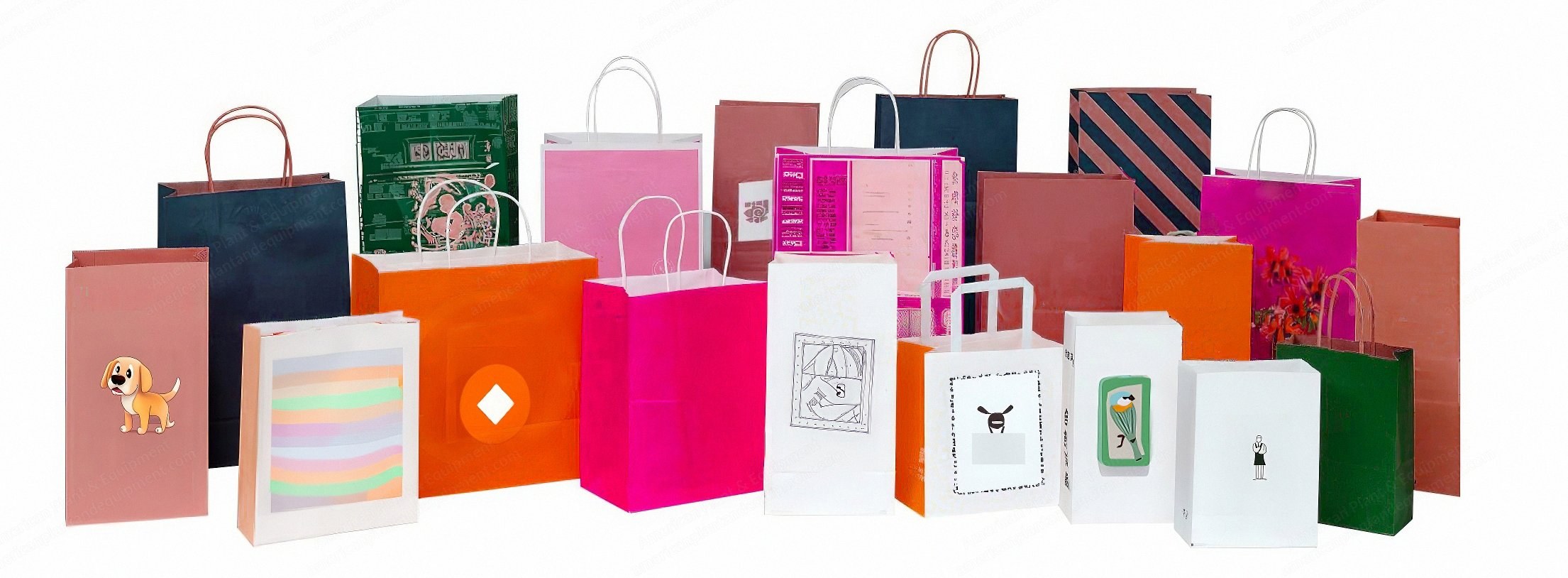

NovaStar, BS137 Series, Paper Bag Making Machine, Square and V-Bottom, 30-150gsm, Up to 280pcs/min (New)

NovaStar, BS137 Series, Paper Bag Making Machine, Square and V-Bottom, 30-150gsm, Up to 280pcs/min

Description

  1. Overview
    1. The YY-3172 series encompasses a range of paper Bag making machines tailored for the production of V-bottom and square-bottom Bags.
    2. This series includes options for incorporating windows and various handle types such as flat and twisted.
    3. Specifications across the models demonstrate capabilities for handling paper weights between 30 to 150 gsm and producing Bags at speeds up to 280 pieces per minute.
    4. These machines are designed to work with paper rolls up to 1500 mm in diameter.
    5. Additional functionalities, such as inline printing and die cutting, are available to meet specific production requirements.
    6. Each machine offers different settings for paper Bag dimensions, operational speed, and power consumption to accommodate diverse manufacturing needs efficiently.
  2. Machine Series And Features
    1. A series paper Bag machine: produces square bottom Bags; option for handles or no handles; choice of twisted or flat handles.
    2. B series paper Bag machine: produces square bottom Bags; no handles.
    3. C series paper Bag machine: produces V-bottom Bags; option for windows or no windows.
  3. A Series Paper Bag Machine With Inline Handle
    1. Handle type: flat handle or twisted handle.
    2. Handle rope height: 90 to 120 mm depending on model.
    3. Handle patch width: 45 to 50 mm.
    4. Handle rope length: 114 to 190 mm depending on model.
    5. Handle rope diameter: 3 to 6 mm depending on model.
    6. Handle patch diameter: 200 mm.
    7. Handle patch paper roll width: 4 to 100 mm.
    8. Handle patch weight: 100 to 140 g.
  4. A Series Model Specifications
    1. Model A 0220: paper diameter ≤1500 mm, core inner diameter 76 mm, paper weight 70 to 140 gsm, paper Bag width 120 to 320 mm, paper tube length 280 to 530 mm, bottom width 50 to 120 mm, paper roll width 290/370 to 780 mm, machine speed 150 pcs/min, total power 32 kW, machine weight 13000 kg, machine dimensions L12 x W5 x H3.2 m.
    2. Model A 0330: paper diameter ≤1500 mm, core inner diameter 76 mm, paper weight 80 to 140 gsm, paper Bag width 240 to 450 mm, paper tube length 320 to 650 mm, bottom width 50 to 120 mm, paper roll width 490/610 to 1050 mm, machine speed 150 pcs/min, total power 32 kW, machine weight 16000 kg, machine dimensions L14 x W6 x H3.5 m.
    3. Model A 0400: paper diameter ≤1500 mm, core inner diameter 76 mm, paper weight 80 to 140 gsm, paper Bag width 240 to 450 mm, paper tube length 320 to 650 mm, bottom width 50 to 120 mm, paper roll width 490/610 to 1050 mm, machine speed 150 pcs/min, total power 34 kW, machine weight 18000 kg, machine dimensions L15 x W6 x H3.5 m.
    4. Model A 0450: paper diameter ≤1500 mm, core inner diameter 76 mm, paper weight 90 to 140 gsm, paper Bag width 240 to 450 mm, paper tube length 320 to 650 mm, bottom width 50 to 120 mm, paper roll width 490/610 to 1050 mm, machine speed 150 pcs/min, total power 34 kW, machine weight 18000 kg, machine dimensions L15 x W6 x H3.5 m.
    5. Model A 0460: paper diameter ≤1500 mm, core inner diameter 76 mm, paper weight 90 to 140 gsm, paper Bag width 320 to 550 mm, paper tube length 320 to 770 mm, bottom width 90 to 260 mm, paper roll width 650/690 to 1470 mm, machine speed 130 pcs/min, total power 34 kW, machine weight 21000 kg, machine dimensions L16 x W6 x H3.5 m.
    6. Model A 0560: paper diameter ≤1500 mm, core inner diameter 76 mm, paper weight 90 to 140 gsm, paper Bag width 320 to 550 mm, paper tube length 320 to 770 mm, bottom width 90 to 260 mm, paper roll width 770 to 1670 mm, machine speed 100 pcs/min, total power 34 kW, machine weight 22000 kg, machine dimensions L16 x W6 x H3.5 m.
  5. B Series Paper Bag Machine (Without Handle)
    1. Standard Bag types: SOS Bag, food Bag, shopping Bag.
    2. Customized options: die cut Bag, window Bag, double layers Bag, inline 2/4 color print unit.
  6. B Series Model Specifications
    1. Model B 220: paper Bag length 190 to 430 mm, paper Bag width 80 to 220 mm, paper Bag bottom width 50 to 120 mm, paper thickness 45 to 150 g/m², machine speed 280 pcs/min, paper roll width 290 to 710 mm, roll paper diameter ≤1500 mm, machine power 3-phase 4-wire 380 V 15 kW, machine weight 8000 kg, machine dimensions L10 x W4.5 x H3 m.
    2. Model B 330: paper Bag length 280 to 530 mm, paper Bag width 150 to 330 mm, paper Bag bottom width 70 to 180 mm, paper thickness 60 to 150 g/m², machine speed 220 pcs/min, paper roll width 470 to 1050 mm, roll paper diameter ≤1500 mm, machine power 3-phase 4-wire 380 V 8 kW, machine weight 10000 kg, machine dimensions L12 x W5 x H3.2 m.
    3. Model B 400: paper Bag length 280 to 600 mm, paper Bag width 150 to 400 mm, paper Bag bottom width 90 to 200 mm, paper thickness 70 to 150 g/m², machine speed 200 pcs/min, paper roll width 510 to 1230 mm, roll paper diameter 1300 mm, machine power 3-phase 4-wire 380 V 15.5 kW, machine weight 12000 kg, machine dimensions L13 x W5.5 x H3.5 m.
    4. Model B 450: paper Bag length 280 to 600 mm, paper Bag width 150 to 450 mm, paper Bag bottom width 90 to 200 mm, paper thickness 70 to 150 g/m², machine speed 200 pcs/min, paper roll width 510 to 1230 mm, roll paper diameter ≤1500 mm, machine power 3-phase 4-wire 380 V 18 kW, machine weight 14000 kg, machine dimensions L14 x W5.5 x H3.5 m.
    5. Model B 460: paper Bag length 320 to 770 mm, paper Bag width 220 to 460 mm, paper Bag bottom width 90 to 260 mm, paper thickness 70 to 150 g/m², machine speed 150 pcs/min, paper roll width 650 to 1470 mm, roll paper diameter ≤1500 mm, machine power 3-phase 4-wire 380 V 25 kW, machine weight 16000 kg, machine dimensions L15 x W6 x H3.5 m.
    6. Model B 560: paper Bag length 320 to 770 mm, paper Bag width 280 to 560 mm, paper Bag bottom width 90 to 260 mm, paper thickness 80 to 150 g/m², machine speed 150 pcs/min, paper roll width 770 to 1670 mm, roll paper diameter ≤1500 mm, machine power 3-phase 4-wire 380 V 27 kW, machine weight 18000 kg, machine dimensions L16 x W6 x H3.5 m.
