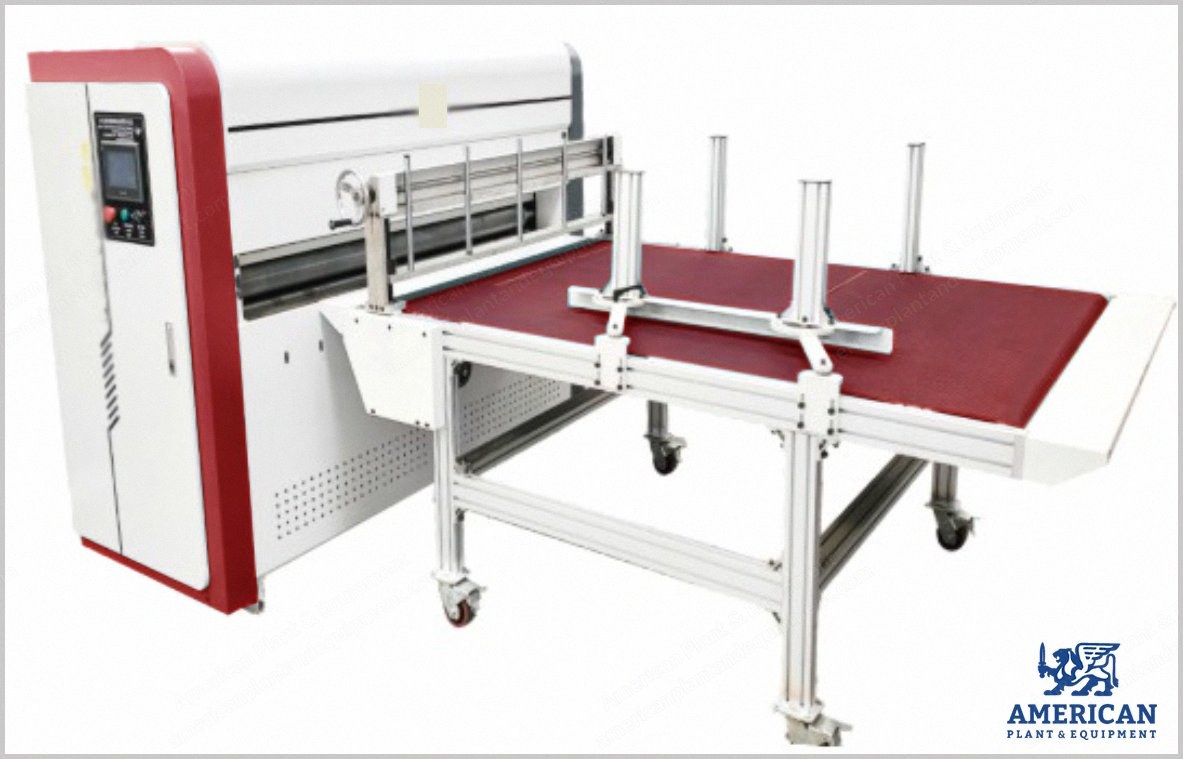

Description Application Mainly used for cutting whole piece or roll of polyester web material into small pieces of material in different sizes. Features PLC programmable control system with servo motor feeding. Cuts materials in multi-size with multi-knife. Feed automatically trims the section between two edges. Adjustment numerical control by the pressing roller, and cutting speed is adjustable. Cutting size can be adjusted, and the CNC automatically adjusts the required size for cutting. Specifications Model: standard and large configuration. Maximum feed width: 1300 mm (standard), 1600 mm (large). Cutting material thickness: 3 mm to 100 mm (both configurations). Left and right round knife slitting width: 25 mm to 1300 mm (standard), 60 mm to 1600 mm (large). Front and rear cross knife slitting width: 5-infinite (both configurations). Cutting speed: adjustable, 0 to 1 m/s (both configurations). Dimensions (L x W x H): 1950 x 920 x 1320 (standard), 2220 x 990 x 1550 (large). Work bench (L, W and L): 2400 x 1422 x 1370 (both configurations). Weight: 805 kg (standard), 1000 kg (large). Total power: 4.65 kW (standard), 6.65 kW (large). Voltage: three-phase 480 V + 1N (both configurations). Round knife adjustment: manual (standard), automatic (large). Horizontal knife adjustment: automatic (both configurations). Standard round knife: 5 pcs (standard), 10 pcs (large). Standard horizontal knife: 1 pc (both configurations). Air pressure: 0.4 to 0.8 MPa (both configurations). Required wire: 3 x 2.5² + 1 x 1.5² (standard), 3 x 4² + 1 x 1.5² (large).
