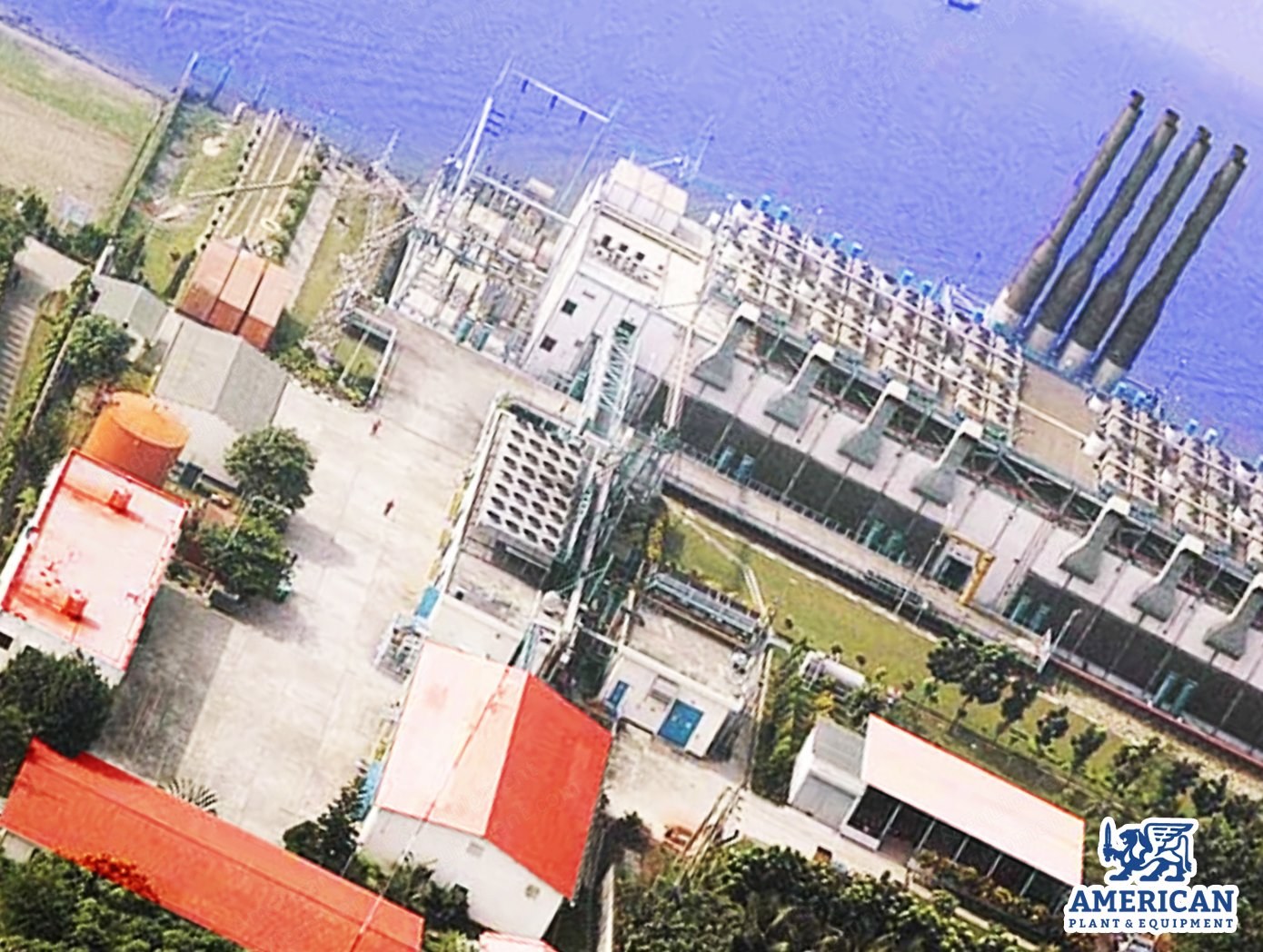

Wartsila, 18V46GD, 2000, 110MW, Barge Mounted Power Plant, 8x Engines, 50 Hz

Wartsila, 18V46GD, 2000, 110MW, Barge Mounted Power Plant, 8x Engines, 50 Hz

Description

  1. Overview
    1. The power barge entered commercial operation in 2000.
    2. It has a capacity of 130 MW with a power purchase agreement contracted output of 110 MW.
    3. It was constructed with 8 units of dual fuel Wartsila engines which fire on both heavy fuel oil and compressed natural gas (CNG) to generate electricity.
    4. Electricity is generated through a shaft connection to an ABB generator which runs at 500 rpm.
    5. Electricity generated by the 8 Wartsila engines is 15 kV at 50 Hz.
    6. The ABB generator output is delivered to 2 ABB main step-up transformers on-board the barge.
  2. Facility Composition
    1. The power plant facility is comprised of one floating power barge and one gas compressor house.
    2. It includes the auxiliary equipment required to run the operation.
    3. It includes various office and storage buildings together with a comprehensive workshop.
  3. Configuration and Layout
    1. On the main engine hall of the barge, the 8 generators are arranged in parallel.
    2. Below the main engine hall, there are segregated pump room spaces containing fuel and lube oil treatment plants, cooling water system and other ancillary systems.
    3. These spaces also contain storage/service tanks for fuel oil/lube oil and other service tanks.
  4. Specifications
    1. Rating: 110 MW.
    2. Type: barge mounted.
    3. Manufacturer: Wartsila.
    4. Model: 18V46GD.
    5. Fuel: natural gas and HFO.
    6. Frequency: 50 Hz.
    7. Age: 2000.
  5. Condition
    1. The condition of the hull body is satisfactory.
    2. The hull is protected with a cathode hull protection system.
  6. Included
    1. Many brand new spare parts will go with the barge.
  7. Availability
    1. Available for inspection on request.
    2. Available to move immediately.
