NovaStar, CZ132, Regranulation Line for Shredded Pipes, 800-1000 kg/h Capacity, 134.5 kW Total Power (New)

NovaStar, CZ132, Regranulation Line for Shredded Pipes, 800-1000 kg/h Capacity, 134.5 kW Total Power

Description

  1. Overview
    1. The regranulation line for shredded pipes offers a highly efficient and robust solution for recycling plastic materials.
    2. Output capacity of 800 to 1000 kilograms per hour (1,700 to 2,200 pounds per hour).
    3. Includes a horizontal belt conveyor, pipe chipper, crusher, air conveying silo, and electrical control cabinet.
    4. Engineered for durability and ease of use, ideal for high-volume plastic recycling applications.
  2. Key Features
    1. Output capacity of 800 to 1000 kilograms per hour (1,700 to 2,200 pounds per hour).
    2. Horizontal belt conveyor with a 1.5 kW (2 hp) motor and durable anti-slip belt.
    3. Pipe chipper with a 75 kW (101 hp) motor, handling pipe diameters up to 400mm (15.75 inches).
    4. Crusher reducing materials to 12mm particles (0.47 inches) with a 55 kW (74 hp) motor and durable blades.
    5. Air conveying silo for efficient particle collection and transport, with cooling and drying.
    6. Electrical control cabinet with high quality components for centralized, safe, and reliable operation.
  3. Specifications

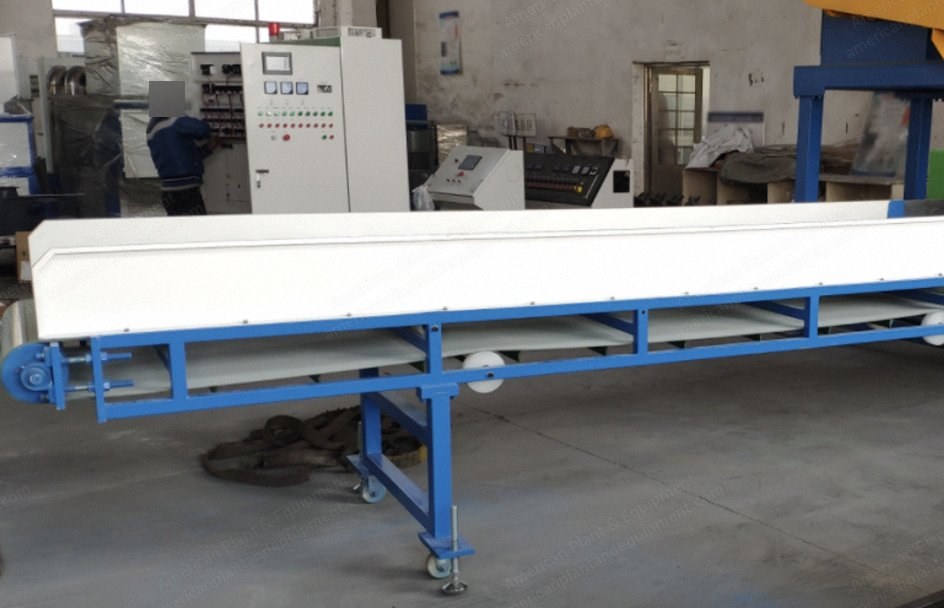

    1. Horizontal belt conveyor: motor power 1.5 kW, belt dimensions 4000 x 400 x 1200 mm, PVC 5mm thick anti-slip belt, square steel frame, side baffles.
    2. Pipe chipper: motor power 75 kW, lift unit motor power 0.75 kW, number of moving knives 4, knife material D2, maximum cutting diameter 400 mm, knife disc diameter 1200 mm thickness 100 mm, box wall thickness 16 mm, output 1000 to 1500 kg/h.

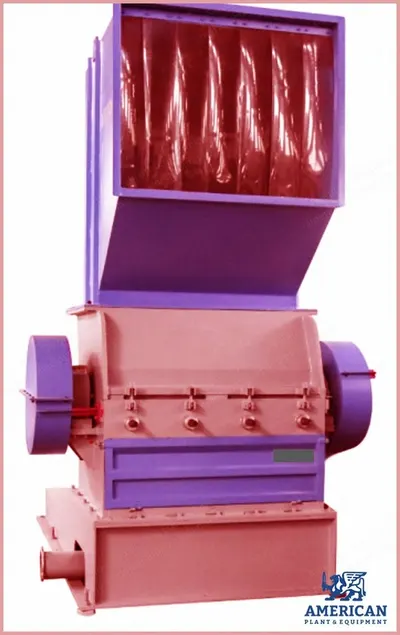

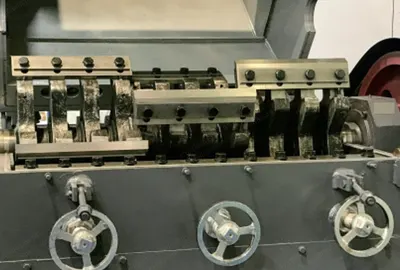

    3. Crusher: purpose to further crush material into 12mm particles, motor power 55 kW, screen aperture 16 mm, unit diameter 550 mm, shaft width 1000 mm, number of rotating blades 10, number of fixed blades 4, blade material SKD-11, feed inlet 1000 x 900 mm, spindle speed 720 rpm, output 1000 to 1200 kg/h.

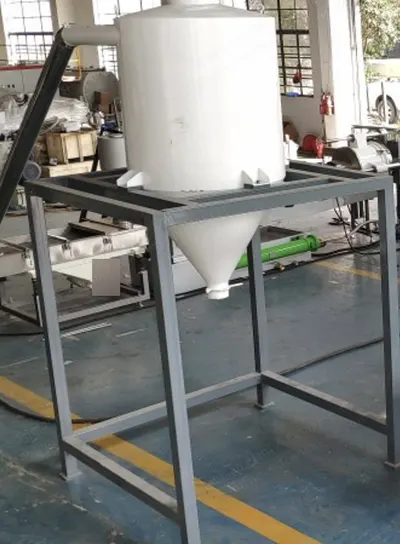

    4. Air conveying silo: purpose collects finished particles, venturi three-way feeding device, fan power 5.5 kW, cyclone silo, air cooling, drying, storage, discharge port height from ground approximately 1 meter, silo capacity 1 m³, manual butterfly valve discharge, parts in contact with materials are 304 stainless steel.

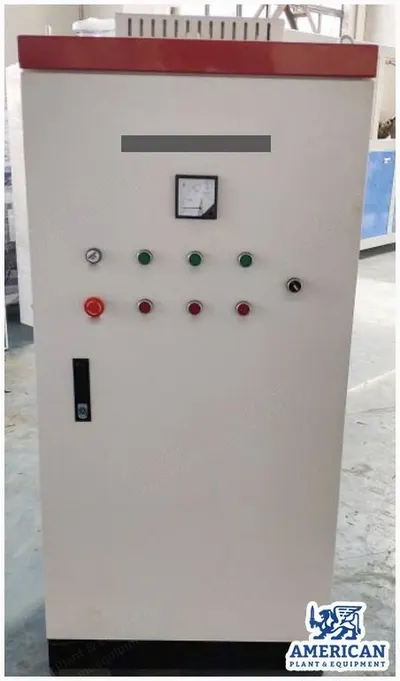

    5. Electrical control cabinet: purpose used to control the entire line, equipped with ammeter, voltmeter, control system, main power switch, emergency stop device, cable wiring fixed in a bridge frame, contactor Delixi, relay Delixi, general switch Delixi, circuit breaker Delixi, motor brand Lidu.
    6. Total power kw: 134.5
  4. Condition
    1. Used industrial machine line.
  5. Included
    1. Horizontal belt conveyor (1 set).
    2. Pipe chipper (1 set).
    3. 1000 crusher (1 set).
    4. Air conveying silo (1 set).
    5. Electrical control cabinet (1 set).
