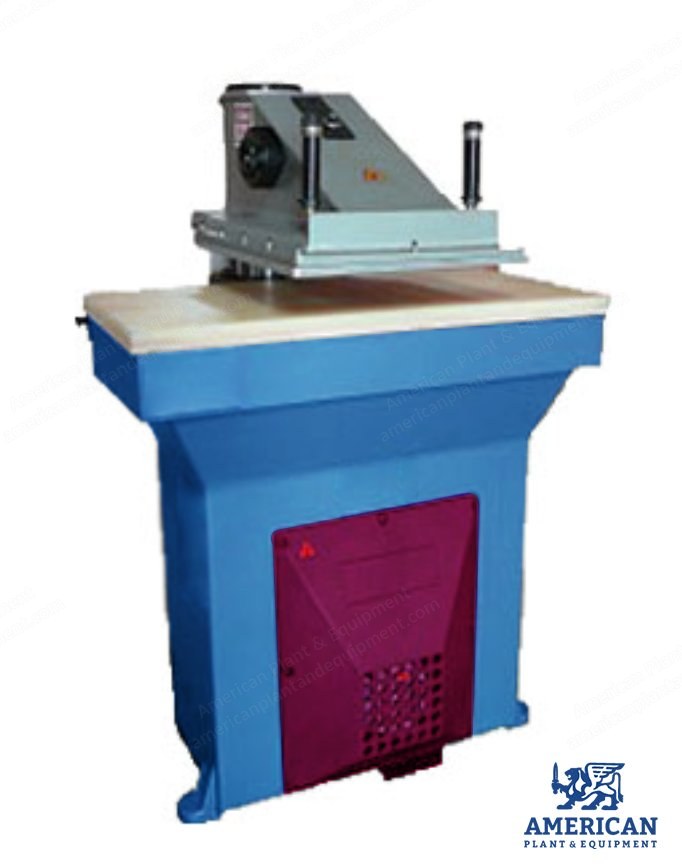

NovaStar, APM-SA27L, Swing Arm Clicking Machine, 27 Tons, 20x40 inch Cutting Table, 2 HP (New)

NovaStar, APM-SA27L, Swing Arm Clicking Machine, 27 Tons, 20x40 inch Cutting Table, 2 HP

Description

  1. Overview
    1. Regularly kept in stock – the swing arm clicker press features 27 tons of tonnage.
    2. Available with a 20″ x 40″ cutting table and a beam width of 24″ (new machine).
    3. The swing arm clicker is the workhorse for many die cutting applications and also a very capable entry-level machine.
    4. We are proud to offer the NovaStar Machine APM-SA series of swing-arm clicking machines.
    5. Whether you are looking for an additional cutting machine, a replacement for an old machine, or you are looking to get started in the die cutting industry, the APM-SA27L is the perfect machine for your needs.
  2. Advantages
    1. Automatic stroke-end setting – up to use cutting knives of different heights without any adjustment.
    2. Control push buttons with built-in device for 3/10 of a second maximum delay operation to ensure positive safety.
    3. Seven different models all have main control organs covered by international patents.
    4. All models can be supplied in the CE version, that is equipped with the safety devices requested by the EC-rules 89/336/CEE and 89/392/CEE.
    5. Higher speed of operation and greater productivity which can increase material yield.
    6. Reduced wearing of cutting dies and a dramatic increase in savings on cutting pad costs.
  3. Range Of Applications
    1. Manual die cutting of materials such as foam, textiles, plastic, rubber, packaging, vinyl, leather, composites, fiberglass, cork, wood, gasket materials (non-asbestos, teflon, etc.) and more.
  4. Machine Options
    1. Machine crating charge – when machine is shipped via a common carrier.
    2. Extra white cutting pad – 20″ x 40″ x 1″ thick.
    3. Convert machine to accept single phase power.
    4. Rotary phase converter.
    5. 24″ wide aluminum striking plate (20″ x 20″ x ¾″).
    6. 2mm steel wear plate on the bed and 10mm cutting pad mounted on the head.
    7. CSA approved components installed – APMC will replace non-CSA approved components with CSA approved components (motor, wire, electrical components, etc.).
  5. Specifications
    1. Beam width: 24″ (610 mm)
    2. Cutting force: 30 tons (27 metric tons)
    3. Cutting stroke: 3.54″ (90 mm)
    4. Maximum daylight: 5.1″ (130 mm)
    5. Machine bed: 20″ x 40″ (500 x 1000 mm)
    6. Main motor: 2 hp
    7. Gross weight: 2500 lbs (1136 kgs) approx.
    8. Series: APM-SA27L
    9. Beam width: 24 inches
    10. Cutting stroke: 3.54 inches
    11. Maximum daylight: 5.1 inches
