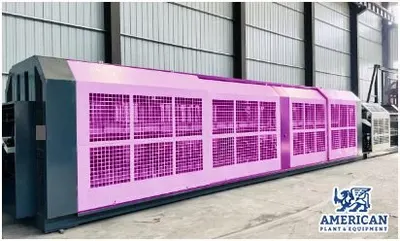

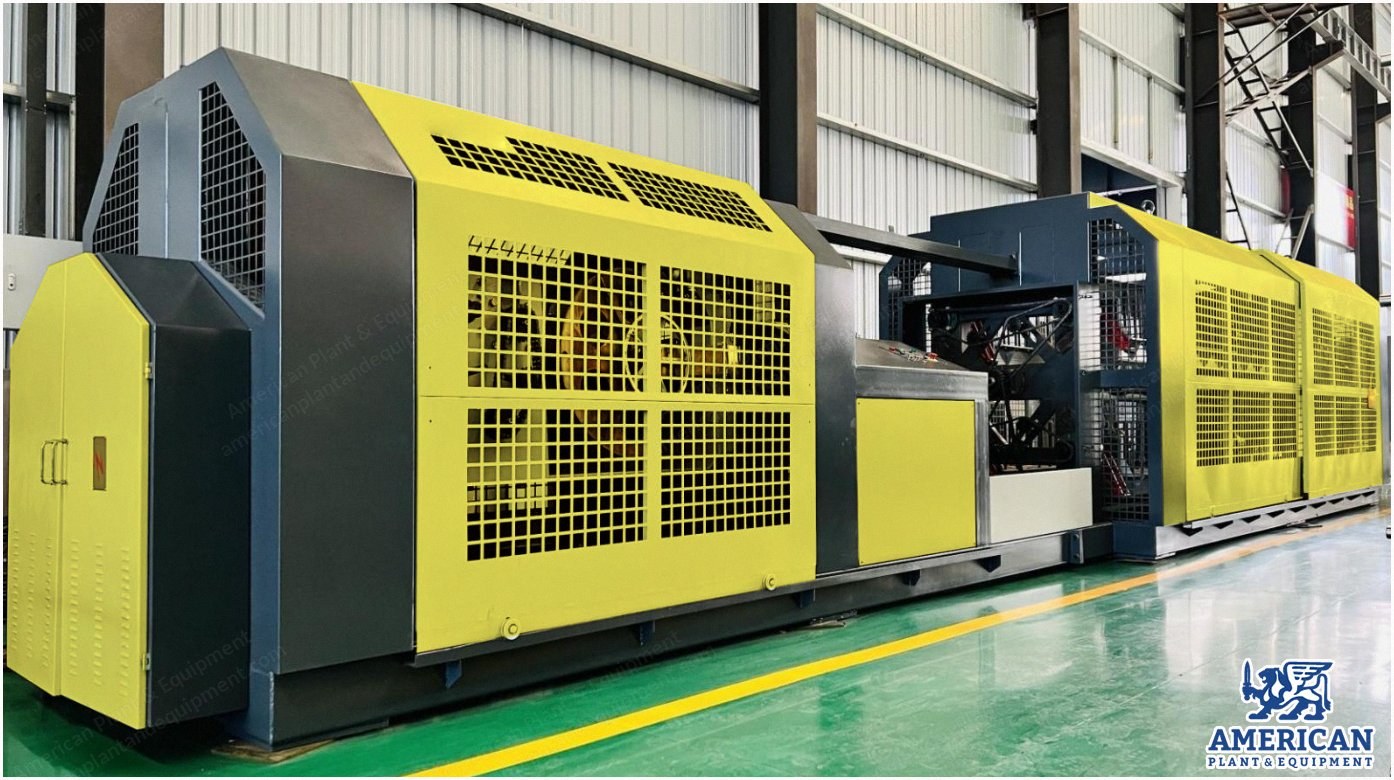

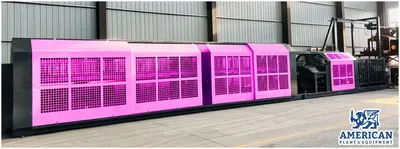

NovaStar, WN361, 3 Strand Rope Making Machine, Rope Range 12 to 20mm, Take-up Capacity 50kg (New)

NovaStar, WN361, 3 Strand Rope Making Machine, Rope Range 12 to 20mm, Take-up Capacity 50kg

Description

  1. Overview

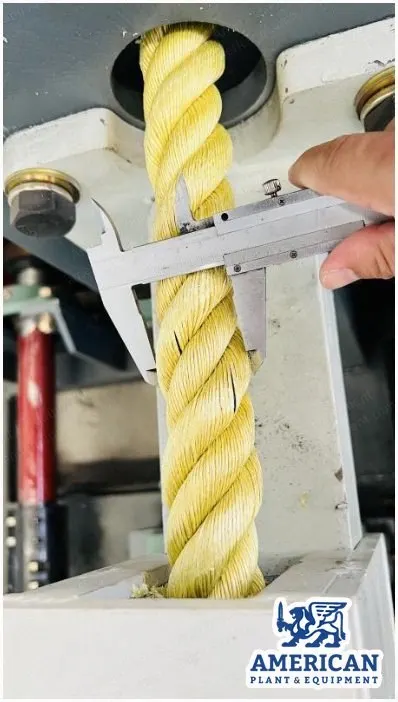

    1. Rope range: Φ 12 to 20mm
    2. Lay range: 32 to 78mm
    3. Rope lay: S or Z

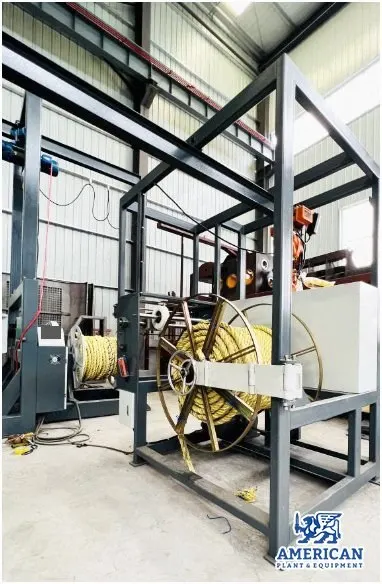

  2. Take-Up And Coiling Head
    1. Take-up, coiling head: Φ680mm, traverse 360mm, barrel Φ156mm, moveable

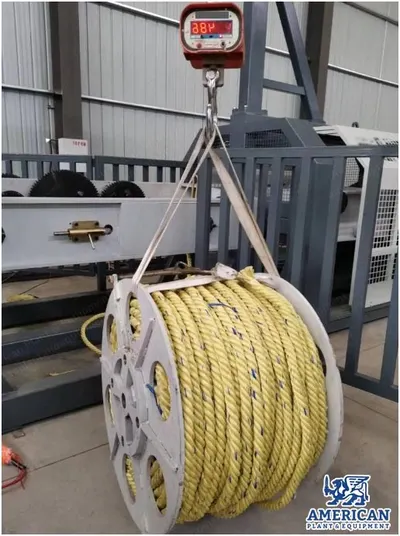

    2. Take-up, max. weight: polypropylene 50kg

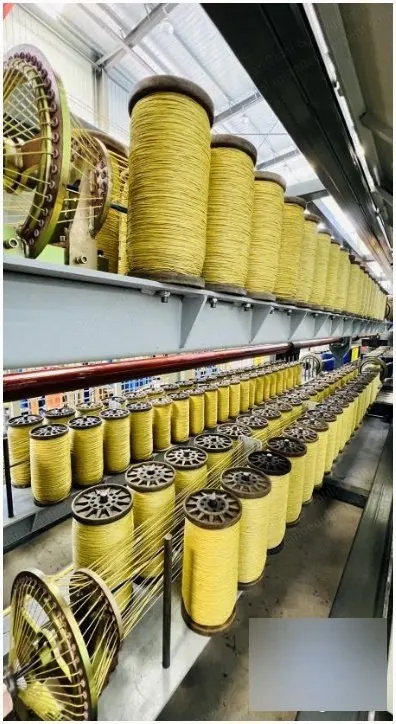

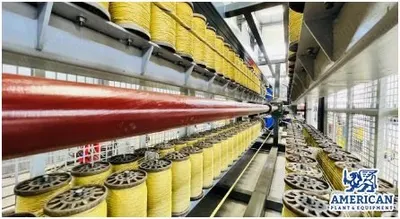

  3. Pay-Off Packages
    1. 3 x 32, max. Φ175 x 300mm traverse
  4. Take-Up Capacity
    1. Φ12mm: 1000m
    2. Φ14mm: 741m
    3. Φ16mm: 566m
    4. Φ18mm: 445m
    5. Φ20mm: 362m
  5. Production Capacity
    1. Φ12mm: 1667kg
    2. Φ14mm: 2646kg
    3. Φ16mm: 3950kg
    4. Φ18mm: 5626kg
    5. Φ20mm: 7716kg
  6. Notes
    1. Examples based on 3 strand PP rope
    2. Lay length: medium
    3. Efficiency rate: 100%
    4. 24 hours production
