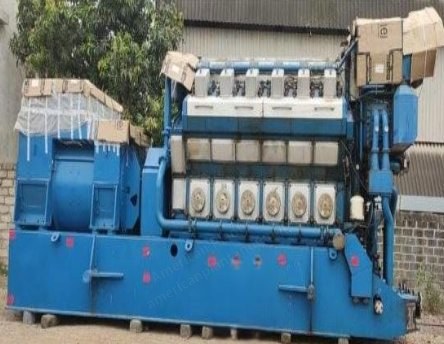

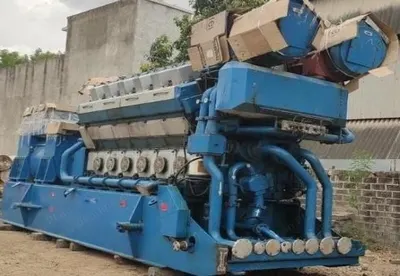

Wartsila, 12V32LN, 1999, 4.2 MW, 750 RPM, 11 kV, 50Hz Generator Set

Wartsila, 12V32LN, 1999, 4.2 MW, 750 RPM, 11 kV, 50Hz Generator Set

Description

  1. Overview
    1. Good running takeout generator set Wartsila 1 x 12V32LN DG 4.2 MW, 750 rpm, 11 kV, 50 Hz.
    2. Wartsila 12V32LN engine with alternator on common base frame.
    3. It is a complete set (engine + alternator).
    4. Also includes an 18V32LN - 6750 kW, 750 rpm engine.
  2. Engine Details (12V32LN)
    1. Make: Wartsila (Finland)
    2. Model: 12V32LN
    3. Rpm: 750
    4. Kw: 4200
    5. Year: 1999
    6. Running hours: 39900
  3. Alternator
    1. Make: ABB
    2. Kva: 5000
    3. V: 11000
  4. Accessories Included with Wartsila 12V32LN DG Set
    1. Control panel
    2. Pipe module
    3. HFO separator unit
    4. Lube oil separator unit
    5. HFO transfer unit
    6. LFO transfer unit
    7. Air bottle
    8. Compressor
    9. Feeder unit
    10. Booster unit
    11. Nozzle temperature control unit
    12. Filters
    13. LV switch board panels (optional)
    14. Battery charger with panel (optional)
    15. Ventilation panel (optional)
    16. Cooling tower with panel (optional)
    17. NGR panel (optional)
  5. Engine Details (18V32LN)
    1. Make: Wartsila (Finland)
    2. Model: 18V32LN
    3. Rpm: 750
    4. Kw: 6750
    5. Year: 2005
