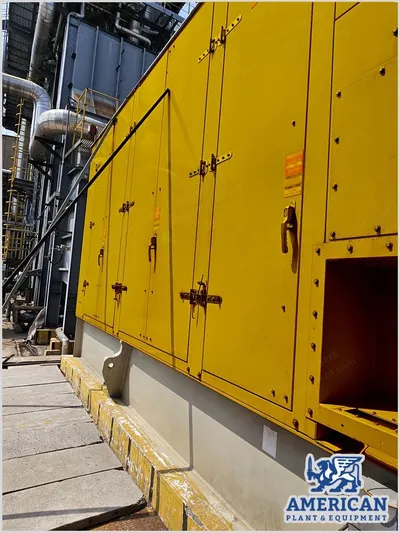

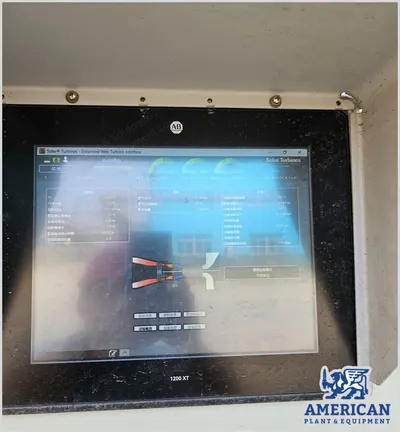

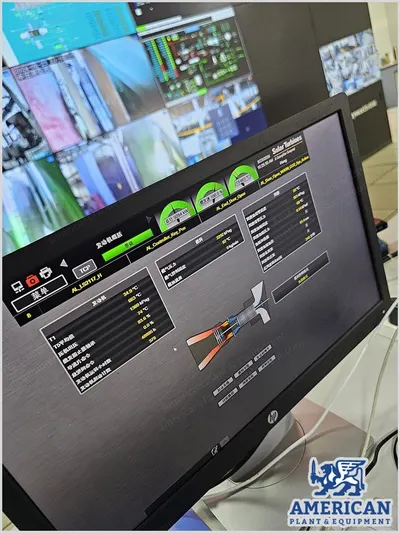

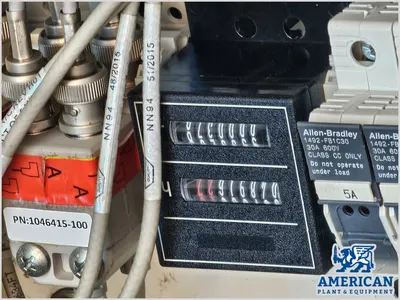

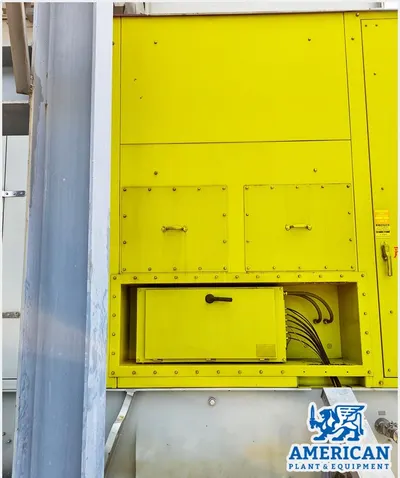

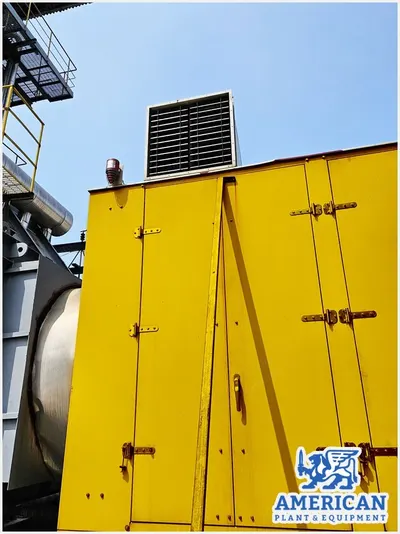

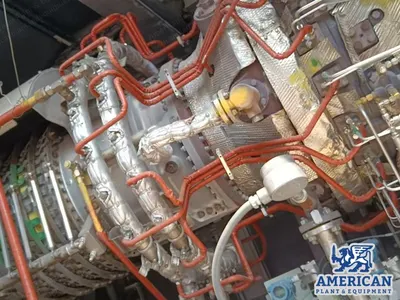

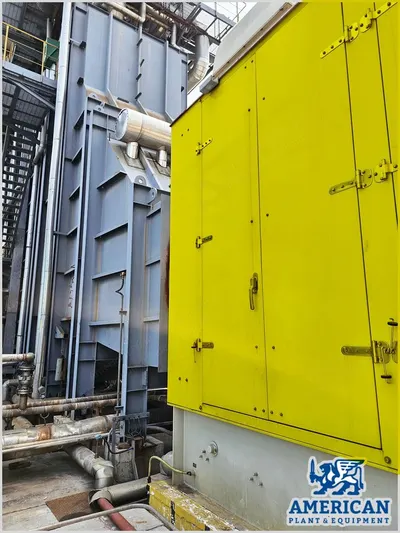

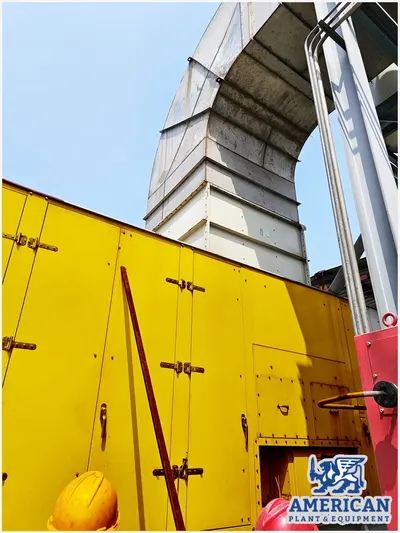

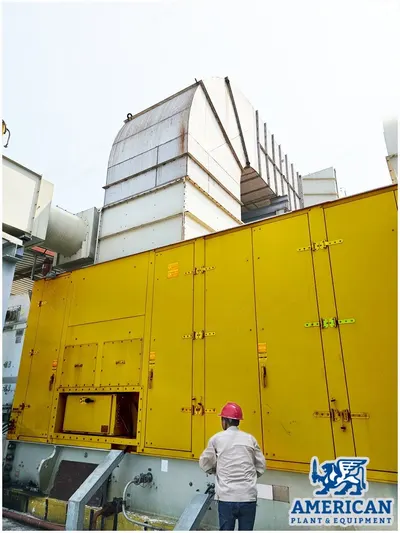

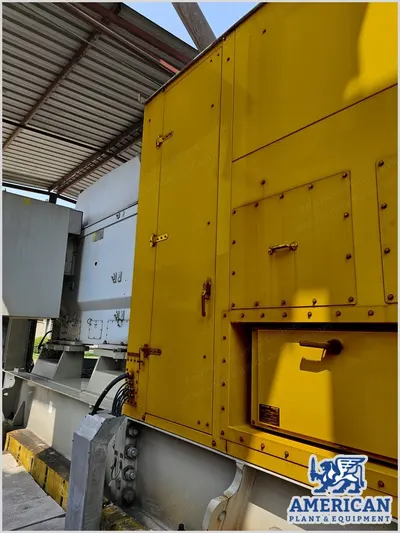

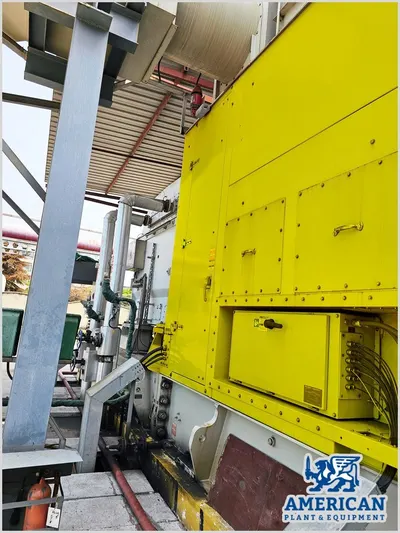

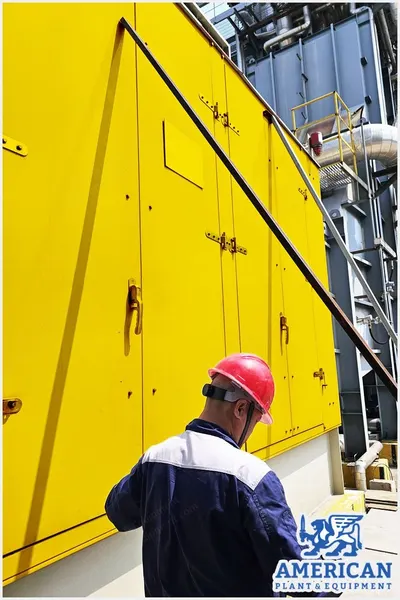

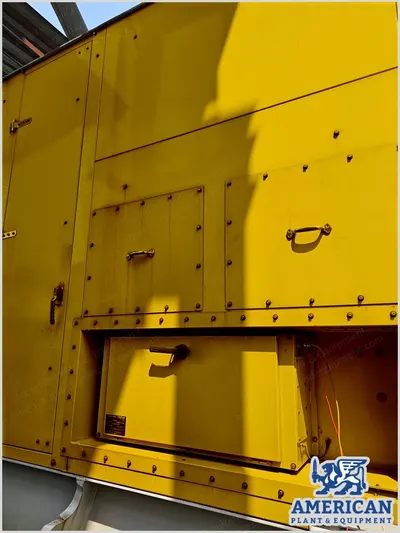

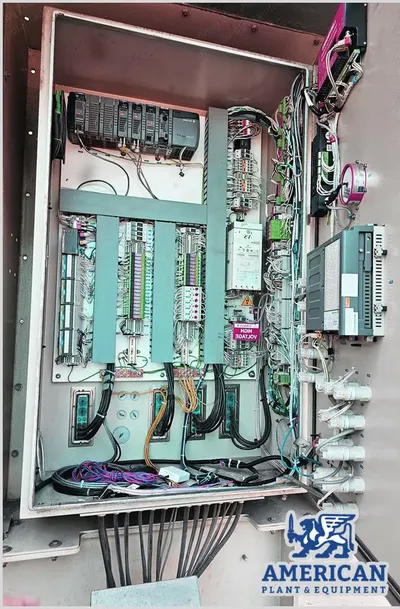

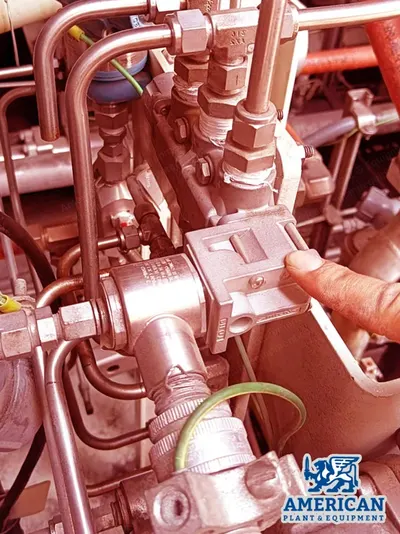

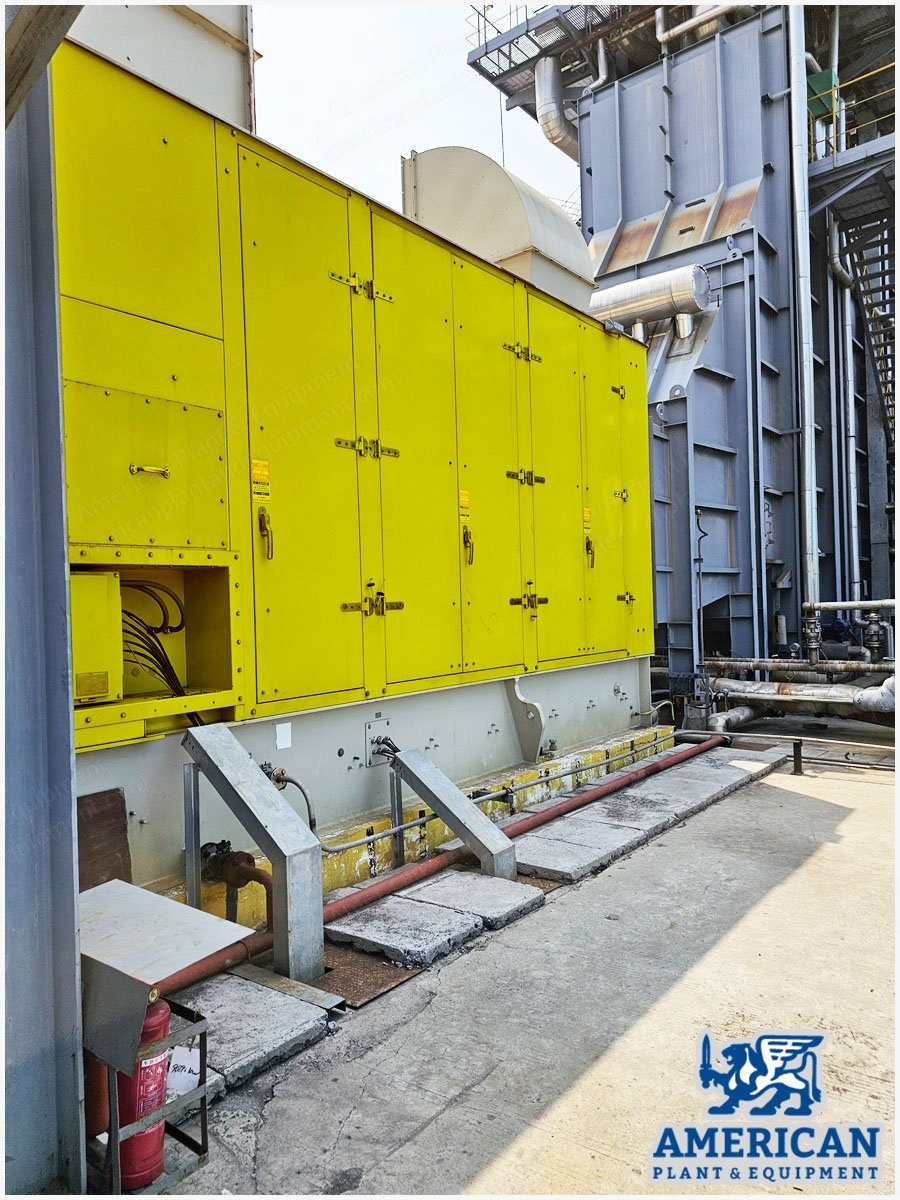

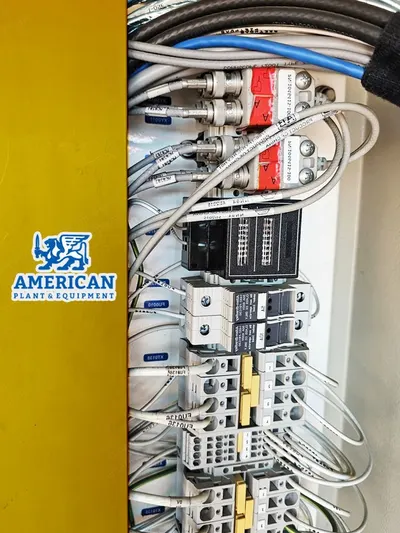

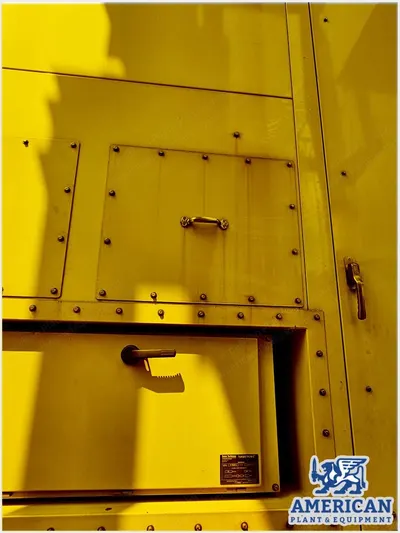

Description Overview Solar Titan 130 gas turbine Year: 2016 Hours: 48,916 11 kV 50 Hz 13 MW Turbine and gearbox, without alternator Gas Turbine Driver Year of manufacture: 2016 S.O. no. 2 – 3X721 Serial #: KG16N53 DAC start motor supply: 380 volts AC, 3 phase, VFD, Hz, 181 amps Single phase AC supply: 220 volts AC, 3 phase, 50 Hz, 5.1 total amps Three phase AC supply: 380 volts AC, 3 phase, 50 Hz, 219.1 total amps DC supply: 120 volts DC, 10.15 total amps Drive Box Console serial no. N-168965-4 S.O. no. 2 – 3X721CC External power requirements: 24 volts DC, 20 amps Gas Turbine Data Plate Model no.: Titan 130 Version: 20501 GSC Engine PN: L051C-C0DWRPR0 Serial no.: 0945L Power (G/L): 15,000 kWe / 13,846 kWe NGP (RPM): 11,197 at 50 Hz / 11,170 at 60 Hz NPT (RPM): NA IGV setting: +5.0° ΔT5 base (G/L): 1386°F / 1339°F Setpoint (G/L) full load: T5 1400°F / 1400°F Uncompensated, ISO values Fwd plane TDC hole #0 Aft plane TDC hole #0 Turbine Control Box Console serial no. N-168965-1 S.O. no. 2 – 3x721cc External power requirements: 120 volts DC, 20 amps
