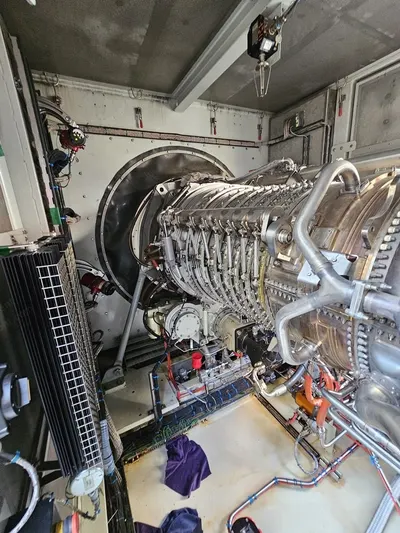

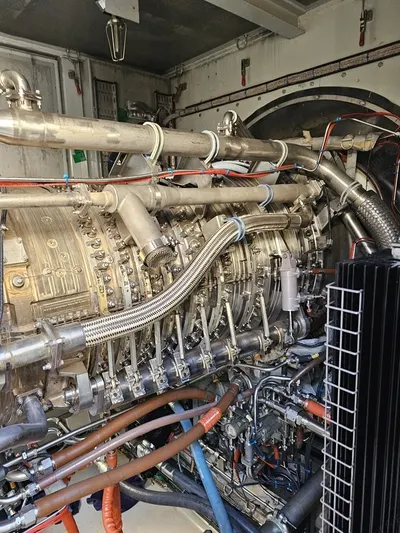

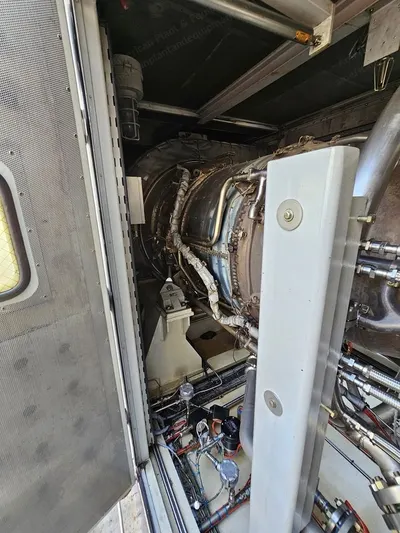

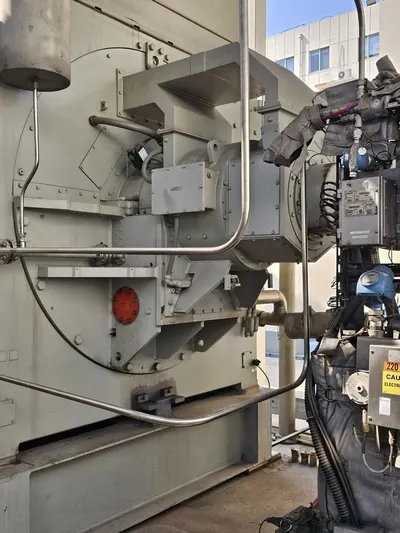

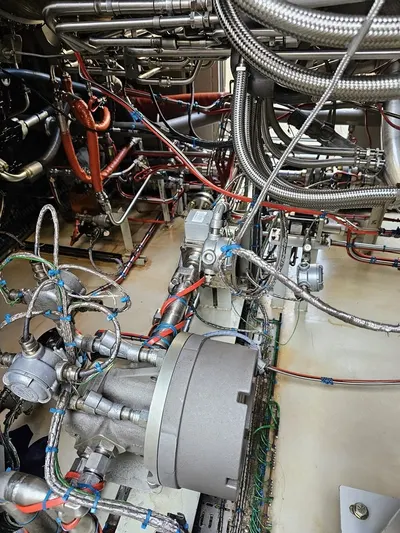

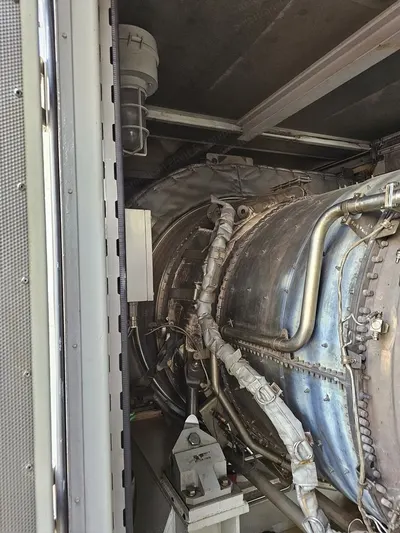

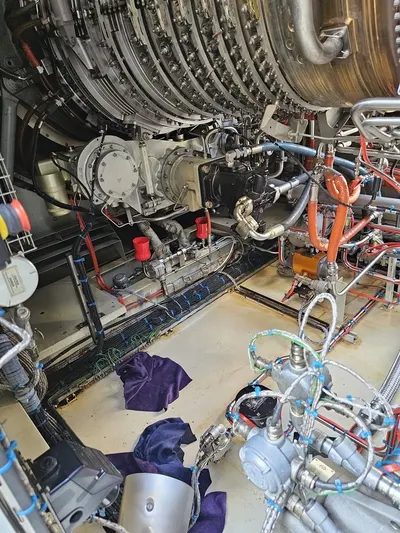

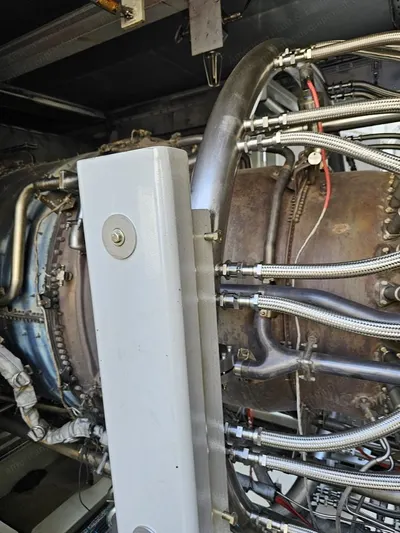

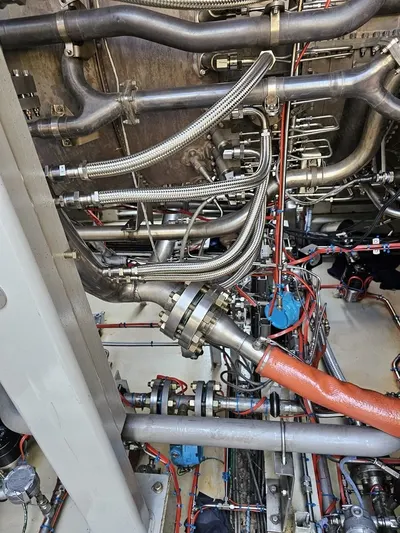

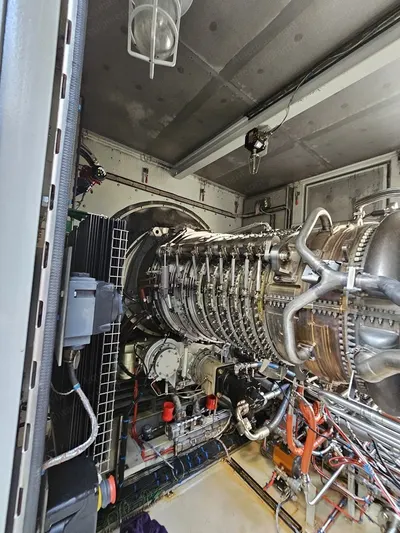

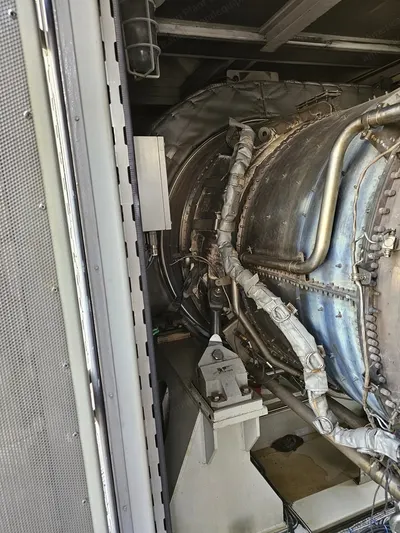

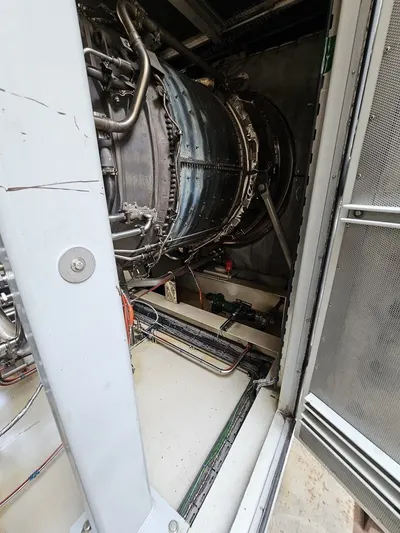

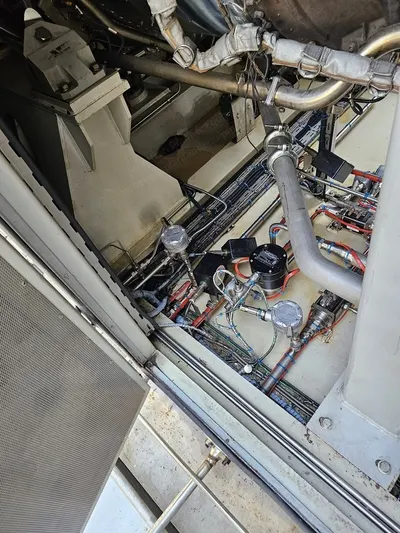

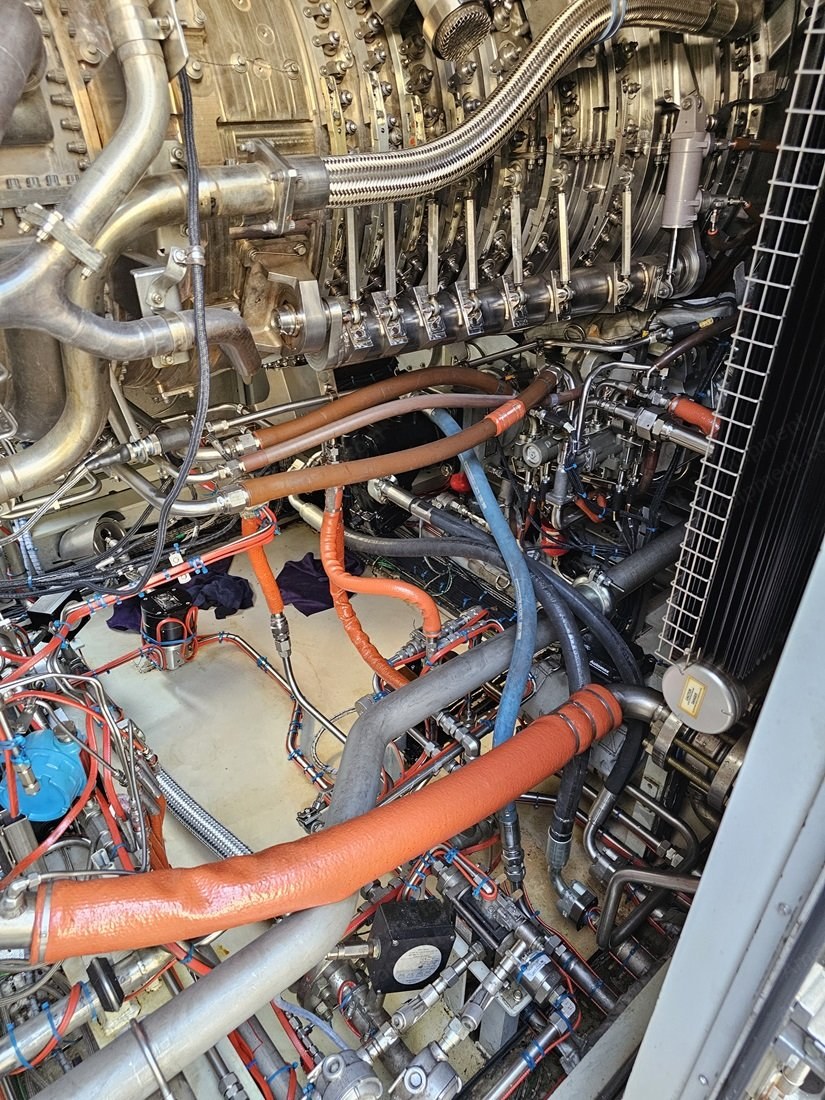

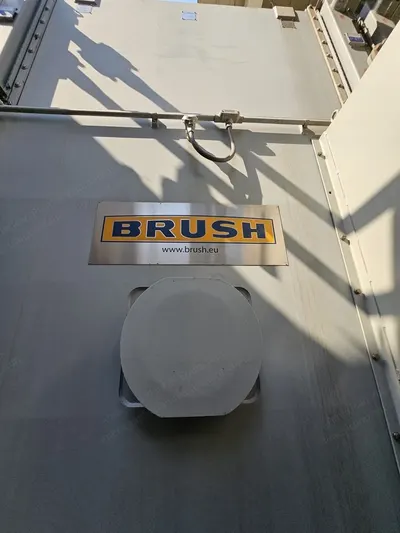

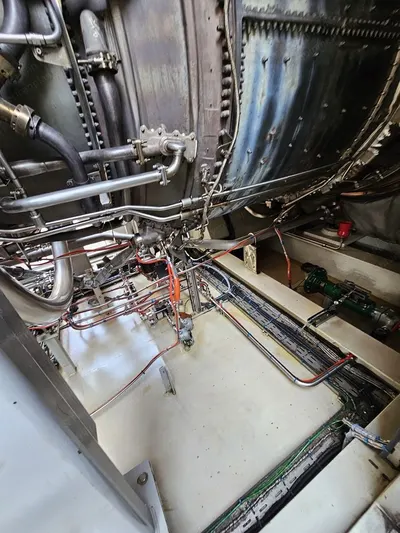

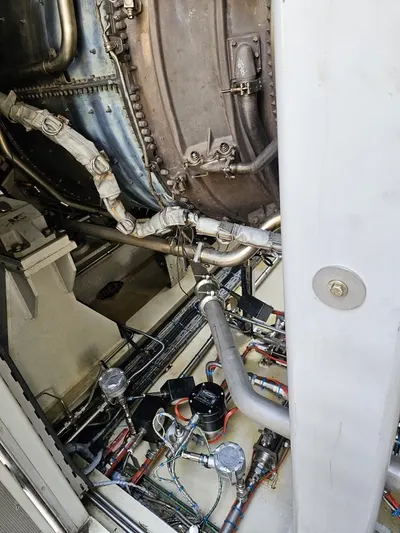

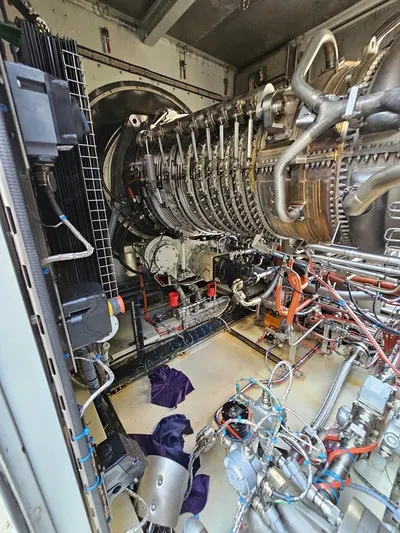

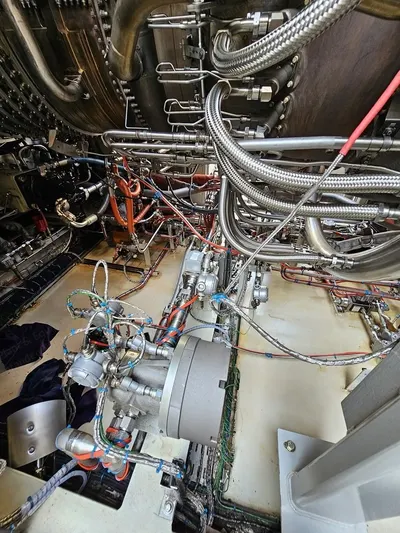

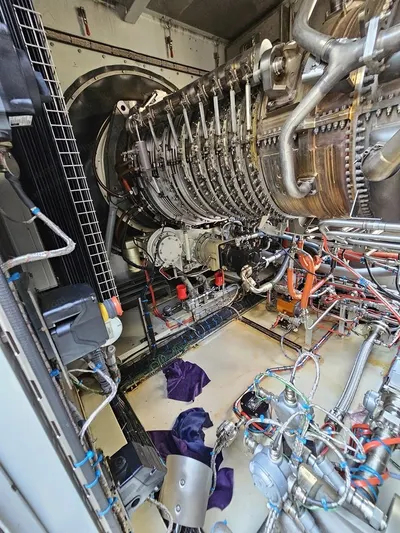

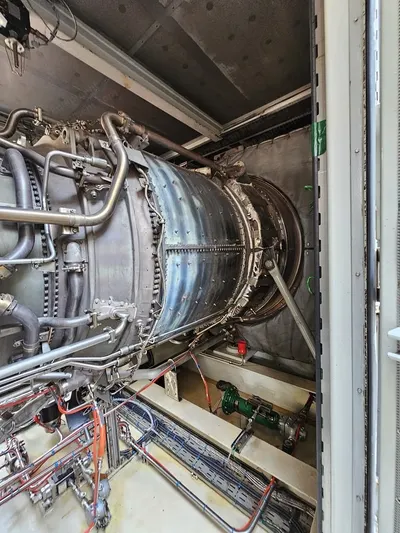

Description Overview Ge lm2500 gas turbine Year: 2013 31.5 mw Hours: 2000 50 hz Generator Specifications Brush synchronous machine Output: 38705 kva Rev/min.: 3000 Volts: 10500 Amps: 0.85 P.f.: 3/50 Phase conn.: star Exc. volts: 147 Ext. amps: 918 Date: 2013 Wt. of m/c without air treatment: 64050 kg Type: turbogenerator Frame: bdax 71-193erh Machine no.: 923456.010 Rating: continuous Spec.: iec 60034-3 Amb. temp.: 50°c Altitude: up to 1000 m Coolant: water at 40°c Rotor insuln.: class f Stator insuln.: class f Protection: ip54 Phase sequence: u – v – w Heat Exchanger Basco heat exchanger, year 2013 Shell mawp: 1.03 mpa Tubes mawp: 1.03 mpa Shell des temp: 149°c Tubes des temp: 149°c Shell mdmt: -29°c Tubes mdmt: -29°c Shell test press.: 1.34 mpa Tubes test press.: 1.34 mpa Shell volume: 8.77 liters Tubes volume: 7.36 liters Air Conditioner Thermal edge inc. special purpose air conditioner Volts: 230 Amps: 3.76 Phase: 1 50 hz Refrigerant: r422d Ounces: 12.50 Design pressure low side: 188 psi Design pressure high side: 390 psi Nema type: 04 S/n.: 1203030009 Ip 66 Model no.: ne05023504ehage
