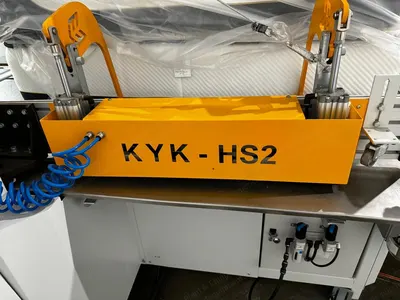

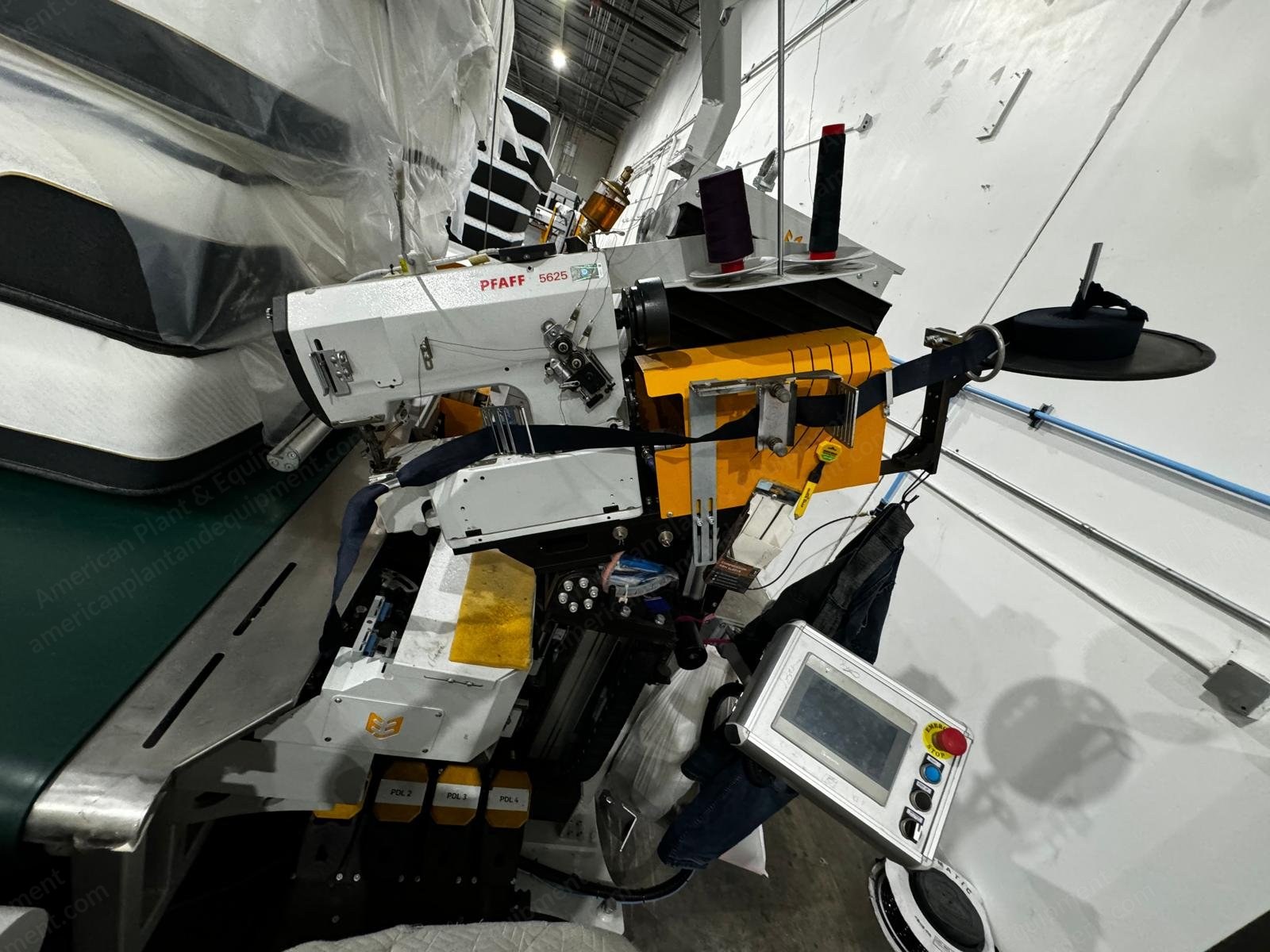

Electroteks, ELTK-KYK-HS2, 2022, Tape Edge Machine, 130 Inch Working Width, Pfaff 5625 Sewing Head

Electroteks, ELTK-KYK-HS2, 2022, Tape Edge Machine, 130 Inch Working Width, Pfaff 5625 Sewing Head

Description

  1. Overview
    1. Working width: 130 in
    2. Total length: 185 in
    3. Overall width: 130 in
    4. Year: 2022

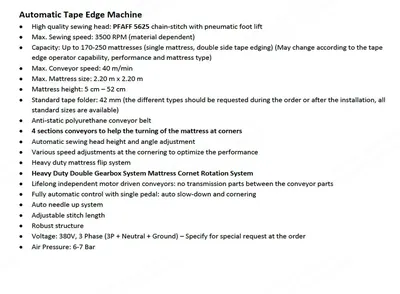

  2. Specifications
    1. Total kw: 5 kw
    2. Voltage: 3x220v
    3. Voltage: 380v, 3 phase (3p + neutral + ground) — specify for special request at the order
    4. Air pressure: 6 to 7 bar

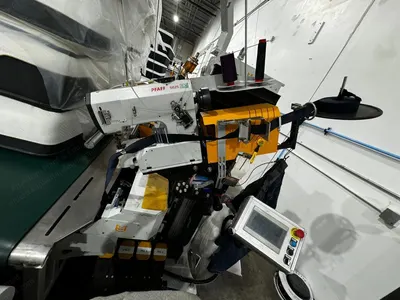

    5. High quality sewing head: Pfaff 5625 chain-stitch with pneumatic foot lift
    6. Max. sewing speed: 3500 rpm (material dependent)
    7. Capacity: up to 170-250 mattresses (single mattress, double side tape edging) (may change according to the tape edge operator capability, performance and mattress type)
    8. Max. conveyor speed: 40 m/min
    9. Max. mattress size: 2.20 m x 2.20 m
    10. Mattress height: 5 cm to 52 cm
    11. Standard tape folder: 42 mm (the different types should be requested during the order or after the installation, all standard sizes are available)
    12. Anti-static polyurethane conveyor belt
    13. 4 sections conveyors to help the turning of the mattress at corners
    14. Automatic sewing head height and angle adjustment
    15. Various speed adjustments at the cornering to optimize the performance
    16. Heavy duty mattress flip system
    17. Heavy duty double gearbox system mattress corner rotation system
    18. Lifelong independent motor driven conveyors: no transmission parts between the conveyor parts
    19. Fully automatic control with single pedal: auto slow-down and cornering
    20. Auto needle up system
    21. Adjustable stitch length
    22. Robust structure
    23. Dimensions: 4699x3302mm
  3. Condition
    1. Condition of the machine rated: a
  4. Included
    1. With Pfaff head
