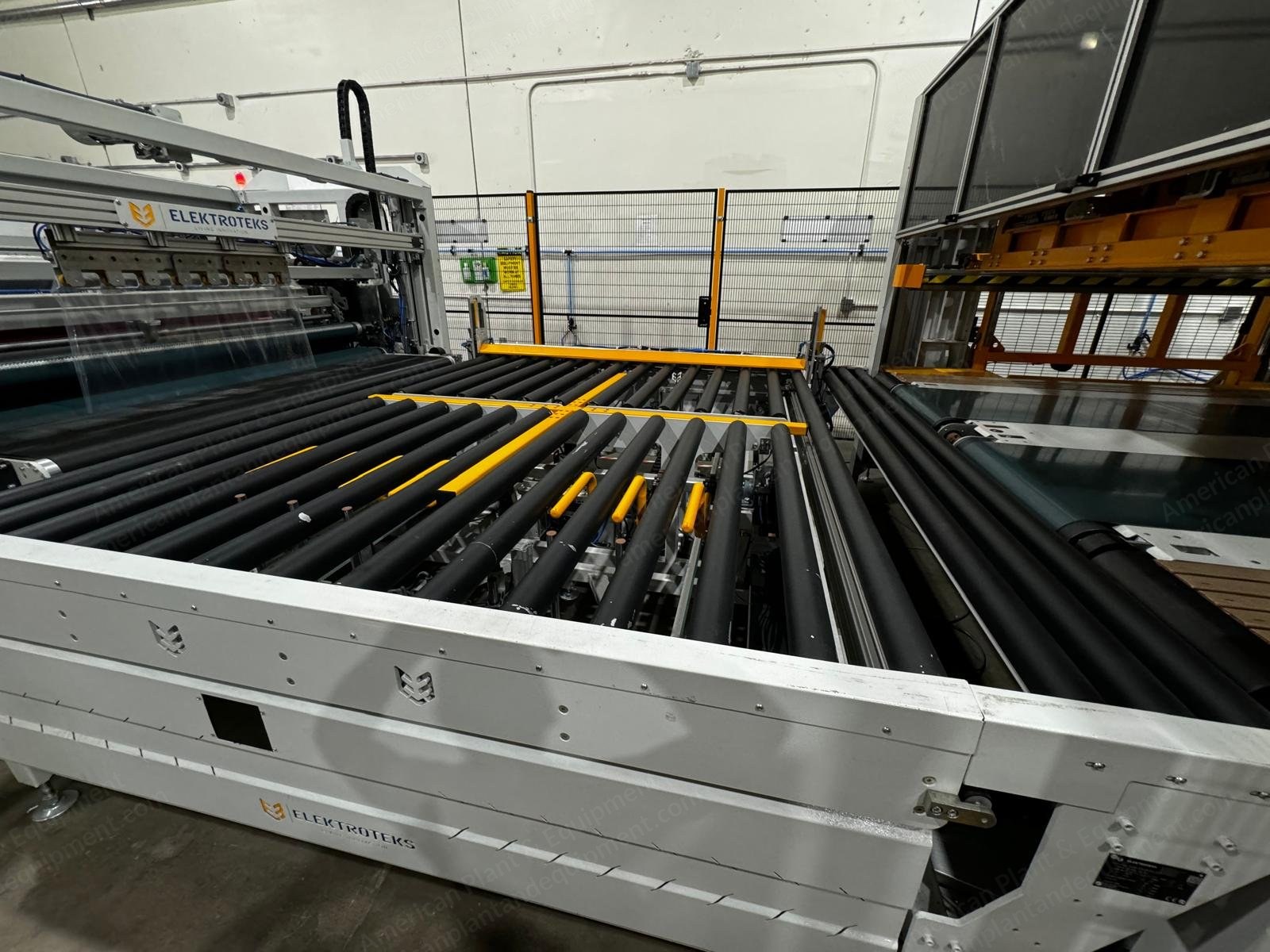

Electroteks, ELTK-ROLL-440-SFP, 2022, 115 Inch Working Width, Full Automatic Mattress Packing and Roll Pack Machine with Folding Unit

Electroteks, ELTK-ROLL-440-SFP, 2022, 115 Inch Working Width, Full Automatic Mattress Packing and Roll Pack Machine with Folding Unit

Description

  1. System Components
    1. Packaging wrapping line: 115 inch x 150 inch
    2. Packaging hydraulic press: 115 inch x 150 inch
    3. Folding conveyor: 107 inch x 125 inch
    4. Roll pack part: 121 inch x 150 inch
  2. Specifications
    1. 60 tons hydraulic adjustable heavy duty press
    2. Working width: 115 inch
    3. Total length: 575 inch
    4. Overall width: 121 inch
    5. Total kw: 50 kw
    6. Voltage: 3x220v
    7. Year: 2022
    8. Weight: 18700 kg
    9. Compressed air: 6-7 bars
    10. Max. mattress size: 210 cm x 210 cm (revised as optional)
    11. Max. film width for roll pack machine: 150 cm for stretch film, 240 cm for pe film
    12. Max. mattress height: 18 inch (material compressibility dependent)
    13. Min. mattress height: 2 inch
    14. Max. capacity: 40 seconds/per roll (when fed continuously – can change according to the compressibility of the mattress, thickness of the plastic film, exit diameter, etc.)
  3. Condition
    1. Condition of the machine rated: a
  4. Operational Features
    1. Flexibility to use as a traditional mattress wrapping only without press or roll pack
    2. Ability to adjust heating, cooling time for different thickness of film
    3. Automatic side film cutting system
    4. Hydraulic 3-links roll-pack exist system: ability to adjust the exit diameter within the range of 33-50 cm (material dependent)
    5. Ability to roll bigger mattresses into smaller exit diameter thanks to 3-link hydraulic exit system
    6. Multidirectional cross conveyor at the exit of the wrap-compress unit: ability to send the mattresses to roll-pack unit or exit as wrapped only
    7. Ability to pack pocket spring, foam and latex mattresses (bonnel spring mattresses can be rolled with the machine but not suggested for the quality of the mattresses)
    8. Heavy duty folding mechanism
    9. Ability to use the machine as pack-only, pack-compress, pack-compress-roll, pack-compress-fold-roll, roll-only
    10. Automatic mattress rotating at the folding section
    11. Much smaller footprint for multifunctional operation (no need to have extra rotating and 90° conveyors)
    12. Ability to give the light mattresses directly to the rolling unit without compression
    13. Auto moving stretch film roll system for different mattress sizes
    14. Plastic type at the rolling section: stretch film or ldpe, pe plastic film
    15. Lifelong festo pneumatics with low air consumption
