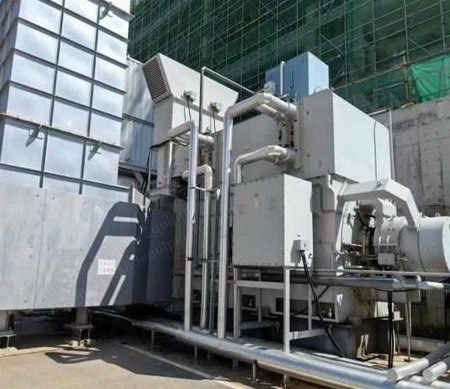

GE, LM2500+G4, 2013, 34.5MW, 39.2% Efficiency, Natural Gas

GE, LM2500+G4, 2013, 34.5MW, 39.2% Efficiency, Natural Gas Sold

Description

  1. Overview
    1. Iso rated capacity: 34.5 mw
    2. Efficiency: 39.2%
    3. Exhaust flow: 89 kg/s
    4. Exhaust temperature: 542°c
  2. Engine Specifications
    1. Original engine model: lm2500-rc-mdwg05
    2. Current engine model: lm2500-rc-mgg05
    3. Engine fired tsn: 650 hrs
    4. Engine csn: 19
    5. Engine fired tsr: 6 hrs
    6. Engine csr: 4
    7. Year of production: 2013
  3. Scope of Supply
    1. Lm2500+g4 sac core engine, complete package and internal instrument accessories
    2. Natural gas pressure regulating skid (fuel skid)
    3. Lubricating oil system
    4. Hydraulic starting system
    5. Control system
    6. Generator
    7. Coupling
    8. Generator lubricating oil system
    9. Gas turbine water washing system
    10. Unit fire protection system
    11. Generator excitation synchronous protection
    12. Air intake and exhaust ventilation system
  4. Specifications
    1. Serial number: 679-187
