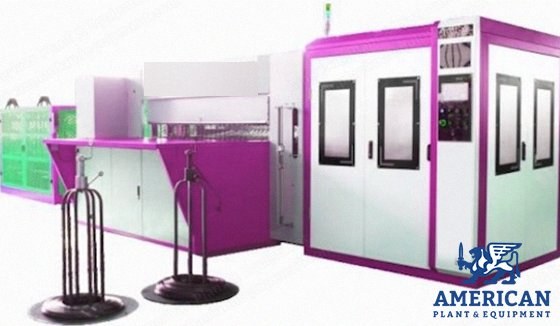

NovaStar, SB302, Automatic Bonnell Spring Transfer Machine, 100 springs/min, Max Width 2000mm, 35kVA (New)

NovaStar, SB302, Automatic Bonnell Spring Transfer Machine, 100 springs/min, Max Width 2000mm, 35kVA

Description

  1. Overview
    1. Speed is 100 spring/unit
    2. Maximum width: ≤ 2000mm
    3. Spring height: 100 to 190mm (less than 100mm or greater than 190mm on request)
    4. Spring end ring: φ65 to φ72mm, φ75 to φ90mm, φ82 to φ92mm
    5. Spring steel wire gauge: φ1.8 to φ2.4mm
    6. Helical wire gauge: φ1.3 to φ1.5mm
    7. Convolutions: 4 to 7 turns
  2. Specifications
    1. Main drive power: 35kVA
    2. Air consumption: 10m³/h
    3. Weight: 6530kg
    4. Power requirement: 380V 3 phase, 50 to 60 Hz (option: 415V to 480V, 220V)
  3. Included
    1. With full digital coiling head
