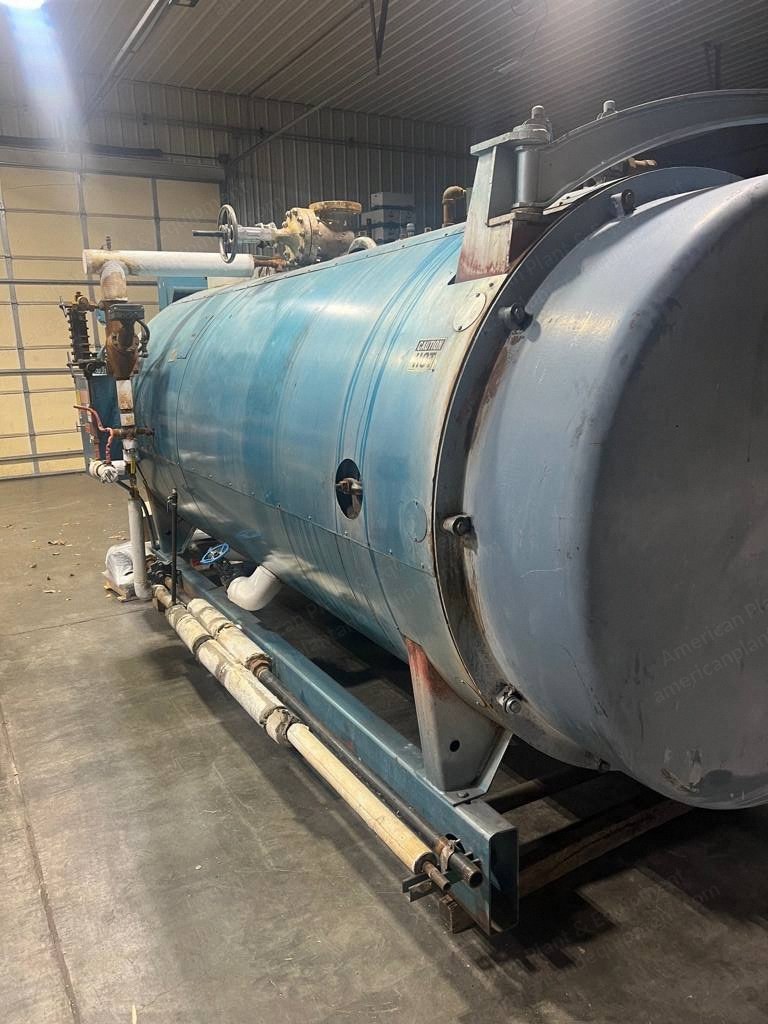

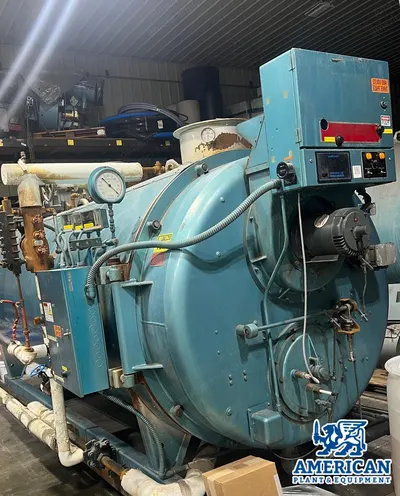

Cleaver Brooks, CB.700-150, Natural Gas Packaged Boiler, 6,277,000 BTU/HR, 150 PSI, 460V 3PH

Cleaver Brooks, CB.700-150, Natural Gas Packaged Boiler, 6,277,000 BTU/HR, 150 PSI, 460V 3PH Sold

Description

  1. Overview

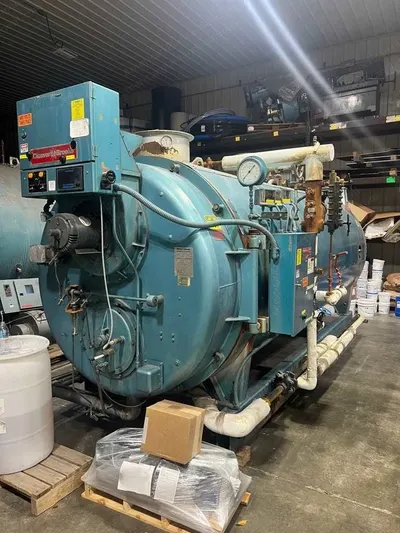

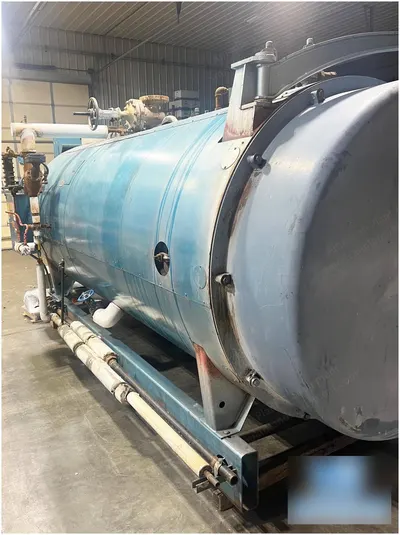

    1. Cleaver Brooks CB packaged boiler

    2. Model: CB. 700-150

    3. Maximum pressure: 150 psi

    4. Input: 6,277,000 btu/hr

    5. Fuel: natural gas

  2. Specifications

    1. Main power supply: 460 volts, 3 phase, 60 hz, 8.5 amp

    2. Minimum circuit ampacity: 10.5 amp

    3. Maximum rating of circuit protection: 34 amp

    4. Blower motor: 5 hp

    5. Control circuit: 120 volts, 1 phase, 60 hz, 7 amp

    6. Overall length: 197 in

  3. Condition

    1. Taken out of service in September, 2024

    2. There were no issues with the boiler; it is being sold because the company was installing a larger boiler

    3. Internal inspection was completed in May of 2024

    4. It has been hydro tested with no tube leaks
