NovaStar, NN529, Needle Punching Line, 1000mm Width, 110-140 kg/hr Capacity (New)

NovaStar, NN529, Needle Punching Line, 1000mm Width, 110-140 kg/hr Capacity

Description

  1. Production Line Details
    1. Raw material: basalt fiber
    2. Application: basalt fiber needled mats
    3. Final width: 1000 mm
    4. Capacity: 110 to 140 kg per hour
    5. Density: 160 gsm
  2. Factory Conditions
    1. Compressed air: air pressure (0.6 to 0.8 MPa), air volume (≤1.5 m³/h)
    2. Power requirements: 3-phase 380 + ground wire, frequency 50 Hz ± 1%
    3. Environmental requirements: temperature -15 °C to 40 °C, average relative humidity of 65%, relative humidity ≤ 90%
    4. Total installed power: TBD
  3. Equipment Color
    1. Equipment main body: party B tacitly approve
    2. Equipment door panel: party B tacitly approve
    3. Safety cover: party B tacitly approve
  4. Process Flow and Description
    1. Equipment capacity calculation (data calculated according to different processes may have a large deviation)
  5. Delivery Scope
    1. The seller shall undertake to supply the goods in the quantity and quality specified in this technical specification sheet
  6. Progress Implementation Schedule
    1. The progress implementation starts from the effective date of the contract, that is, the contract is signed and the advance payment is received
  7. Packaging
    1. The goods shall be well packed following the standard packaging marked in accordance with international requirements
  8. Quality of Goods Warranty
    1. The seller warrants that the equipment supplied is new, has no manufacturing defects, is suitable for the intended use, fully complies with the requirements of the customer's technical assignment
    2. The warranty on the goods comes into force from the moment of commissioning of the goods and putting them into operation
    3. The warranty is valid for one year from the date of entry into force
    4. Warranty does not apply to high-wear and consumable parts
  9. Excluded from Supply Scope
    1. The offer does not include electric cables (primary and secondary wirings)
    2. This offer is exclusive of any auxiliary machines such as air compressor, chillers, any heating insulations, cable trays for cabling, laboratory instruments, special packing materials

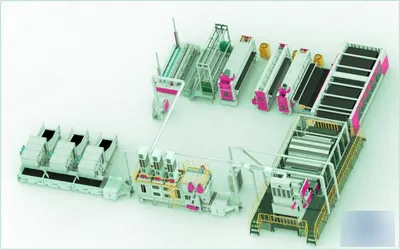

  10. Equipment List
    1. Bale opener (2 sets) – working width: 1200 mm
    2. Pre opener (1 set)
    3. Transfer lattice for pre opener (1 set)
    4. Small hopper blender (1 set) – beating roller dia: 430 mm, fiber feeding: air condenser, feeding lattice: PVC lattice
    5. Fine opener (1 set) – working width: 1300 mm
    6. Air condenser (3 sets)
    7. Metal and fire detector (1 set) – working width: 300 mm
    8. Vibrating feeding hopper (1 set)
    9. Weighing control system, belt type (1 set)
    10. Carding machine (1 set) – working width: 1500 mm, breast cylinder dia: 550 mm, main cylinder dia: 1230 mm

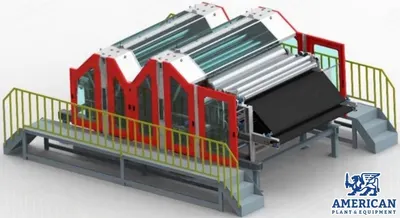

    11. Cross lapper (1 set)
    12. CBF (1 set) – feeding method: guiding fingers
    13. Pre-needle loom, downstroke mid-speed (1 set) – working width: 1400 mm, max installed frequency: 1000 rpm, needle beam stroke: 50 to 60 mm
    14. Main needle loom, upstroke hi-speed (1 set) – working width: 1200 mm
    15. Finish needle loom, downstroke hi-speed (1 set) – working width: 1200 mm
    16. Accumulator (1 set)
    17. Cutting and winding (1 set) – 3-4 V cutter
    18. Side fabric opener (1 set) – transfer fan: 2.2 x 1, conveyor: feeding PVC lattice

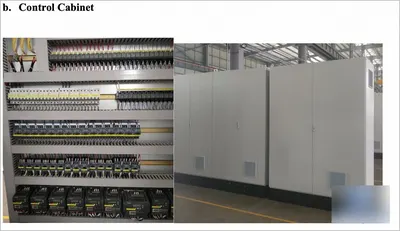

    19. Electric control system (1 set)

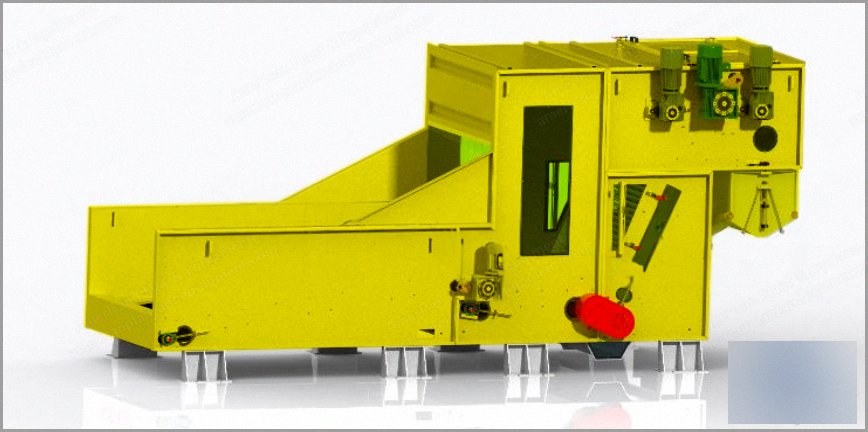

  11. Single Machine Specifications – Bale Opener
    1. Working width: 1200 mm
    2. Weight control: PLC
    3. Auto weighing control
    4. Precision: <3%
    5. Feeding lattice: PVC lattice
    6. Oblique lattice: aluminum spiked lattice with nails
    7. Installed power: 5.15 kW
    8. The frame is made of Q235-A steel plate by CNC laser cutting, CNC bending and modular assembly
    9. The main body of the spiked lattice is aluminum lattice, which is embedded with stainless steel nails; the probability of dropping nails is small and the service life is long
    10. Photoelectric automatic control of fiber feeding, frequency control of spiked lattice, control of fiber feeding quantity
    11. The weighing bucket incorporates sensitive gravity sensor with weighing function; according to the program control, the fibers are spread on the opening conveyor curtain
    12. Separate high-precision weighing bucket is not affected by airflow
  12. Single Machine Specifications – Pre Opener
    1. The machine is one of the parts of the opening and blending system for the complete nonwoven process
    2. The opening machine is equipped with an opening drum and feeding roller equipped with carding wires / aluminum nails respectively
    3. The machine can operate in closed work environments
