Erema, Intarema 1714 TVEplus, Pelletising Plant, 1200 kg/h

Erema, Intarema 1714 TVEplus, Pelletising Plant, 1200 kg/h

Description

  1. Overview
    1. Processed materials: PE, PP.
    2. Washed post-consumer film flakes, production waste offline (producer), industrial waste (recycler), collection commercial waste, slightly printed.
    3. Clean and dry, free of abrasive and corrosive contamination, as well as free of PVC.
    4. Max. input moisture 4%.
    5. Feed materials to be proportioned to an adequate shape for feeding.
    6. Throughput: up to 1200 kg/h dependent on bulk density, humidity, contamination, film thickness, pre-proportion and filtration size.
  2. Recycling Plant Components

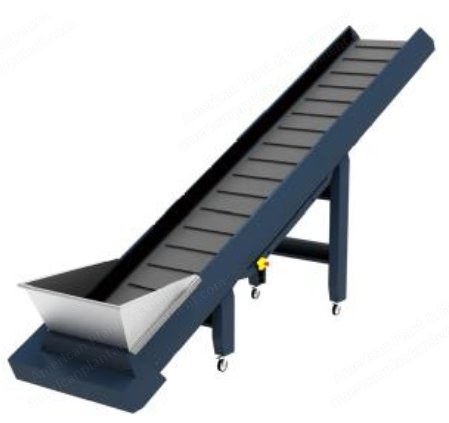

    1. Pos. 1: Belt conveyor - used
      1. Model: FB_10000_1200_SH.
      2. For feeding loose scrap material.
      3. Large hopper in stainless design.
      4. Incl. dust and sound insulation tunnel.
      5. Automatic control via the Erema main unit.
      6. Drive: AC motor with gearbox.
      7. Belt: 10000 x 1200 mm equipped with cleats.
      8. Design: cranked (metal-free zone).
    2. Pos. 2: Double layer all metal detector - used
      1. Model: MT2_1200_DTR144H40.
      2. Unique Erema design for recycling applications.
      3. Coil pass-through: 1440 x 400 mm.
      4. Detection: all-metal.
      5. Scanning sensitivity: Fe ≥ M6 nut, V2A ≥ M10 nut.
      6. Technology: digital.
      7. Detection alarm: visual + acoustic.
      8. Plus belt stop in case of detection.
    3. Pos. 3: Shredder-FB level control - used
      1. Model: EL_SYNC_EWZ_1.
      2. For synchronization of shredder and belt conveyor.
      3. Consisting of: hopper at feeding area of conveyor belt, frequency converter for conveyor belt, level meter for control of single shaft shredder.
    4. Pos. 4: Preparation for powder dosing unit – vol. - used
      1. Model: DBP_PPREP.
      2. Electrical and mechanical preparation to allow the use of a dosing system, which will maybe be installed later and supplied by customer.
    5. Pos. 5: Intarema® process combination - used
      1. Model: I_1714_TVEPLUS.
      2. Patented large Erema preconditioning unit ensures optimum material preparation for the extruder.
      3. Counter current technology (patented) — highest process stability and flexibility through improved material intake ensures constantly high output.
      4. 3D dynamic mixing provides hot material with homogenous temperature, large surface area for perfect drying and gas removal, increased bulk density for proper extruder feeding.
      5. Warm cutting - preheated material allows shortest possible extrusion length for melting with minimal thermal history.
      6. Largest buffering volume for extruder compensates fluctuating input conditions.
      7. Patented TVEplus® design - melt filtration takes place upstream of extruder degassing: melting with minimum shearing impact, enhanced filter performance, greater homogenization efficiency, efficient triple degassing.
      8. Including shock sensor, preconditioning unit energy management, melt pressure indicator, melt temperature indicator and air/water heat exchanger for control cabinet.
      9. Liquid cooled bimetal extruder-cylinder.
      10. Preconditioning unit: Ø 1700 mm, stainless steel.
      11. Extruder screw: Ø 140 mm singlescrew 3S-technology.
      12. Main drives: cutter compactor motor 250 kW, extruder motor 315 kW frequency controlled.
    6. Pos. 6: Automatic input slider - used
      1. Model: INS_AUTOM_140_160.
      2. The automatically controlled input slider on the Erema preconditioning unit ensures constant extruder load, optimum operating status, maximum throughput.
    7. Pos. 7: Preparation customer exhaust system - used
      1. Model: SAS_PREP_CUSTOMER_25.
      2. Preparation of the Erema preconditioning unit to allow the use of a moisture and dust reduction system supplied by customer.
      3. Includes a suction ring and piping flange DM 200.
    8. Pos. 8: Water system for vacuum pump - used
      1. Model: BWB_500_S.
      2. Unique Erema design for saving fresh water.
      3. Allows closed circuit of vacuum pump process water.
      4. Screening system: 150 mm (100 mesh).
      5. Water pump: 0.18 kW (at 50 Hz).
      6. Water tank: 420 L stainless steel.
      7. Tubular heat exchanger: stainless steel.
    9. Pos. 9: Erema laser filter - used
      1. Model: LF_2_354.
      2. Continuous high-performance filtration system for the separation of "soft" contaminants such as paper, wood, aluminium, copper, foreign polymers, etc. from contaminated plastic melt.
      3. The new scraper star is a considerable boost to efficiency; thanks to its innovative scraper geometry and the new directly connected discharge channels any contaminants are lifted from the screen immediately and forwarded to the coaxial discharge screw.
      4. The contaminants are removed under control and with a minimum of melt via this likewise optimised discharge system.
      5. The scraper and discharge screw speeds depend on the pressure and are controlled fully automatically ("constant pressure operation").
      6. Continuous, faster removal of contaminants through self-cleaning filter system with rotating scraper star for screen cleaning.
      7. Increased separation capacity and lowest melt losses.
      8. Less labour required thanks to long screen change intervals.
      9. Additional distributor ring to protect screen, scraper star and discharge system.
      10. Easier, faster knife removal thanks to quick-changing tool.
      11. For demanding filtration tasks.
      12. Screen diameter: 350 mm.
      13. Number of screens: 2.
      14. Total filter area: 1,470 cm² cleaned by 6 scrapers.
    10. Pos. 10: Set die face pelletising system - used
      1. Model: SET_HGU_244D_2010_W7_1000_M15.
      2. The Erema die face pelletising system converts the polymer melt into high quality uniform and dry pellets.
      3. Pos. 10.1: Hot die face pelletiser - used
        1. Model: HG_244D.
        2. Hot die face cutter with direct drive technology.
        3. The even melt flow through circular arranged melt channels allows cutting to a steady and uniform pellet shape.
        4. The melt which comes out from the heated die face is cut off by rotating knives and centrifugal forces push the pellets produced outward in a rotating water ring.
        5. This water ring flows through the stainless steel housing without direct contact to the die and ensures a perfect pellet cooling and transporting.
        6. Drive: patented floating AC direct drive with lifetime lubrication.
        7. Knife pressure: automatic setting - pneumatic.
        8. Die plate: 1 included.
        9. Knife head: 1 included.
        10. Die plate made of hardened tool steel and long-term nitrided to >1000 HV.
      4. Pos. 10.2: Pellet dewatering screen - used
        1. Model: GS_2010_1000.
        2. Enhanced process water separation unit with oversize drying screen.
        3. Pellet and water contact surfaces made of stainless steel or aluminium.
        4. Elongated basin with easy-lift filter screen and new pump-suction filter.
        5. Easy cleaning during production: one-hand removal & insert of filter screen, quick removal & insert of suction filter, inclined base for self-cleaning.
      5. Pos. 10.3: Water pump station - used
        1. Model: WPS_700.
        2. Consisting of: water pump, heat exchanger, control valve.
      6. Pos. 10.4: Pellet drying centrifuge
        1. Model: not specified.
        2. Component of the pelletising system.
