NovaStar, TC105, Toilet Paper and Kitchen Towel Production Line, 2200mm Width, 3 Layers, with Embossing and Gluing
Scroll to zoom
100%
Description
Overview
Automatic tissue paper rewinding machine
Automatic paper cutting machine
Paper packing machine
Paper tube machine

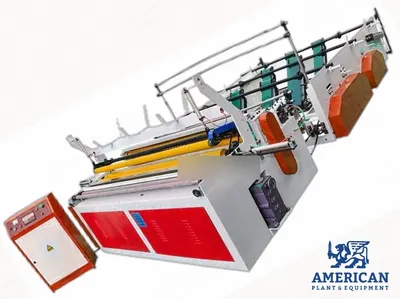

Rewinding Machine
Incorporate international new PLC computer programming technology, frequency conversion speed regulation, automatic electronic brake, touch man-machine interface operating system, using coreless rewinding molding system.
PLC is used in automatic rewinding, automatically send the finished product, immediately reset the rewinding, automatic trimming, spraying glue, sealing synchronization. Instead of the traditional waterline trimming, the new trimming and sticking technology is realized, and the finished product has a 10mm-20mm paper tail, which is easy to open and use. No paper end loss is achieved, thus reducing costs.
PLC is used to tighten and loosen the finished product in the rewinding process to solve the phenomenon of loose paper core caused by long-term storage of the finished product.
The cylinder is automatically loaded, and the paper holder is the frame, which can be separated from the main machine head.
The size of the paper roll, the degree of softness and hardness, the function of the paper tube can be adjusted.
Frame material: channel steel machine head material: square steel threading shaft: seamless steel wire cutter side bearing seat and fixed frame: solid cast iron stability. Automatic drop tube function.
Product name: rewinding machine
Original paper width: 2200mm
External diameter of original paper: 1200mm
Programmable controller: PLC computer programming
Process capability: at 150 to 280 m/min
Paper back rack: 3 layers
Motive power: 4 to 7.5kW
Machine weight: 2.8t
Machine size: 6000 x 3650 x 1750 mm

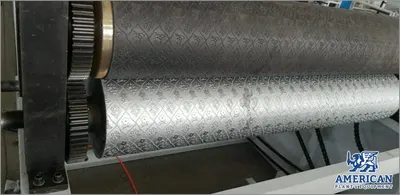

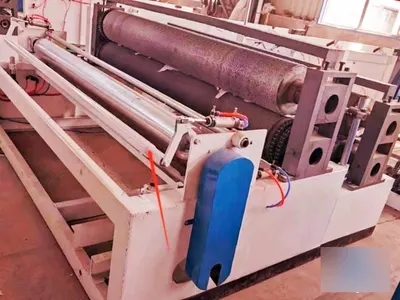

Embossing
Gluing compound device

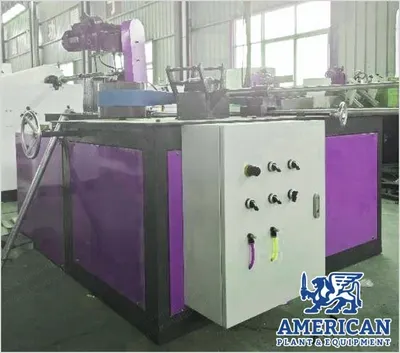

Paper Cutting Machine
This device can realize the roll flattening after cutting, the cutting surface smoother, incorporate PLC programming control, large screen with man-machine interface operation, the device has accurate servo control feeding length, electromechanical integration control and other international advanced technology.
It can automatically detect each key action, has perfect fault information system, make the whole production line to achieve the best working state.
Raw material width: ≤2200mm (customize available)
Cutting speed: 150 to 180 times per min
Cutting precision: ±1mm
Cutting range: ≤400mm length; 60 to 130mm diameter (customize available)
Total power: 6kW
Voltage: 480V 60Hz
Machine weight: 1800kg
Machine size: 1.8 x 3.65 x 1.1m

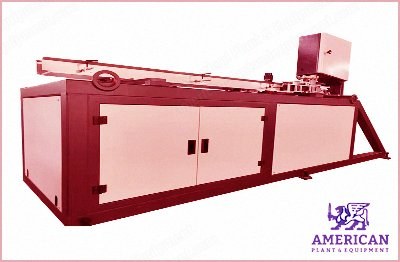

Packaging Machine
This machine integrates automatic paper feeding, automatic material sorting, bagging and sealing. The machine is connected with the front-end rotary and automatic paper cutting machine to realize on-line continuous production, only need manual bagging, and the finished product is automatically sent out after packaging.
The machine incorporates the servo motor control mode: push paper into the bag, with the material sorting and mining machine servo motor structure, simplify the adjustment steps. The gas consumption is saved, and the problem of unstable operation affected by the air supply in the use of the packaging machine is solved.
The use of advanced PLC computer programming control, LCD text display parameters, parameter setting is simple.
The machine incorporates high-speed heating device, water cooling control, heating sealing speed, more accurate temperature control, more effective protection of heating wire and temperature tape.
Length x width x height: 4500 x 3750 x 1350
Supply voltage: 480V 60Hz
Air pressure: 0.5 to 0.8MPa (customer's own)
Packing speed: 5 to 10 packs/min single layer, 3 to 5 packs/min double
Roll height: 80 to 120mm single layer, 80 to 100mm double layer
Roll diameter: 80 to 130mm
Length: 300 to 650mm
Number of paper rows: 2 rows
Packing layer number: single layer and double layer
Sealing width: 260mm
Heat seal: 1.5kW (instant operation)

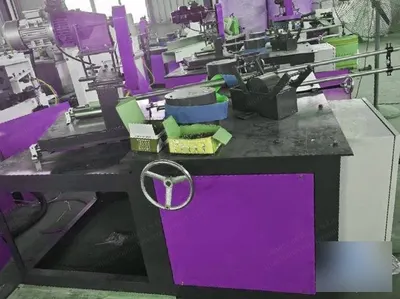

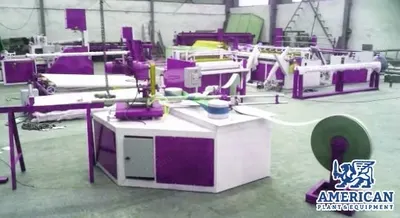

Paper Tube Making Machine
Simple, compact and stable design concept.
Production use reference: chemical fiber paper tubes, various packaging composite cans, various small industrial paper core tubes.
The production of spiral paper tubes is completed from gluing, winding, to cutting as required.
The main body is made of thick heavy steel plate after CNC cutting and welding, the frame is stable and not easy to deform, and the vibration is small.
Equipped with CNC synchronous cutting system.
Equipped with the whole paper supply rack, glue coating rack, paper guide device integrated linkage device, full electric regulation.
Modular electrical layout design, easy to use, maintenance, repair more convenient and scientific.
Sheet number: 2 layers
Inner diameter of paper tube: 30~50mm (customized according to customer needs)
Gluing method: single side gluing
Roll out tube speed: 3~15 m/min
Speed control: electromagnetic speed control
Cutting method: single round knife without resistance cutting
