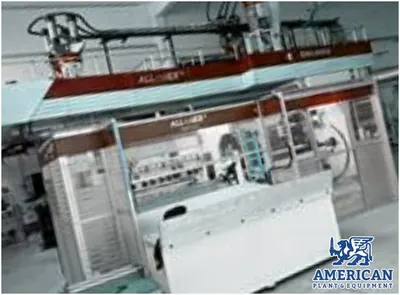

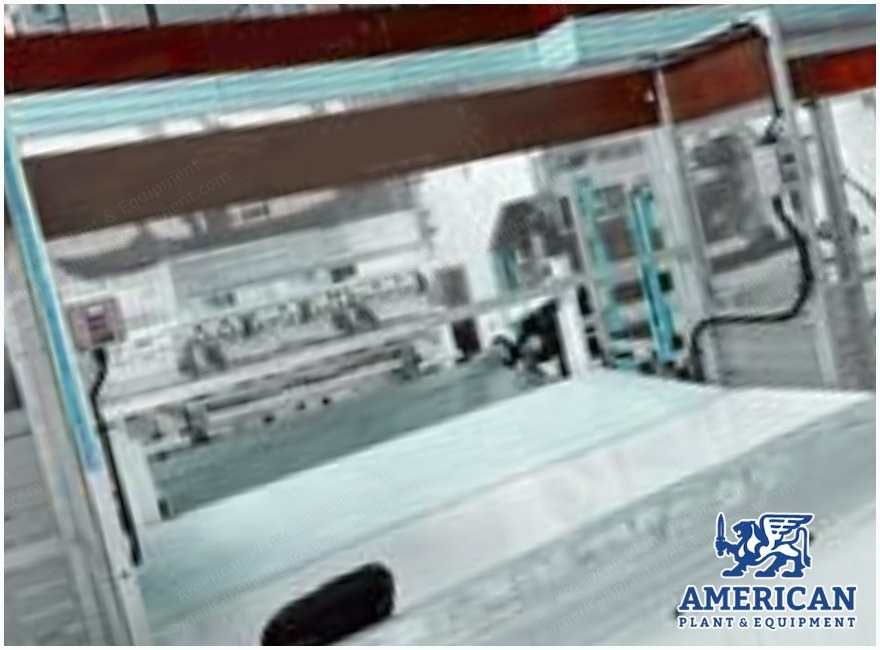

Colines, Allroll EX 1500, 2018, 5 Layers, 1500mm Film Width, 1100kg/h Output

Colines, Allroll EX 1500, 2018, 5 Layers, 1500mm Film Width, 1100kg/h Output

Description

  1. Overview
    1. Manufacturer: Colines
    2. Model: Allroll Ex 1500
    3. Year: 2018
    4. Number of layers: 5
    5. Film structure: ABCBD
    6. Material: Stretch film LLDPE
    7. Film width: 1500 mm
    8. Speed: 500 m/min
    9. Output: 1100 kg/h

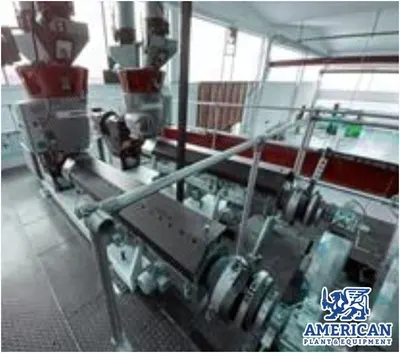

  2. Extruders

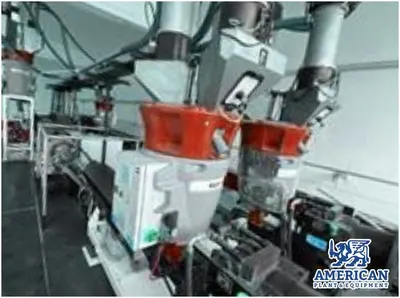

    1. Extruder 1 layer A: screw diameter 80 mm, main motor 135 kW AC motor, gravimetric dosers Grado 2 comp
    2. Extruder 2 layer B: screw diameter 110 mm, main motor 220 kW AC motor, gravimetric dosers Grado 4 comp
    3. Extruder 3 layer C: screw diameter 55 mm, main motor 50 kW AC motor, gravimetric dosing unit Grado 2 comp
    4. Extruder 4 layer D: screw diameter 55 mm, main motor 50 kW AC motor, gravimetric dosing unit Grado 2 comp
  3. Head and Chill Roll
    1. Head: make Cloren, vacuum box, edge pinning
    2. Chill roll unit: main chill roller diameter 1400 mm
  4. Control and Rewinder
    1. Thickness control system: automatic electronic system
    2. Rewinder: turret with 3 shafts, 25 sec cycle time, available with 2 inch shafts for hand reels and 3 inch for machine and jumbo reels
